Mitsubishi LANCER EVOLUTION-V 1998

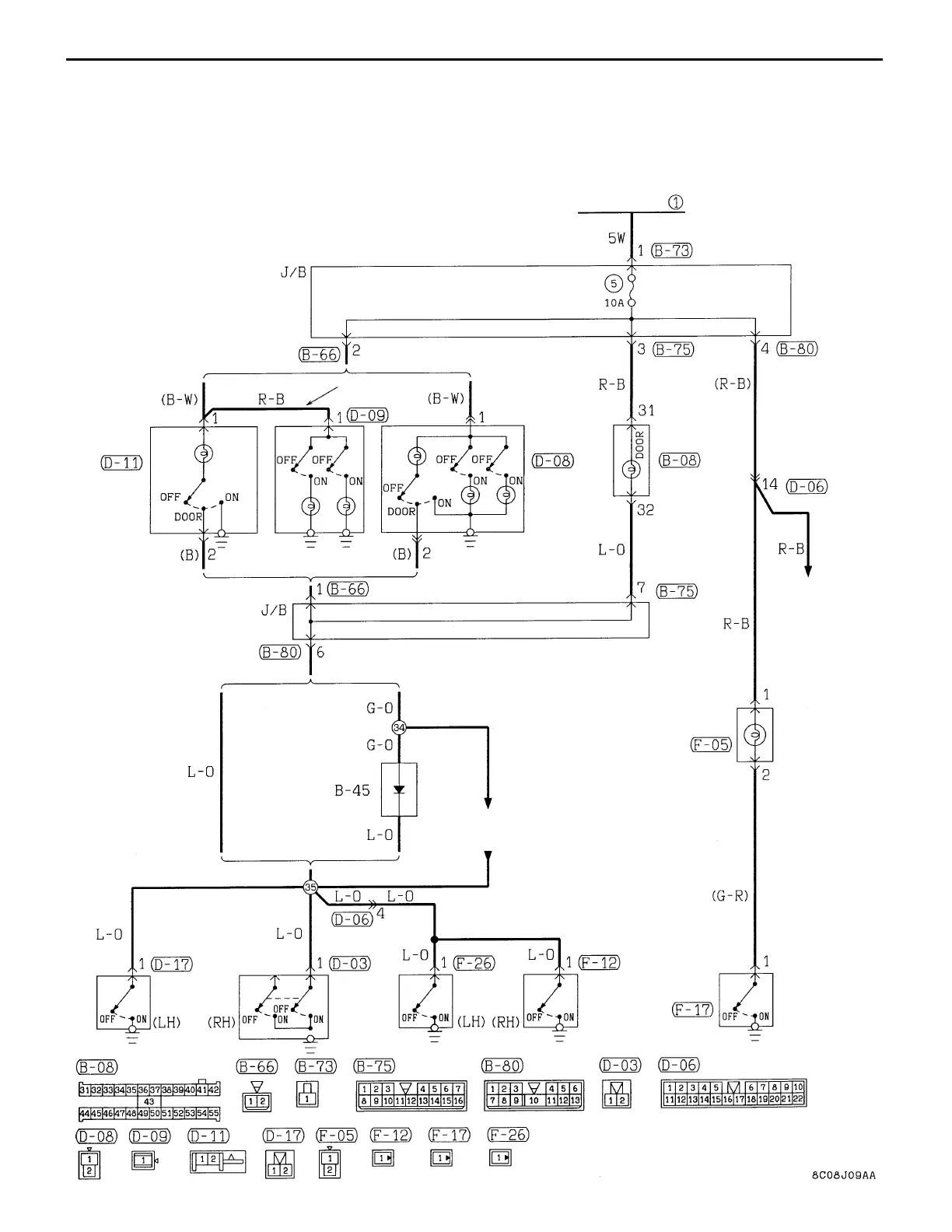

CIRCUIT DIAGRAM – Room Lamp and Luggage Compartment Lamp
FUSIBLE LINK
VEHICLES WITHOUT
SUNROOF
VEHICLES WITH
SUNROOF
VEHICLES WITH
MAP LAMP
ROOM
LAMP
ROOM
LAMP
COMBINATION
METER
MAP LAMP
DEFOGGER
VEHICLES WITHOUT KEYLESS
ENTRY SYSTEM
VEHICLES WITH KEYLESS
ENTRY SYSTEM
DIODE
LUGGAGE
COMPARTMENT
LAMP
CENTRAL DOOR LOCKING
SYSTEM <VEHICLES WITH
KEYLESS ENTRY SYSTEM>
FRONT
DOOR
SWITCH
REAR
DOOR
SWITCH
LUGGAGE
COMPARTMENT
LAMP SWITCH
C-36
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
