MANUAL TRANSMISSION OVERHAUL – Input Shaft
22B-20

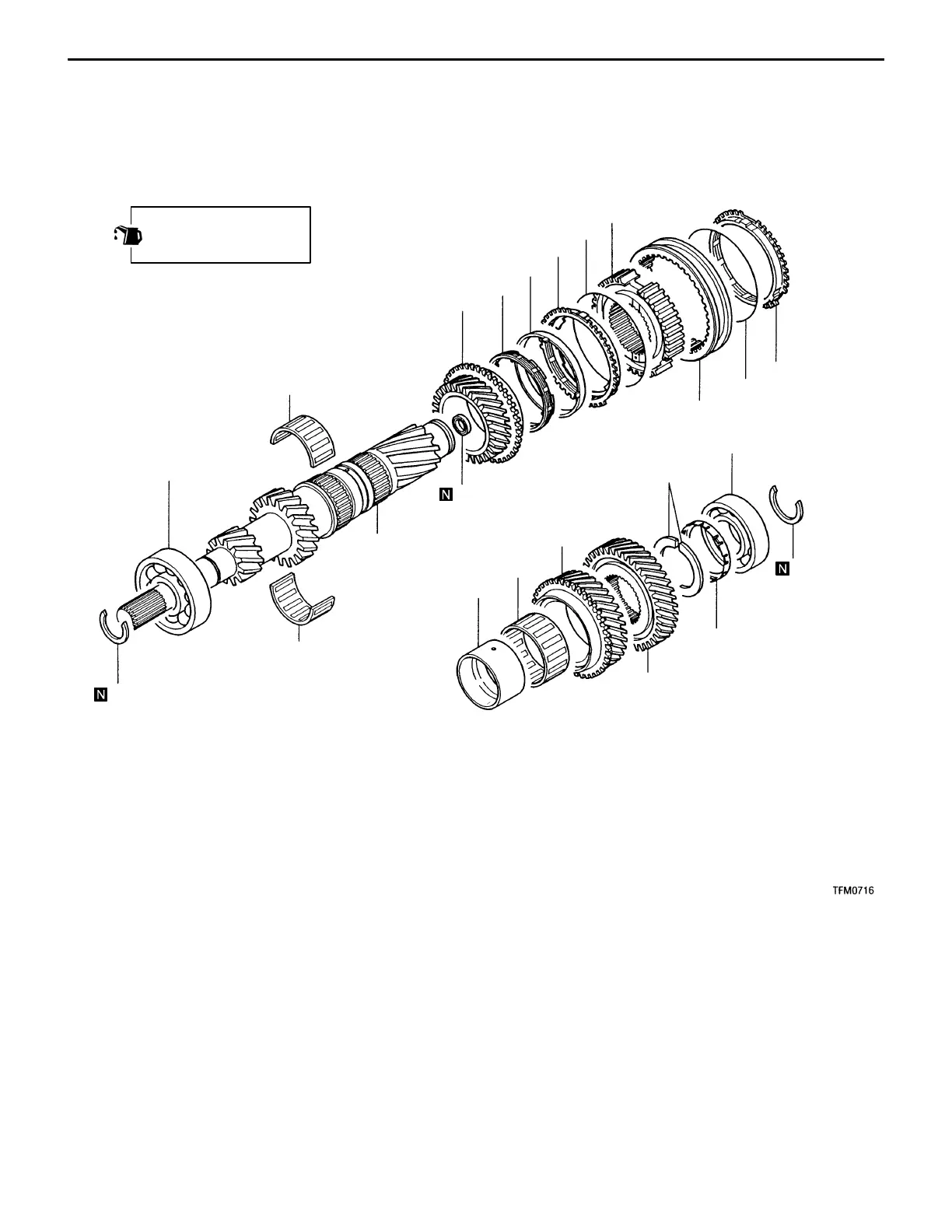

INPUT SHAFT
DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
9
8
10
Apply gear oil to all
moving parts before
installation.
21
19
11
12
14
13
15
16
17
18
20
18
22
Disassembly steps
"MA 1. Snap ring
AA""LA 2. Ball bearing
AB""KA 3. Thrust plate stopper
"JA 4. Thust plate
AC""IA 5. 5th speed gear
6. 4th speed gear
7. Needle roller bearing
AD""HA 8. 4th speed gear sleeve
9. Synchronizer ring
"GA 10. Synchronizer spring
"FA 11. Synchronizer sleeve
"EA 12. 3rd-4th speed synchronizer hub
13. Outer synchronizer ring
"DA 14. Synchronizer spring
15. Synchronizer cone
16. Inner synchronizer ring
17. 3rd speed gear
18. Needle roller bearing
"CA 19. Snap ring
AE""BA 20. Ball bearing
"AA 21. Oil seal
22. Input shaft
