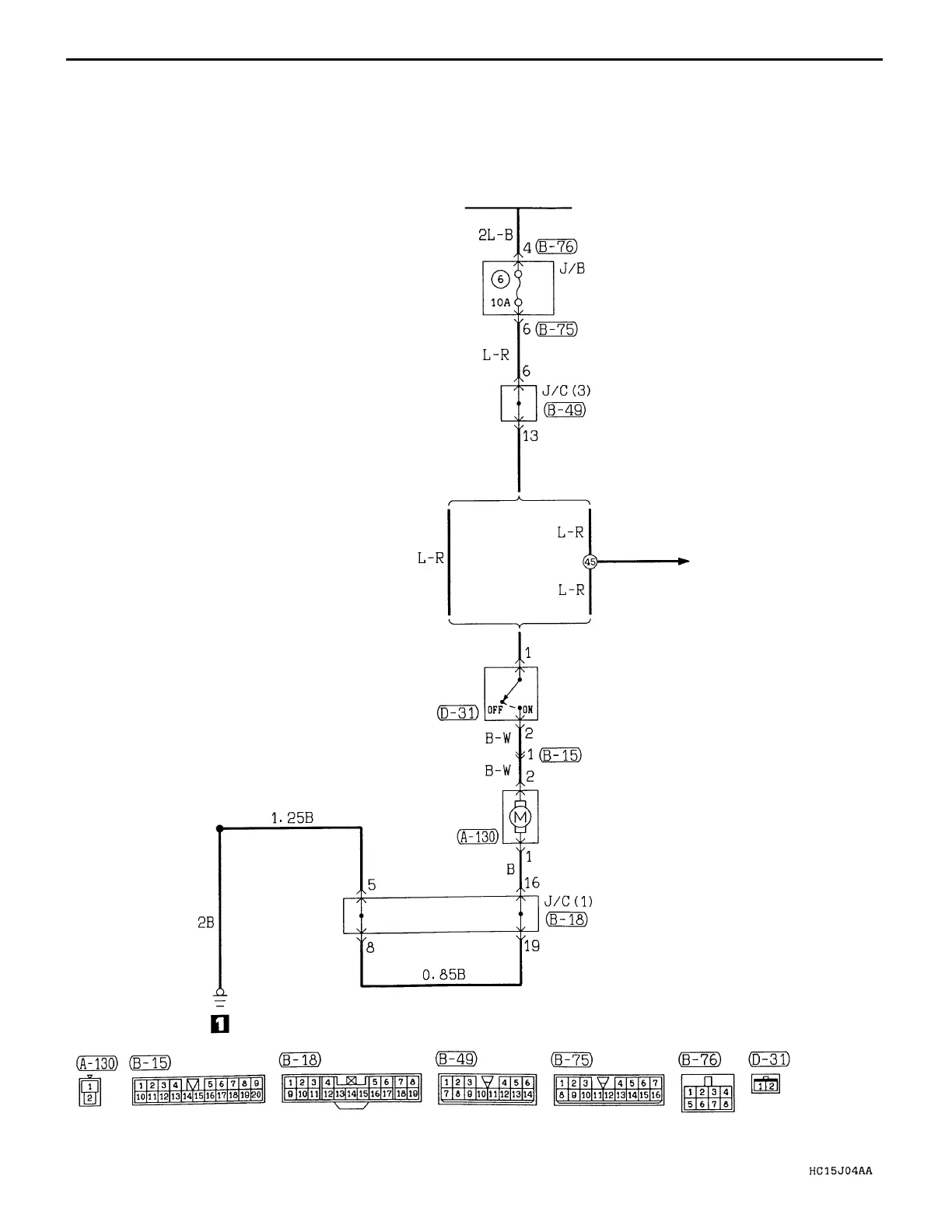

CIRCUIT DIAGRAM – Intercooler Water Spray System
IGNITION
SWITCH (IG2)
VEHICLES WITHOUT
ABS AND AYC
VEHICLES WITH
ABS OR AYC
• ACTIVE YAW CONTROL
SYSTEM
• ANTI-LOCK BRAKE
SYSTEM
WATER
SPRAY
SWITCH
WATER
SPRAY
MOTOR
B-94
INTERCOOLER WATER SPRAY SYSTEM
