Mitsubishi LANCER EVOLUTION-V 1998

MANUAL TRANSMISSION OVERHAUL – Transmission
22B-13
TRANSMISSION
DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
Unit: Nm {kgf@m}
18 {1.9}
69 {7.0}
69 {7.0}
18 {1.9}
69 {7.0}
3.9 {0.4}
32 {3.3}
32 {3.3}
3

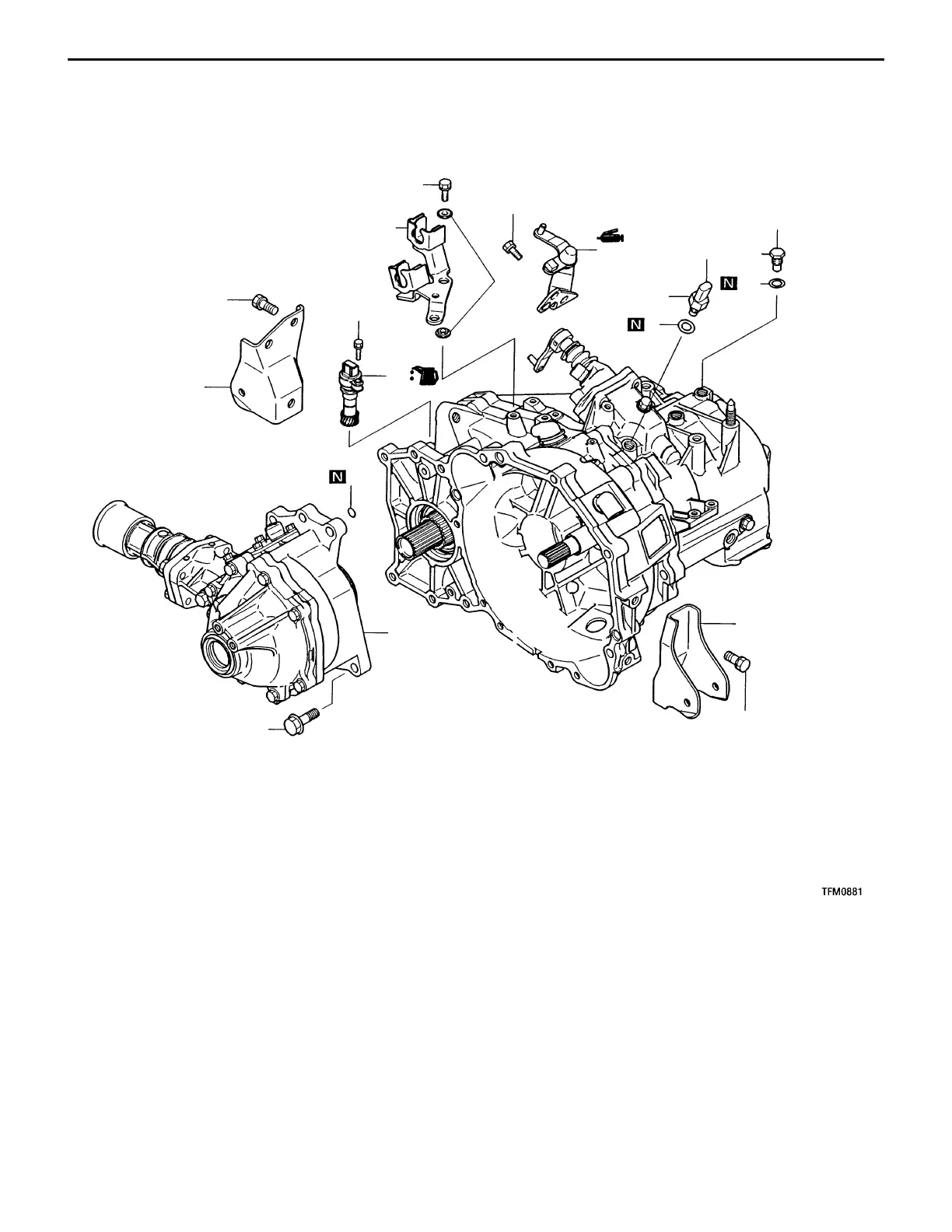

Disassembly steps
1. Transfer
"JA 2. O-ring
3. Roll stopper bracket
4. Insulator washer
5. Shift cable bracket
"IA 6. Select lever
"HA 7. Speedometer gear
8. Back-up lamp switch
9. Gasket
10. Plug
11. Gasket
