BODY – Fender
42-3
FENDER
<EVOLUTION-V>
REMOVAL AND INSTALLATION
Caution
A rust preventive treatment has been applied to the
washers marked with * to prevent contact corrosion
between aluminum and metal of different kind. Be
sure to these special washers.
Pre-removal and Post-installation Operation
(1) Front Bumper Removal and Installation
(Refer to GROUP 51.)
(2) Front Turn Signal Lamp Removal and Installation
(3) Side Air Dam Removal and Installation
(Refer to GROUP 51 – Aero Parts.)
Butyl rubber tape:
PAND-690E or equivalent
1
2
3
1

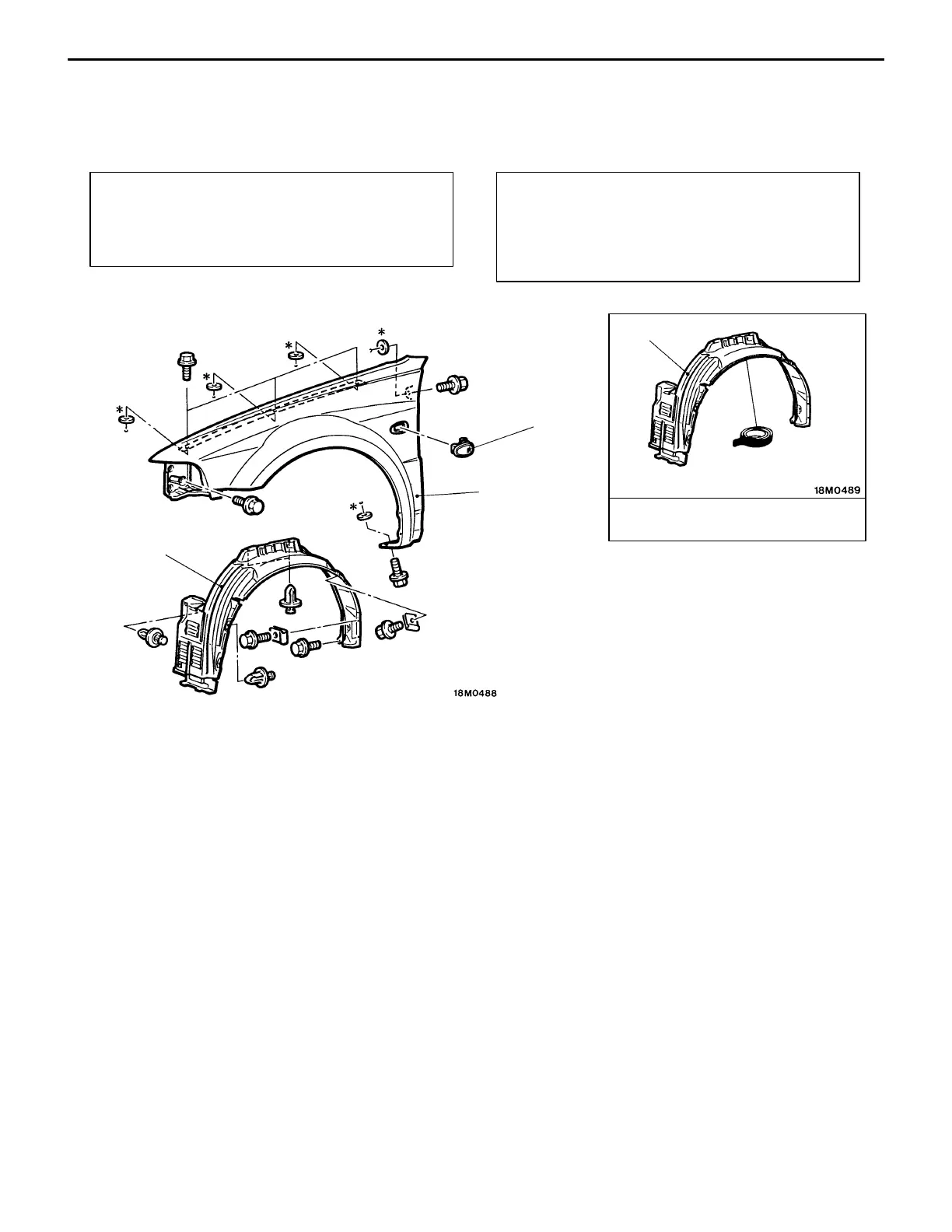

Removal steps
1. Splash shield
AA""AA 2. Side turn signal lamp
3. Overfender
To Next Page
