MANUAL TRANSMISSION – On-vehicle Service
22A-3
ON-VEHICLE SERVICE
1. TRANSMISSION OIL CHECK
(1) Remove the oil filler plug.
(2) Oil level should be at the lower portion of the filler plug
hole.
(3) Check that the transmission oil is not noticeably dirty,
and that it has a suitable viscosity.
(4) Tighten the filler plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}
2. TRANSMISSION OIL REPLACEMENT
(1) Remove the drain plug to drain oil.
(2) Tighten the drain plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}
(3) Remove the filler plug and fill with specified oil till the
level comes to the lower portion of filler plug hole.
Transmission oil
Specified oil:
MITSUBISHI genuine “Dia-Queen” multi gear oil
<75W/85W>
Quantity: 2.8 dm
3
(2.8 ȏ)
(4) Tighten the filler plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}
3. TRANSFER OIL CHECK
(1) Remove the oil filler plug.
(2) Oil level should be at the lower portion of the filler plug
hole.
(3) Check that the transmission oil is not noticeably dirty,
and that it has a suitable viscosity.
(4) Tighten the filler plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}
4. TRANSFER OIL REPLACEMENT
(1) Remove the drain plug to drain oil.
(2) Tighten the drain plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}
(3) Remove the filler plug and fill with specified oil till the
level comes to the lower portion of filler plug hole.
Transfer oil
Specified oil:
MITSUBISHI genuine “Dia-Queen Super” hypoid
gear oil (GL-5)
Quantity: 0.62 dm
3
(0.62 ȏ)
(4) Tighten the filler plug to the specified torque.
Tightening torque: 32 Nm {3.3 kgf@m}

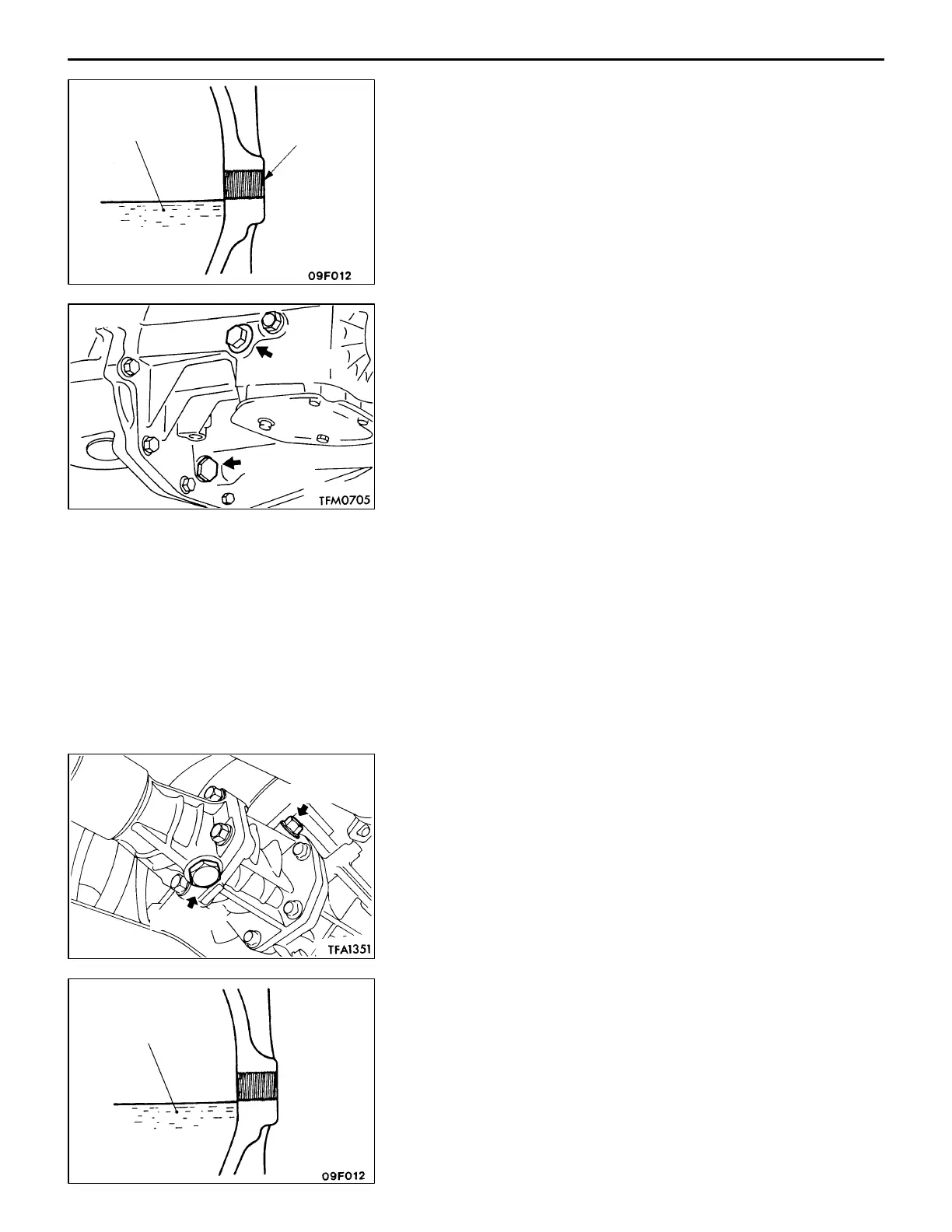

Transmission oil
Filler plug hole
Filler plug
Drain plug
Filler plug
Drain plug
Transfer oil
To Next Page
