ENGINE – Oil Pan
11-13

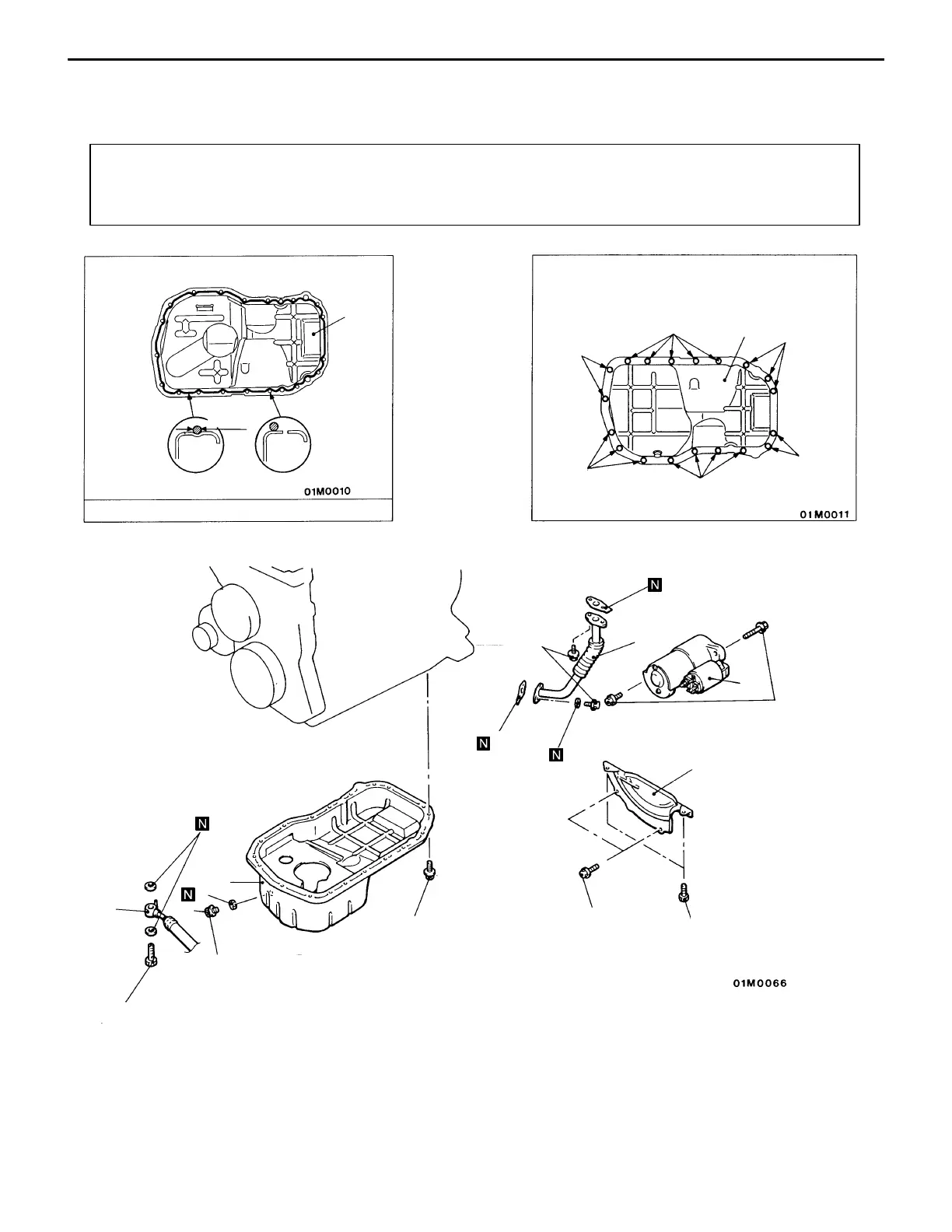

OIL PAN
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
(1) Under Cover Removal and Installation
(2) Front Exhaust Pipe Removal and Installation
(Refer to GROUP 15.)
(3) Oil Level Gauge Removal and Installation
(4) Engine Oil Draining and Supplying
A: 6 × 8 mm
B: 6 × 10 mm
Identification of bolt location
Semi-drying sealant: THREEBOND 1207D
φ 4 mm
Bolt
hole
Groove
8
A
B
B
8
B
B
B
3
7
8
6
4
5
1
2
39 {4.0}
39 – 44 {4.0 – 4.5}
7 {0.7}
26 {2.6}
30 {3.1}
9 {0.9}
Washer
assembled bolt
9 {0.9}
Flange bolt
10 {1.0}
Unit: Nm {kgf@m}
Removal steps
1. Starter
2. Oil return pipe
"BA 3. Oil return pipe gasket
4. Engine oil cooler return pipe
5. Bell housing cover
6. Drain plug
"AA 7. Drain plug gasket
AA" 8. Oil pan
To Next Page
