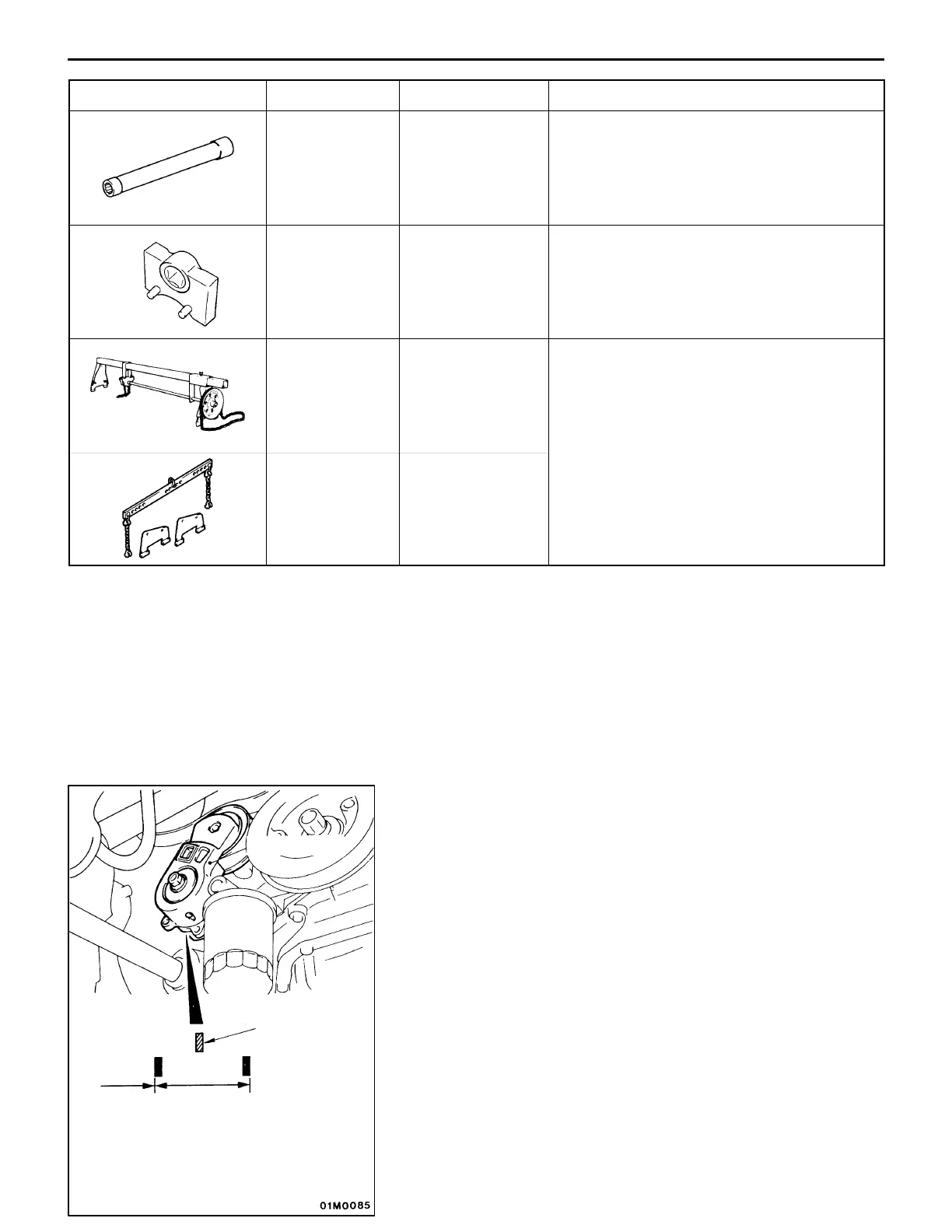

ENGINE – Special Tools / Engine Adjustments
11-4
Tool UseNameNumber
MB991654 Cylinder head bolt
wrench
Removing and reinstalling the cylinder head
bolt
MD998767 Tensioner pulley
socket wrench
Timing belt tension adjustment
Recommended
tool MZ203826
by Anzen
Jidosha or
MZ203827 by
Banzai
Engine lifter Supporting the engine assembly during
removal and installation of the transmission
MD991453 Engine hanger
assembly
ENGINE ADJUSTMENTS
1. DRIVE BELT TENSION CHECK
NOTE
Use of the auto tensioner eliminates the need for belt tension
adjustment. Check that the indicator mark on the auto
tensioner is in the range of A shown.
If it is outside the specified range (i.e., in range of B shown),
replace the drive belt.
(For the removal and installation of the drive belt, refer to
P.11-9.)
Auto tensioner
Indicator mark
A
B
