CLUTCH – Clutch Pedal
21-4

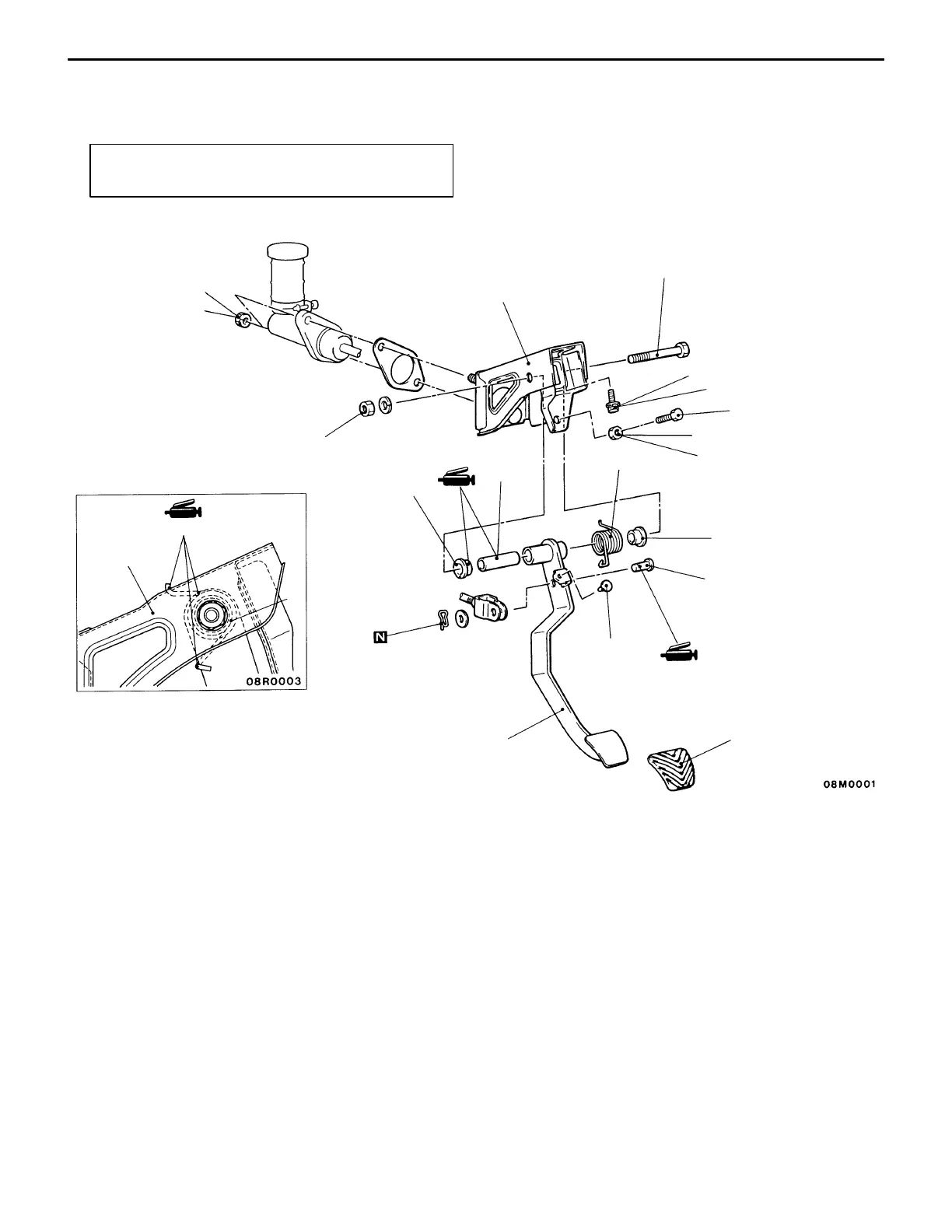

CLUTCH PEDAL
REMOVAL AND INSTALLATION
Post-installation Operation
D Clutch Pedal Adjustment (Refer to P.21-2.)
(Spring installation position)
13
5
Unit: Nm {kgf@m}
13 {1.3}
1
13
4
11
12
2
7
6
8
9
10
6
3
5
24 {2.4}
13 {1.3}
12 {1.2}
Removal steps
1. Clutch master cylinder installation
nut
2. Master cylinder member bracket
installation bolt
3. Clevis pin
4. Bolt
5. Return spring
6. Bushing
7. Pipe
8. Clutch pedal
9. Pedal pad
10. Stopper
11. Adjusting bolt
12. Locking nut
13. Pedal and master cylinder support
member
