Mitsubishi LANCER EVOLUTION-V 1998

REAR AXLE – Torque Transfer Differential <Vehicles with AYC>
27-43
TORQUE TRANSFER DIFFERENTIAL <VEHICLES WITH AYC>

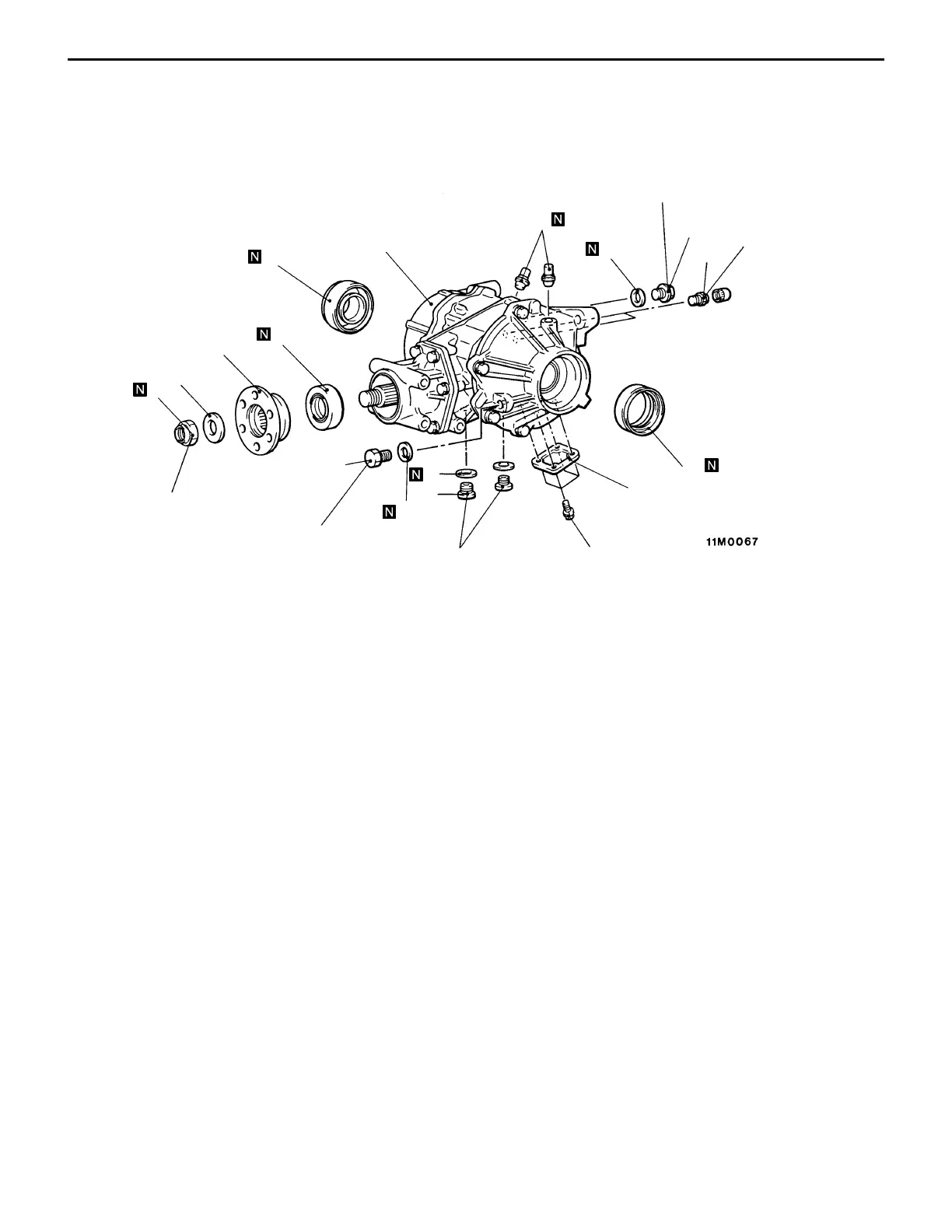

DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Unit: Nm {kgf@m}
186 {19.0}
4
49 {5.0}
49 {5.0}
9 {0.9}
9 {0.9}
49 {5.0}
3
Disassembly steps
1. Drain plug
2. Packing
3. Filler plug
4. Gasket
5. Vent plug
6. Bleeder screw
7. Cover
AA" 8. Self-locking nut
9. Washer
10. Companion flange
11. Oil seal
"BA 12. Oil seal
"AA 13. Oil seal
14. Differential carrier assembly
Caution
(1) The differential carrier assembly is non-main-
tainable.
(2) No foreign matter should be allowed inside and
at the joints of the differential carrier assembly.
