FRONT SUSPENSION – Strut Assembly
33A-4
STRUT ASSEMBLY
REMOVAL AND INSTALLATION
Post-installation Operation
D Front Wheel Alignment Adjustment
(Refer to P.33A-3.)
1
2
3
4
5
6
7
Unit: Nm {kgf@m}
44 {4.5}
108 – 127
{11.0 – 13.0}

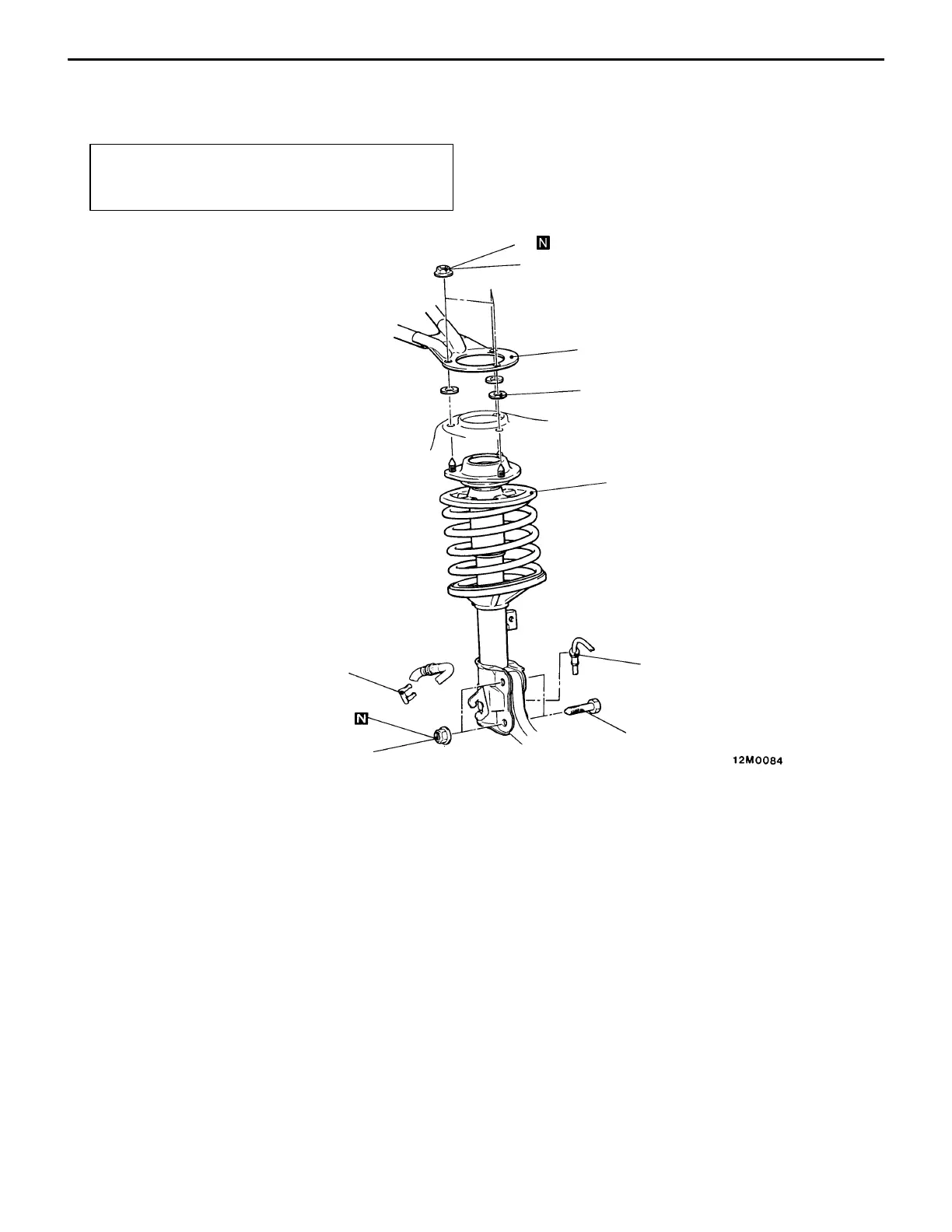

Removal steps
1. Brake hose clamp
2. Front speed sensor bracket
<Vehicles with ABS>
3. Flange nut
4. Strut tower bar
5. Plain washer
AA" 6. Bolts
7. Strut assembly
REMOVAL SERVICE POINT
AA" BOLTS REMOVAL
(1) Suspend the lower arm from the vehicle with wire.
(2) Remove the strut and knuckle connection.
To Next Page
