EXTERIOR – Intercooler & Radiator Water Spray System <EVOLUTION-V>
51-13
INTERCOOLER & RADIATOR WATER SPRAY SYSTEM
<EVOLUTION-V>
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Front Bumper Removal and Installation
(Refer to P.51-4.)
1
2
3
4
5
6
7
8
9
Unit: Nm {kgf@m}
2.5 {0.25}
2.5 {0.25}
1
5
5
5
5
5
5
4
4
2
2
1
4
4
5
4
4
4
4
5
3
1
2

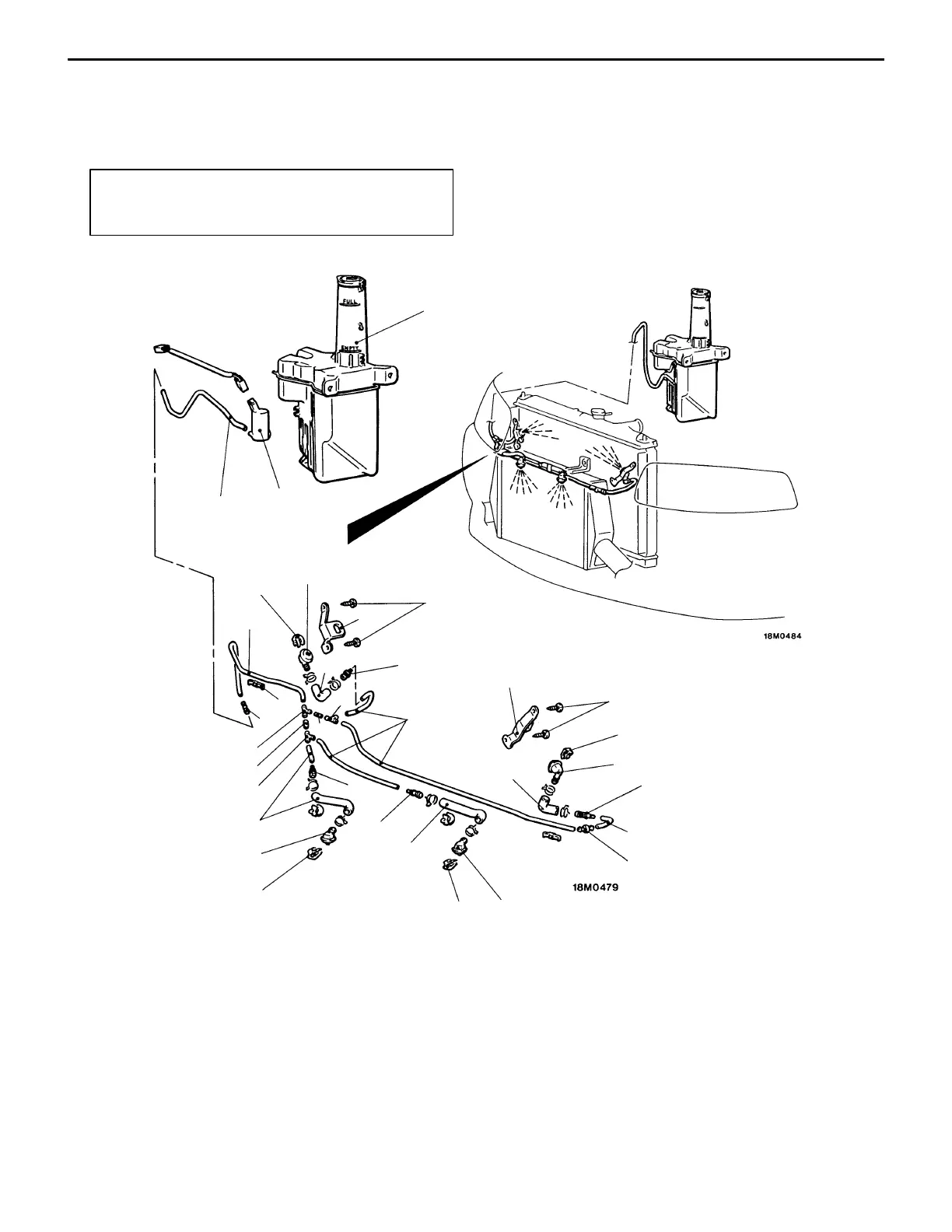

1. Clamp
2. Water spray nozzle
3. Water spray nozzle bracket
"AA 4. Water spray hose
5. Joint
"AA 6. Clip
Water spray motor removal steps
7. Washer tank
8. Water spray hose
9. Water spray motor
NOTE
The conventional service procedures apply for the water
spray switch.
To Next Page
