EXTERIOR – Intercooler & Radiator Water Spray System <EVOLUTION-V>
51-14
INSTALLATION SERVICE POINT

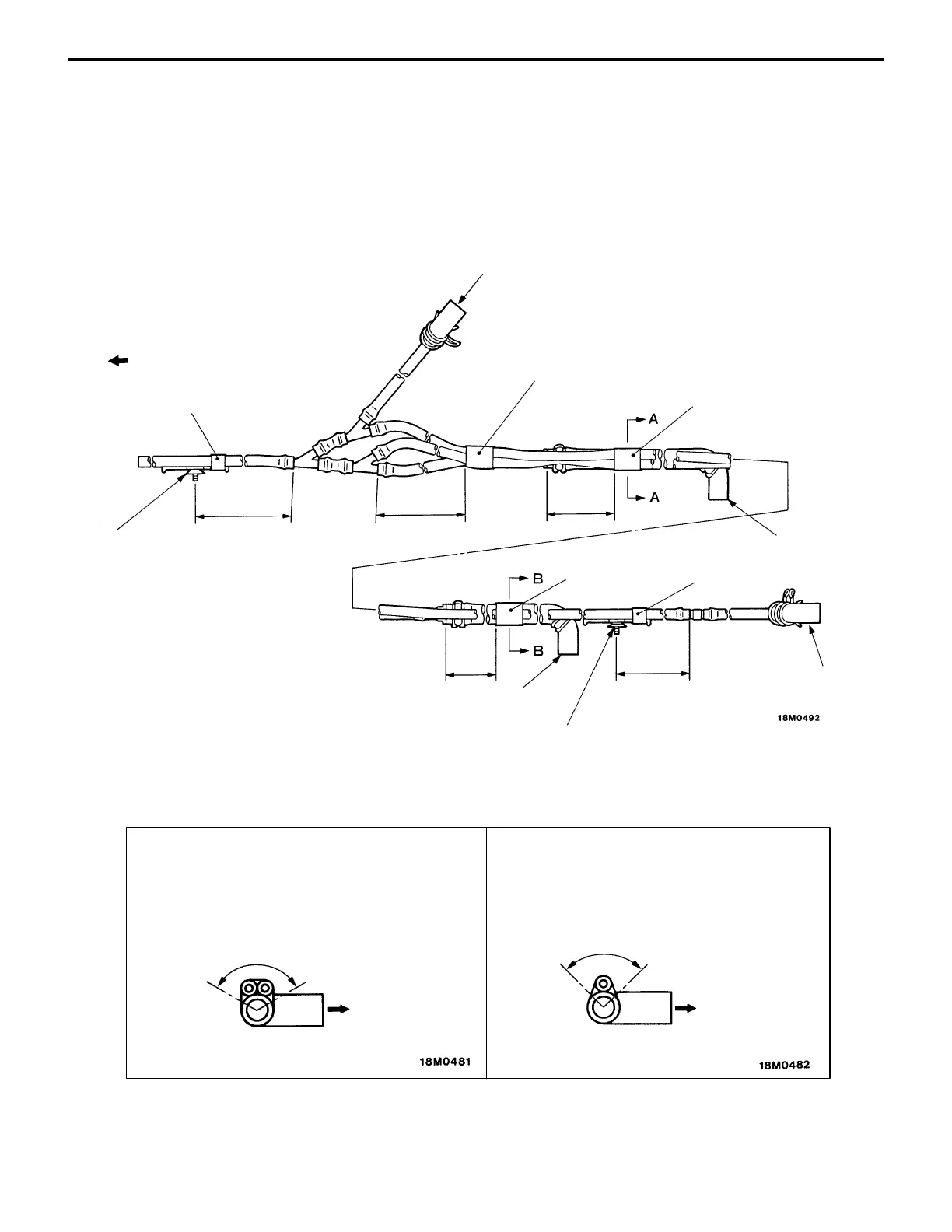

"AA CLIP / WATER SPRAY HOSE INSTALLATION
(1) Tape clips as illustrated.
(2) Tape the water spray hose as illustrated.
(3) Insert the clips positively into the mounting holes.
Washer
tank side
Tape
Connect to radiator nozzle (RH).
Tape (secures three water hoses together)
Tape
Tape
Tape
Tape so that the
clip faces toward
the front of vehicle.
Connect to intercooler
nozzle (RH).
Connect to intercooler
nozzle (LH).
Tape so that the clip faces
toward the front of vehicle.
Connect to radiator
nozzle (LH).
Section A – A Section B – B
Tape and secure so that the two
thin water spray hoses are located
above the thick water spray hose.
Tape and secure so that the thin
water spray hose is located above
the thick water spray hose.
To intercooler
nozzle (RH)
To intercooler
nozzle (LH)
<Top view>
Unit: mm
Fixing range
Fixing range
330 ± 5
50 ± 5
+10
0
60
+10
0
50
60 ± 5
To Next Page
