BODY – Fender / Trunk Lid <EVOLUTION-V>
42-4
REMOVAL SERVICE POINT
AA" SIDE TURN SIGNAL LAMP REMOVAL
Using a flat-tip screwdriver or similar tool, release the lock
from the fender panel and remove the side turn signal lamp.
INSTALLATION SERVICE POINT
"AA SIDE TURN SIGNAL LAMP INSTALLATION
Fit the hook into the fender panel to secure the side turn
signal lamp into position.
TRUNK LID <EVOLUTION-V>
The conventional procedures shall be used except for
followings.
INSTALLATION SERVICE POINT
TRUNK LID TORSION BAR INSTALLATION
(1) Torsion bars are color-coded, as indicated at their center.
Torsion bar <LH> ID color Torsion bar <RH> ID color
White green Orange
(2) Fit the end of the torsion bar into the mounting hole.
(3) As you did during removal, mount the special tool to
the torsion bar and twist the torsion bar to hook it onto
the link; then, hook it onto the holder.
Caution
Make sure that the special tool is positively mounted
to the torsion bar. If the torsion bar comes off the
special tool, it can damage the body and other parts.

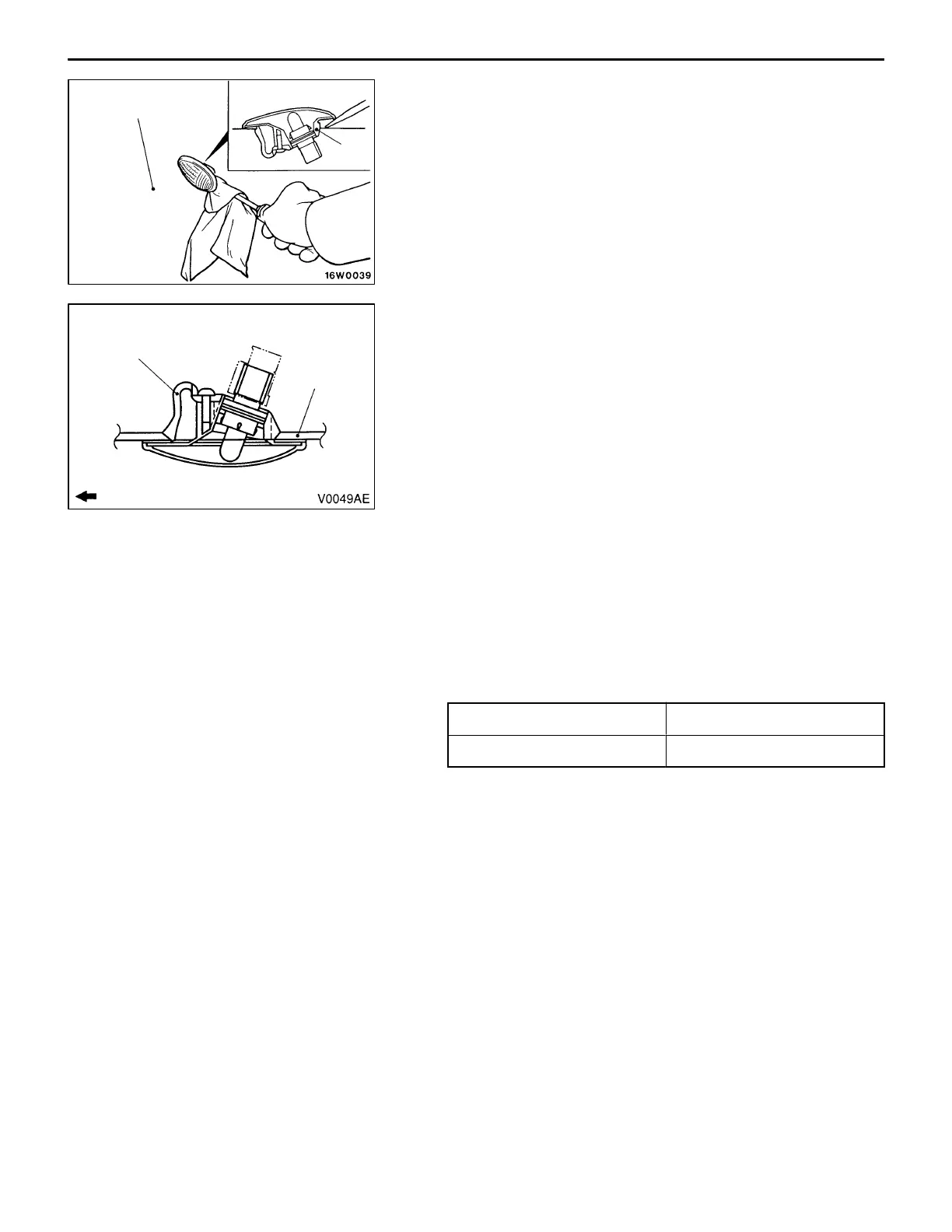

Fender panel
Lock
Hook
Fender panel
Front of vehicle
