– Luggage Compartment
WIRING HARNESS
CONFIGURATION DIAGRAMS
Connector
symbol
F
Glass
antenna
amplifier
C-12

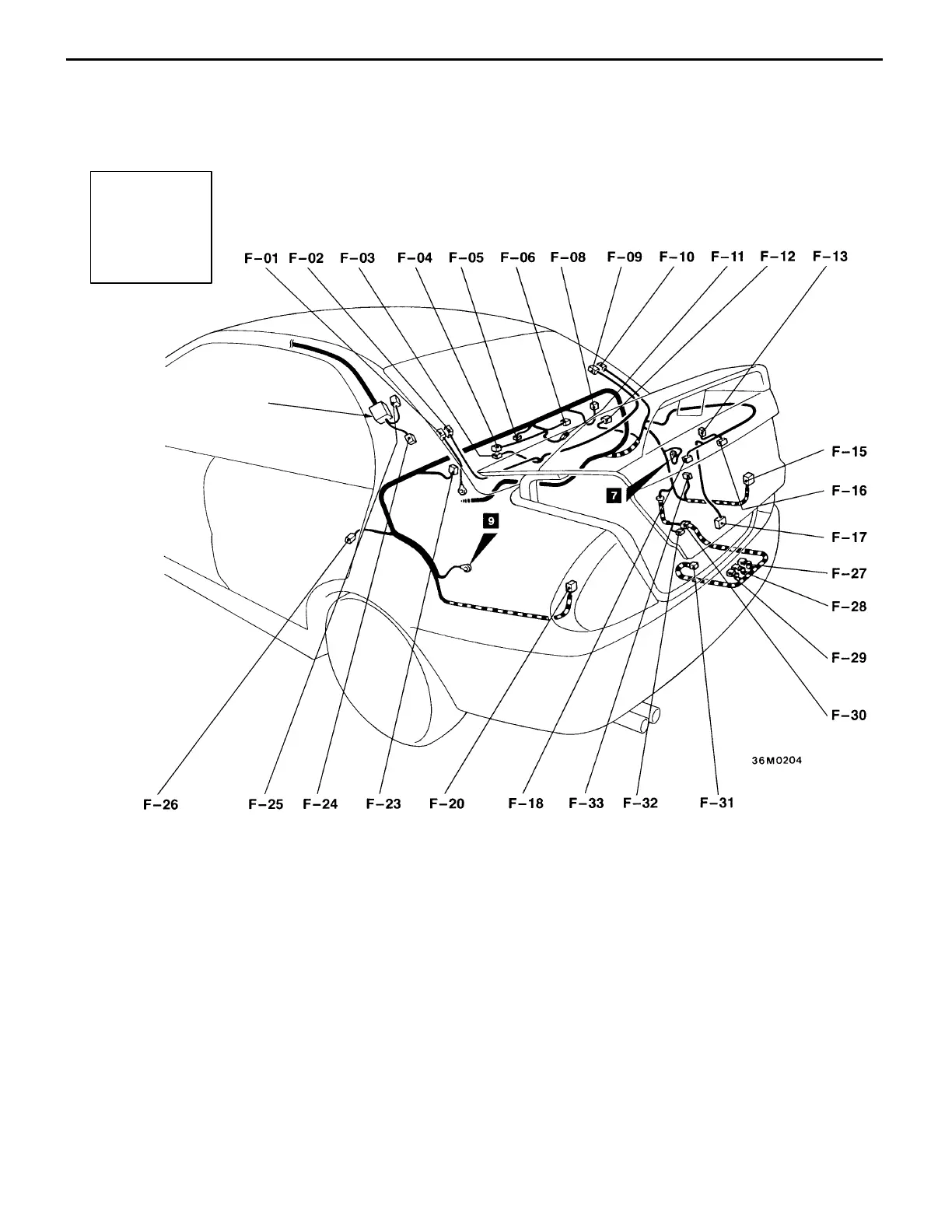

LUGGAGE COMPARTMENT
F-01 (1-B) Defogger (–) <vehicles without choke coil>
F-02 (1-B) Defogger (–) <vehicles with choke coil>
F-03 (2) Choke coil
F-04 (3) Choke coil
F-05 (2) Luggage compartment lamp
F-06 (2) Vacant connector or high mounted stop
lamp (installed on rear shelf)
F-08 (2-B) Rear speaker (RH)
F-09 (1-B) Defogger (+) <vehicles with choke coil>
F-10 (1-B) Defogger (+) <vehicles without choke coil>
F-11 (3) Rear wiper motor
F-12 (1-B) Rear door switch (RH)
F-13 (2) High mounted stop lamp (installed on rear
spoiler)
F-15 (6) Rear combination lamp (RH)
F-16 (2-GR) Licence plate lamp (RH)
F-17 (1-B) Luggage compartment lamp switch
F-18 (2-GR) Licence plate lamp (LH)
F-20 (6) Rear combination lamp (LH)
F-23 (2-B) Rear speaker (LH)
F-24 (1) Glass antenna
<vehicles with diversity glass antenna>
F-25 (1) Glass antenna
F-26 (1-B) Rear door switch (LH)
F-27 (3-B) Proportioning valve <vehicles with AYC>
F-28 (2-B) Direction valve (LH) <vehicles with AYC>
F-29 (2-B) Direction valve (RH) <vehicles with AYC>
F-30 (8-B) Rear harness and AYC harness combina-
tion
F-31 (2-B) Accumulator pressure switch
<vehicles with AYC>
F-32 (2-B) AYC motor
F-33 (6) CD changer
To Next Page
