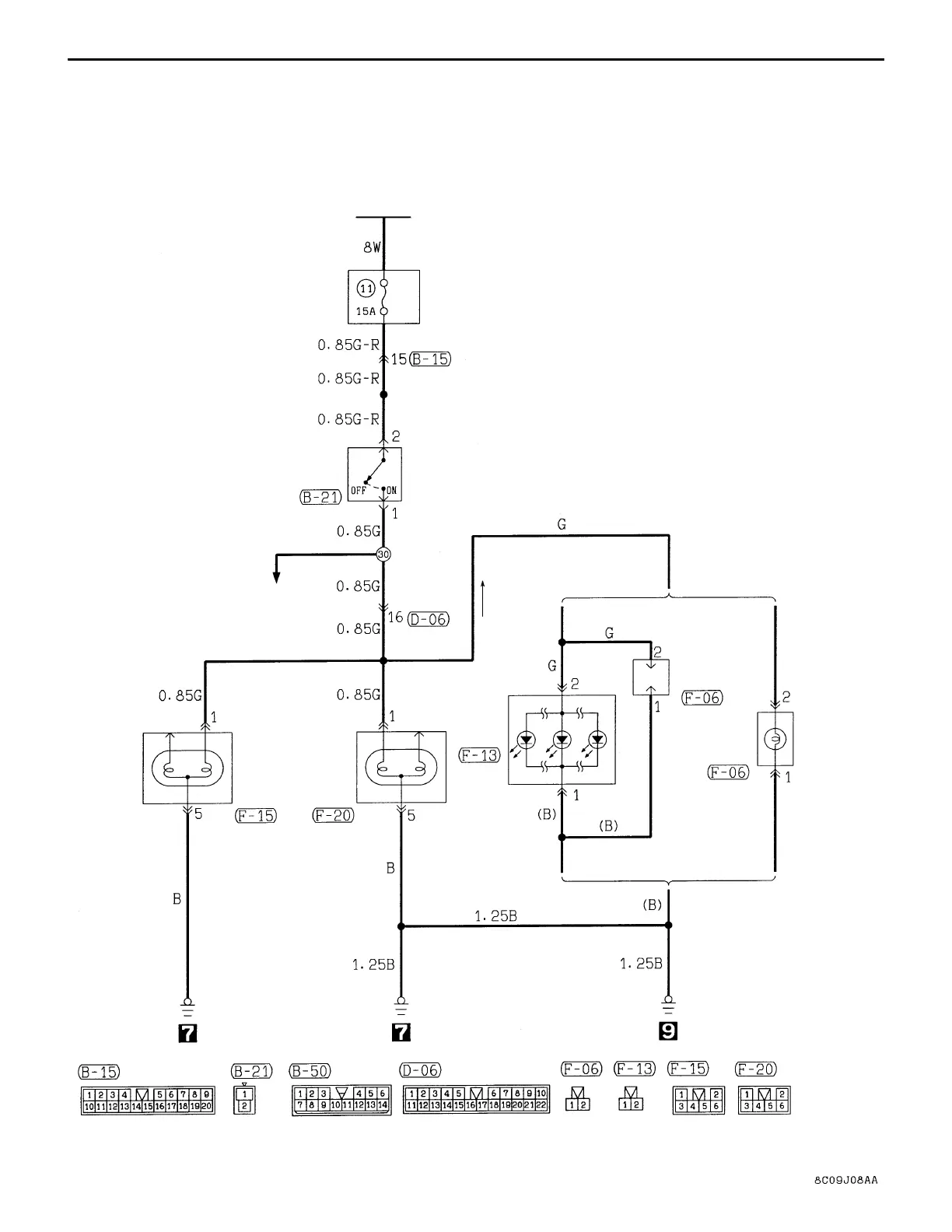

CIRCUIT DIAGRAM – Stop Lamp
BATTERY
DEDICATED
FUSE
STOP LAMP
SWITCH
ANTI-LOCK
BRAKE SYSTEM
INSTALLED ON
REAR SPOILER
INSTALLED ON
REAR SHELF
REAR
COMBINATION
LAMP
(STOP:
RH)
(STOP:
LH)
HIGH
MOUNTED
STOP LAMP
VACANT
CONNECTOR
(SOME
MODELS)
HIGH
MOUNTED
STOP LAMP
C-41
STOP LAMP
