MANUAL TRANSMISSION OVERHAUL – Transfer
22B-49
TRANSFER
DISASSEMBLY AND REASSEMBLY
10
2
11
4
8
7
9
5
3
1
6
Apply gear oil to all
moving parts before
installation.
23 {2.4}
Unit: Nm {kgf@m}

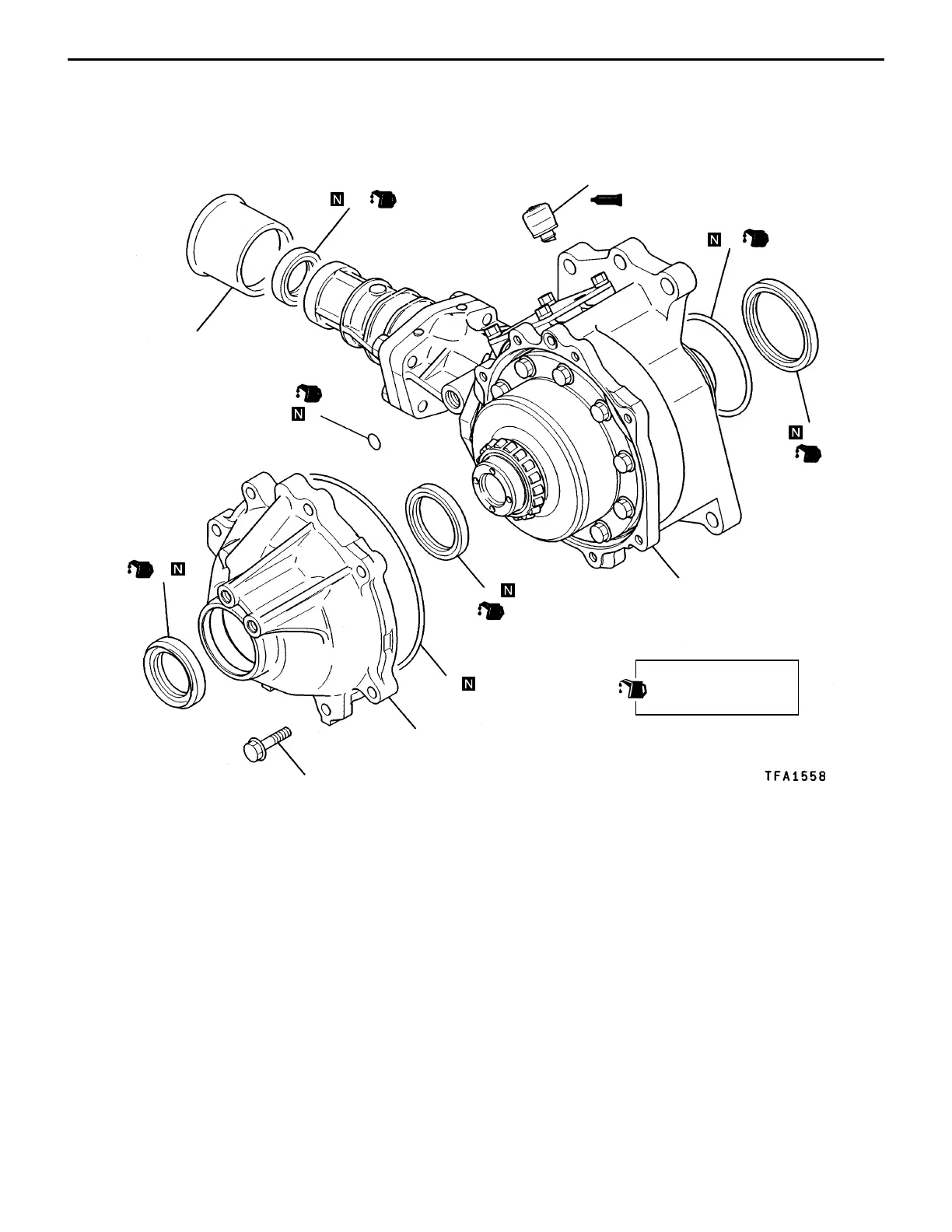

Disassembly steps
"FA 1. Air breather
2. Dust seal guard
"EA 3. Oil seal
"DA 4. Oil seal
"AA 5. O-ring
"AA 6. O-ring
"CA 7. Oil seal
"BA 8. Oil seal
"AA 9. O-ring
10. Transfer cover
11. Transfer
