MANUAL TRANSMISSION OVERHAUL – Center Differential
22B-48

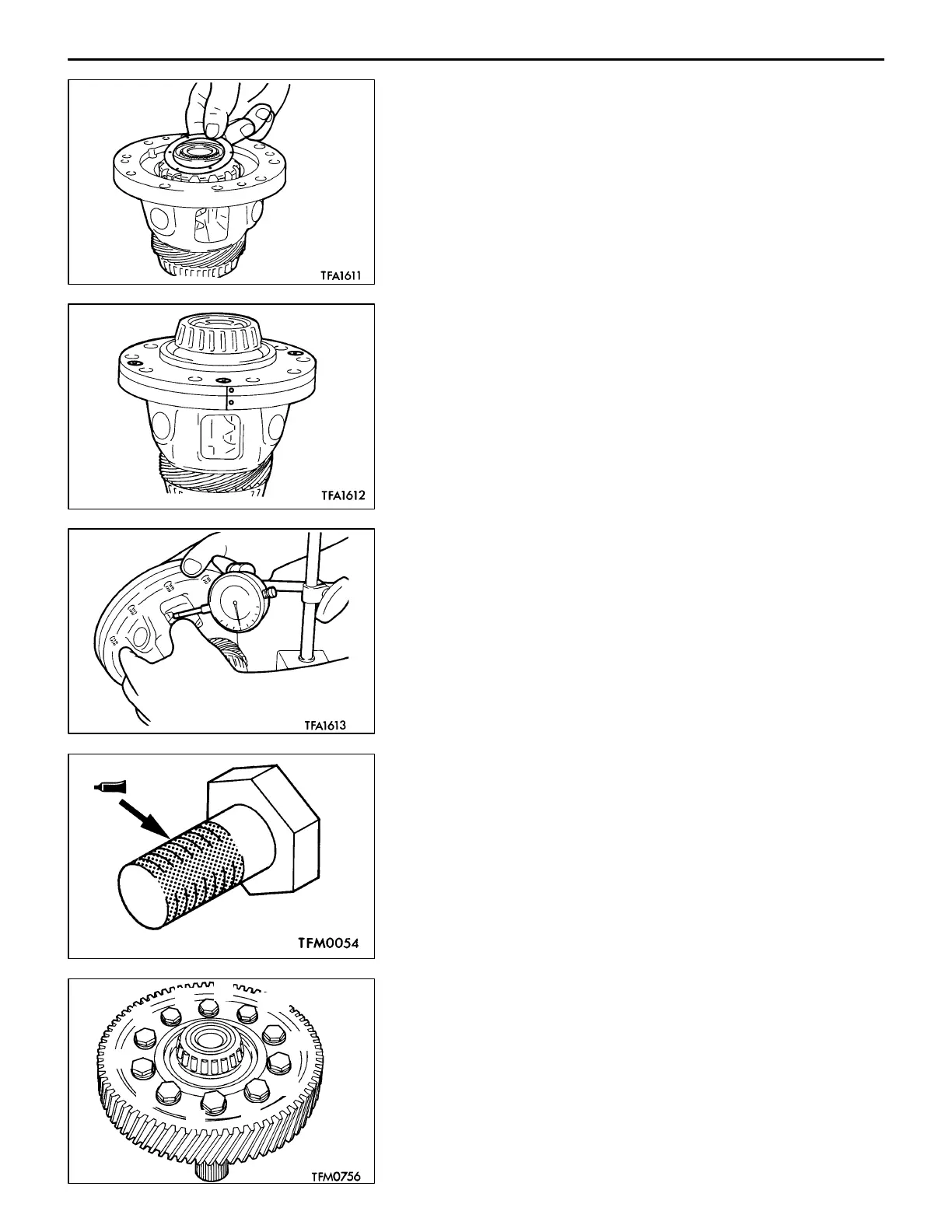

(5) Install the front output shaft to the side gear and fit the
snap ring.
(6) Attach the spacer on the other side gear, then install
the side gear in the center differential case.
NOTE
If a new side gear is to be installed, select a spacer
with medium thickness (0.8 – 0.9 mm).
(7) Install the center differential flange on the case while
aligning the mating marks, then secure it temporarily with
machine screw.
(8) Measure the backlash between the side gear and the
pinion.
Standard value: 0.025 – 0.150 mm
(9) If the measurement deviates from the standard value,
correct the backlash using a spacer of different thickness
and check it again.
NOTE
The backlash must be the same on both sides.
"DA CENTER DIFFERENTIAL DRIVE GEAR
INSTALLATION
(1) Apply sealant to the entire threaded portion of the bolt.
Specified sealant:
THREEBOND 1303 or LOKTITE 648
(2) Tighten the bolts to the specified torque in the illustrated
sequence.
1
8
7
6
5
4
3
2
10
9
To Next Page
