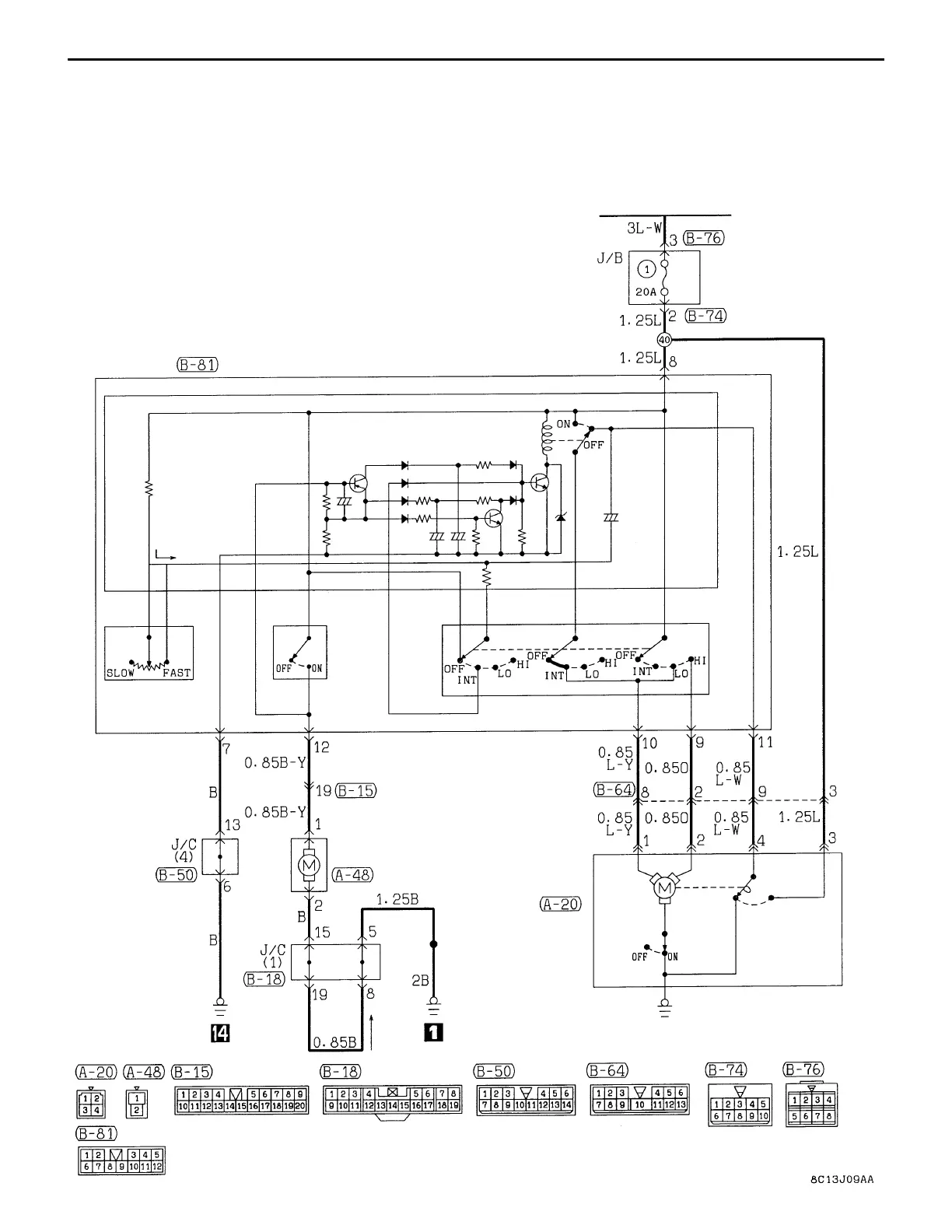

CIRCUIT DIAGRAM – Windshield Wiper and Washer <Intermittent Wiper>
COLUMN
SWITCH
INTERMITTENT WIPER RELAY
IGNITION SWITCH (ACC)
IN CASE OF
OPERATION
INTERVAL
FIXED TYPE
INTERMITTENT
WIPER
VARIABLE INTER-
MITTENT WIPER
CONTROL SWITCH
WINDSHIELD
WASHER
SWITCH
WINDSHIELD
WIPER SWITCH
WINDSHIELD
WASHER
MOTOR
WINDSHIELD
WIPER MOTOR
CIRCUIT
BREAKER
C-61
WINDSHIELD WIPER AND WASHER <INTERMITTENT WIPER>
