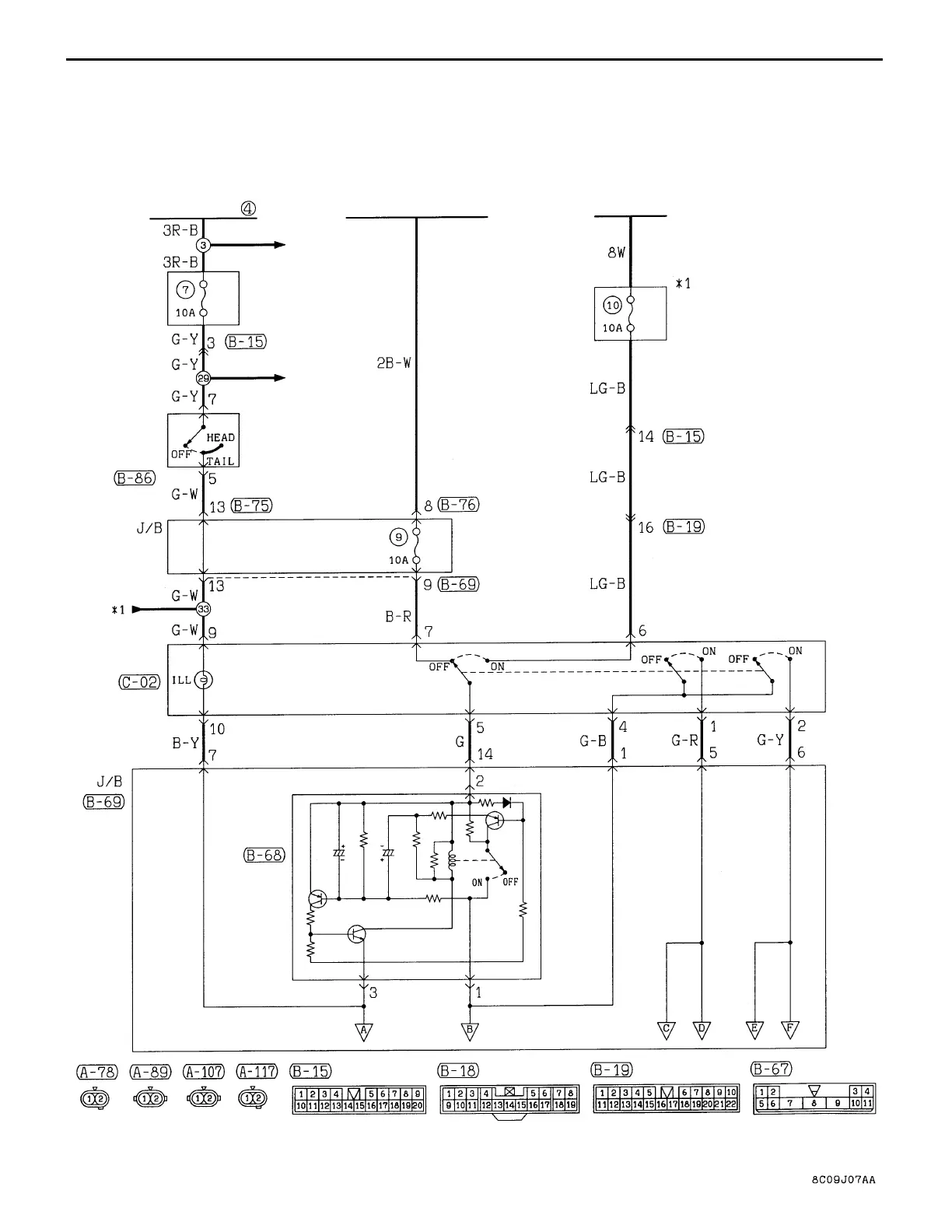

CIRCUIT DIAGRAM – Turn-signal Lamp and Hazard Lamp
FUSIBLE LINK
IGNITION SWITCH (IG1) BATTERY
• CHARGING
SYSTEM
• HEADLAMP
DEDICATED
FUSE
FOG LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
HAZARD
SWITCH
DEDICATED
FUSE
NOTE
:
• CLOCK AND MULTI-
DISPLAY
• CIGARETTE LIGHTER AND
ASHTRAY ILLUMINATION
LAMP
• ELECTRIC RETRACTABLE
REMOTE CONTROLLED
DOOR MIRROR
• FOG LAMP
TURN SIGNAL
AND HAZARD
FLASHER
UNIT
C-38
TURN-SIGNAL LAMP AND HAZARD LAMP
