CIRCUIT DIAGRAM – Centralized Junction
B-25

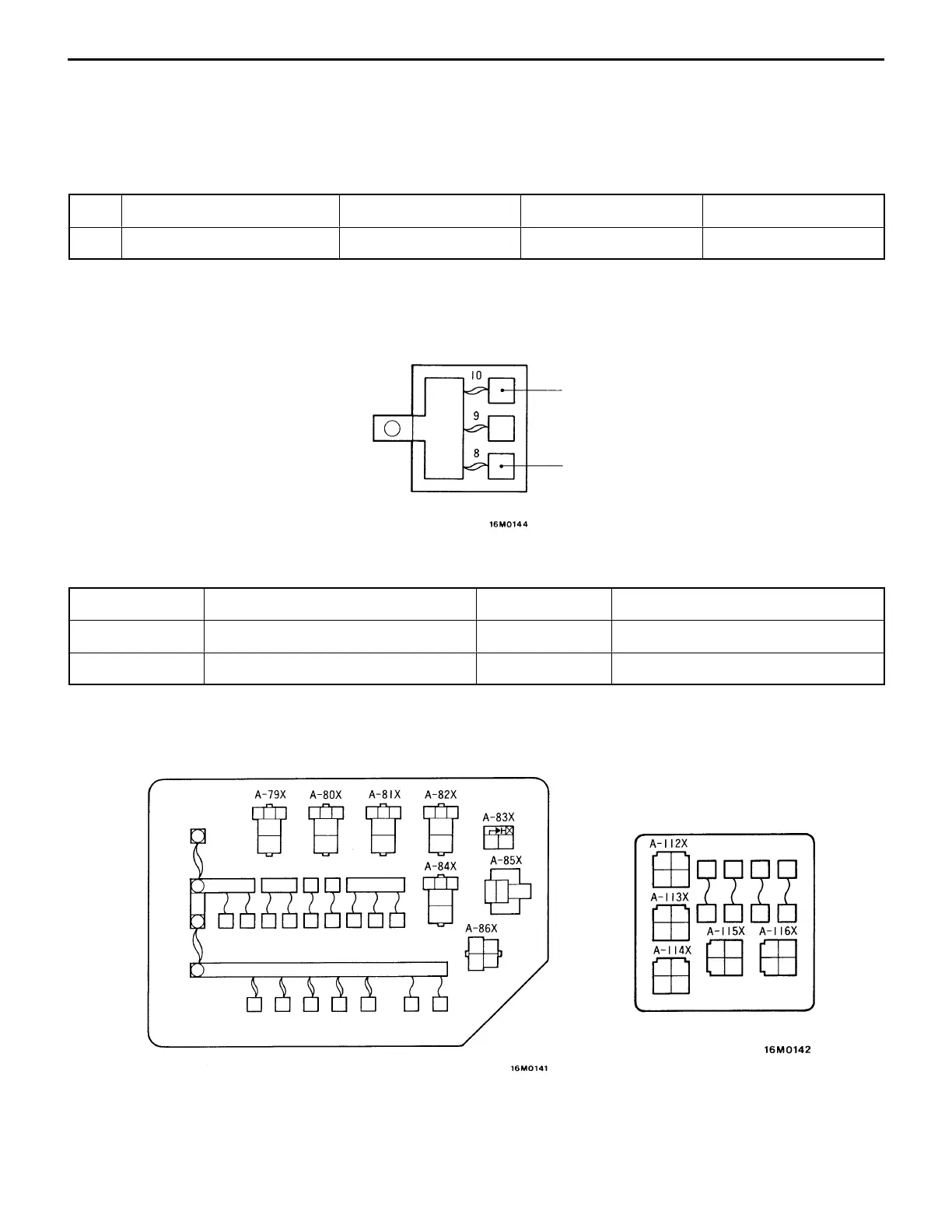

CIRCUIT DIAGRAM
CENTRALIZED JUNCTION
FUSIBLE LINK
No. Circuit protected Type Housing color Rated capacity (A)
10 Active yaw control system Screw-in type Yellow 60
Fuse box directly attached on battery
<Vehicles with AYC>
W-R
R/R-B
CENTRALIZED RELAY
Connector No. Name Connector No. Name
A-82X Radiator fan motor relay (LO) A-113X Condenser fan motor relay (LO)
A-112X Radiator fan motor relay (HI) A-114X Condenser fan motor relay (HI)
Relay box in engine compartment
(A/C relay box)
