INTAKE AND EXHAUST – Air Control Valve
15-8
AIR CONTROL VALVE
REMOVAL AND INSTALLATION
1
Unit: Nm {kgf@m}
22 {2.2}
35 {3.6}
49 {5.0}
24 {2.4}
4 {0.4}
10 – 12 {1.0 – 1.2}
4 {0.4}
10 – 12
{1.0 – 1.2}
24 {2.4}
22 {2.2}
2
3
8
7
6
4
5
12 – 15 {1.2 – 1.5}

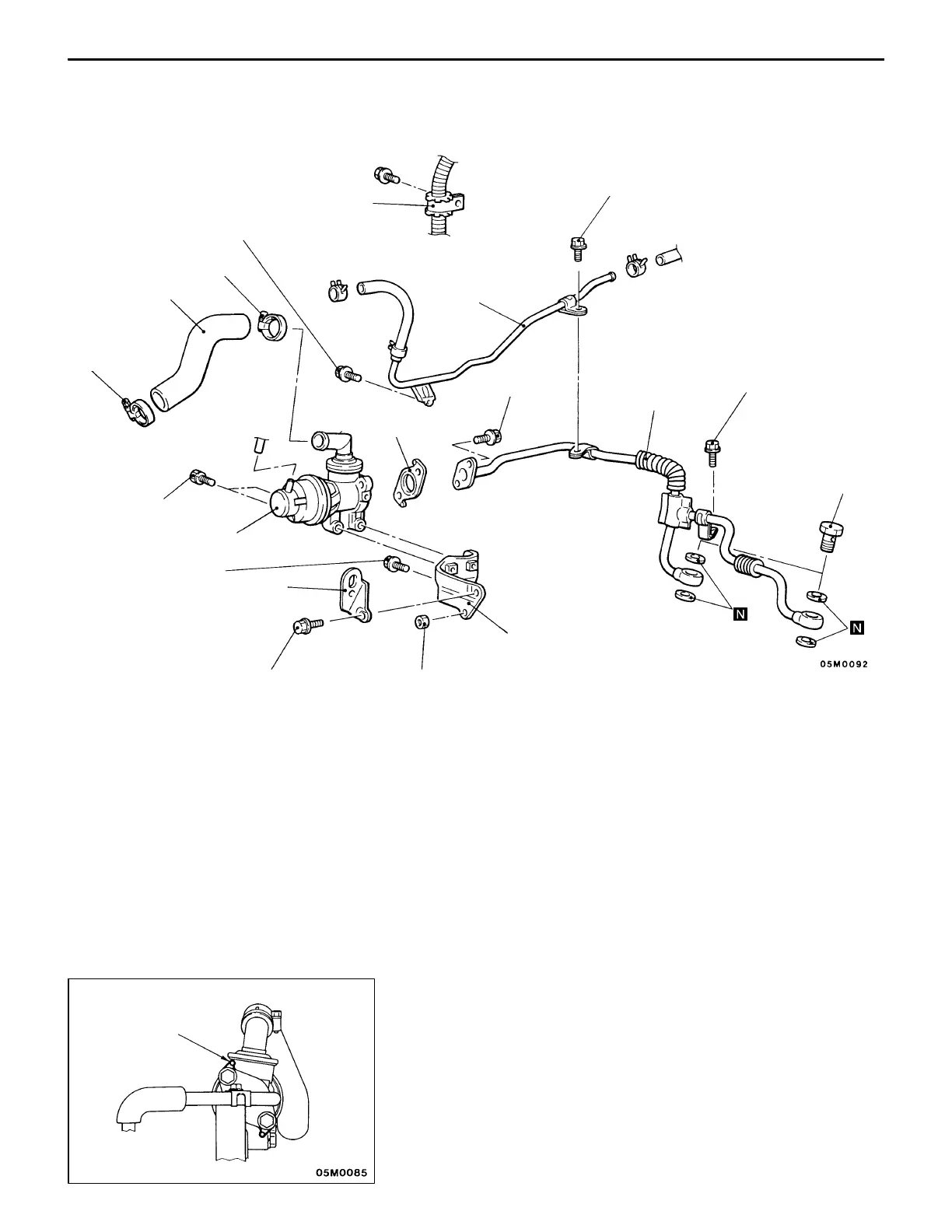

Removal steps
1. Control harness connection
2. Vacuum pipe hose assembly
3. Air pipe assembly
"AA 4. Gasket
5. Air hose
6. Air control valve
7. Engine hanger
8. Air control valve bracket
INSTALLATION SERVICE POINT
"AA GASKET INSTALLATION
Install the gasket so that its protrusion is located as shown.
Protrusion
