Mitsubishi LANCER EVOLUTION-V 1998 User Manual

ENGINE – Timing Belt
11-21

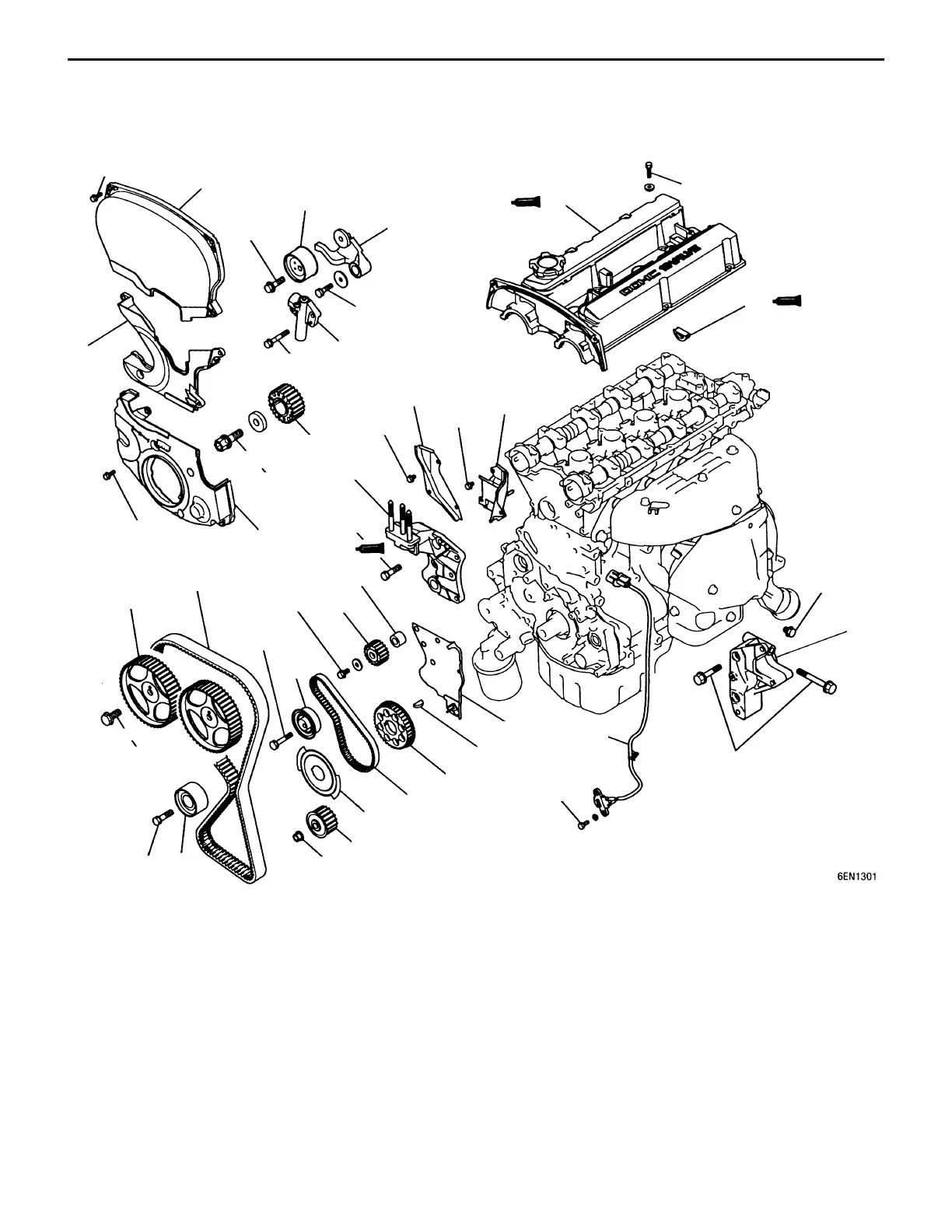

TIMING BELT
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
21
22
23
24
25
26
27
28
20
19
11 {1.1}
11 {1.1}
11 {1.1}
88 {9.0}
49 {5.0}
9 {0.9}
48 {4.9}
54 {5.5}
49 {5.0}
118 {12.0}
9 {0.9}
3.5 {0.35}
49 {5.0}
45 {4.6}
19 {1.9}
30 {3.1}
24 {2.4}
24 {2.4}
Unit: Nm {kgf@m}
Removal steps
1. Front upper cover
2. Front center cover
3. Front lower cover
4. Bracket
AA""LA 5. Timing belt
"KA 6. Tensioner pulley
7. Tensioner arm
"JA 8. Auto tensioner
9. Idle pulley
10. Crankshaft position sensor
AB""IA 11. Oil pump sprocket
AC""HA 12. Crankshaft bolt
AD" 13. Crankshaft sprocket
14. Sensing blade
15. Tensioner B
AE""GA 16. Timing belt B
AF""FA 17. Counterbalance shaft sprocket
"EA 18. Spacer
AG" 19. Crankshaft sprocket B
20. Crankshaft key
"DA 21. Rocker cover
"CA 22. Semi-circular packing
"BA 23. Engine support bracket
AH""AA 24. Camshaft sprocket bolt
25. Camshaft sprocket
26. Timing belt rear right cover
27. Timing belt rear left upper cover
28. Timing belt rear left lower cover
