BASIC BRAKE SYSTEM – Front Brake
35A-7
FRONT BRAKE
REMOVAL AND INSTALLATION
Except for the followings, use the same procedure as that
for conventional disc brake.
INSTALLATION SERVICE POINT
"AA DISC BRAKE ASSEMBLY INSTALLATION
Follow the conventional procedures except the standard value
for the disc brake drag force.
Standard value (disc brake drag force):
51 N {5.2 kgf} <EVOLUTION-IV>
69 N {7.0 kgf} <EVOLUTION-V>
DISASSEMBLY AND REASSEMBLY
NOTE
On EVOLUTION-IV, follow the same procedure as conventional.

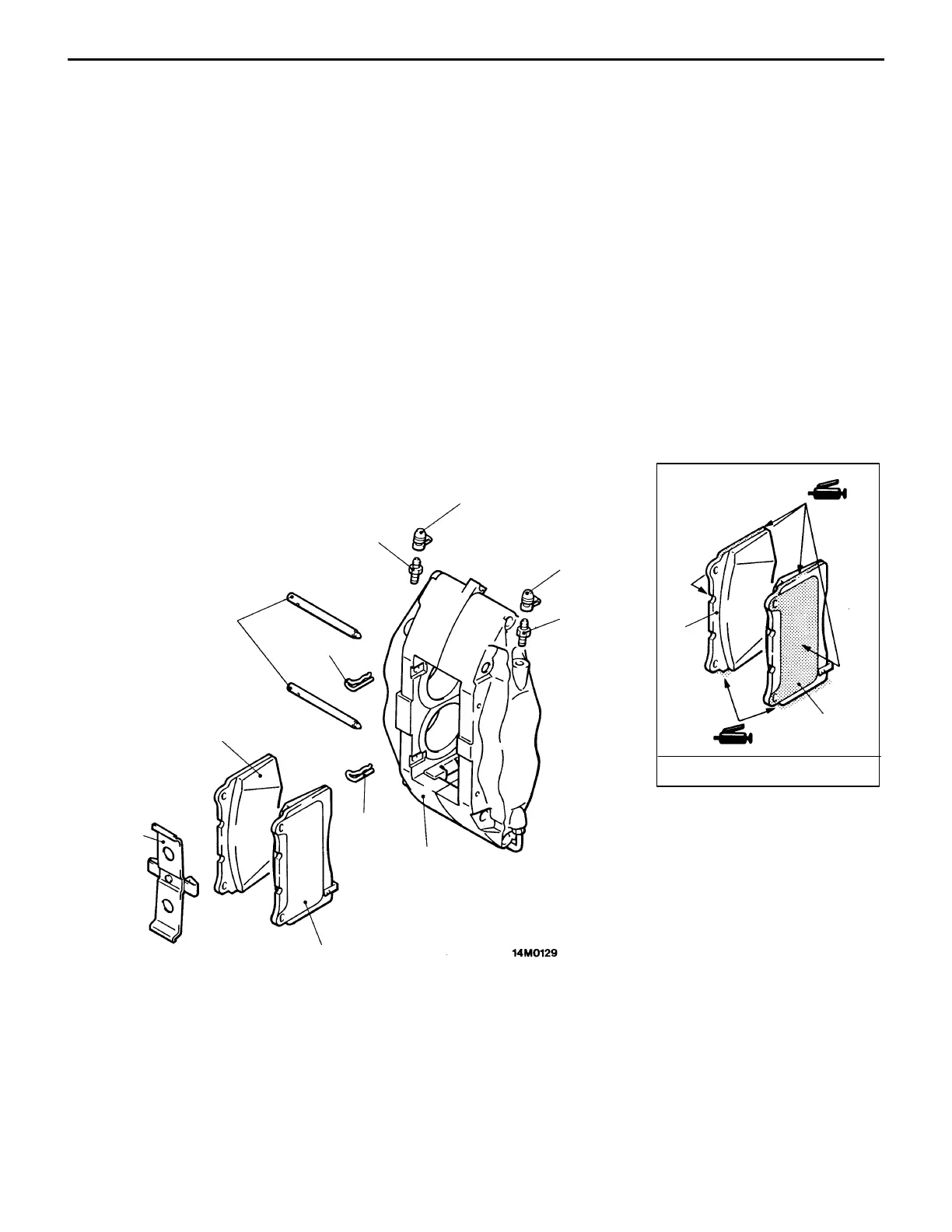

On EVOLUTION-V, disassemble in the order shown.
1
2
3
4
5
6
7
8
Grease: Repair kit grease
6
7
5
1
4
Disassembly steps
1. Clip
2. Pin
3. Cross spring
4. Pad & wear indicator assembly
5. Pad assembly
6. Air bleeder screw
7. Cap
8. Disc brake caliper assembly
To Next Page
