INTAKE AND EXHAUST – Exhaust Pipe and Muffler
15-14

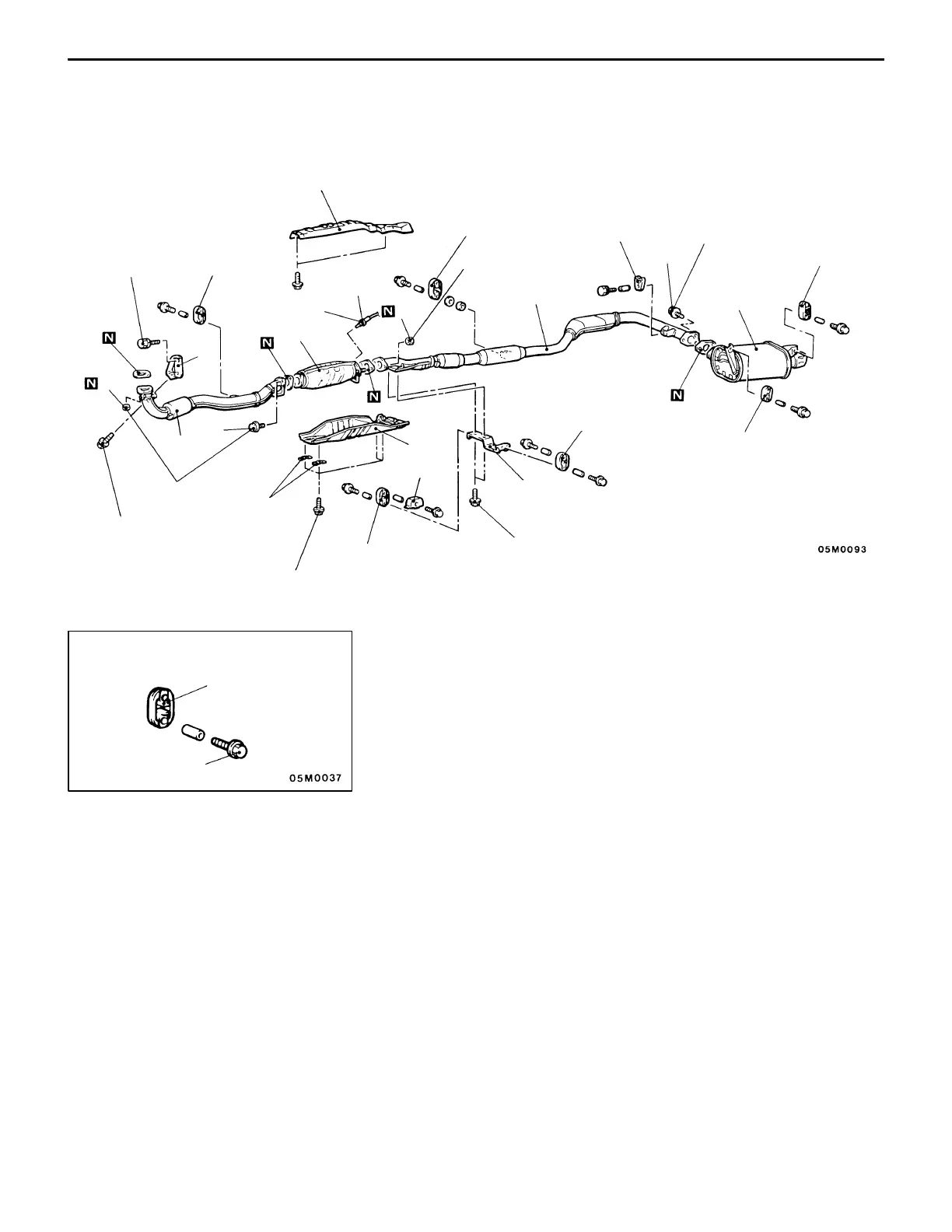

EXHAUST PIPE AND MUFFLER
REMOVAL AND INSTALLATION
Unit: Nm {kgf@m}
15
44 {4.5}
49 {5.0}
34 {3.5}
5 {0.5}
13 {1.3}
14
16
7
5
13
17
2
1
3
4
6
18
8
9
12
10
11
34 {3.5}
19 {1.9}
49 {5.0}
Hanger mounting bolt tightening
torque
13 {1.3}
3, 9, 18
9
3
3
9
Main muffler removal steps
1. Bolt
2. Main muffler
3. Hanger
Center exhaust pipe removal steps
1. Bolt
4. Spring
5. Heat protector
6. Self-locking nut
7. Hanger bracket
8. Center exhaust pipe
9. Hanger
10. Protector
11. High-temperature sensor
12. Bolt
13. Catalytic converter
14. Front floor heat protector panel
Front exhaust pipe removal steps
4. Spring
5. Heat protector
12. Bolt
15. Self-locking nut
16. Front exhaust pipe
17. Front exhaust pipe bracket
18. Hanger
