ABS – On-vehicle Service / Lateral Acceleration Sensor
35B-17
ON-VEHICLE SERVICE
WHEEL SPEED SENSOR OUTPUT VOLTAGE
MEASUREMENT <EVOLUTION-V>

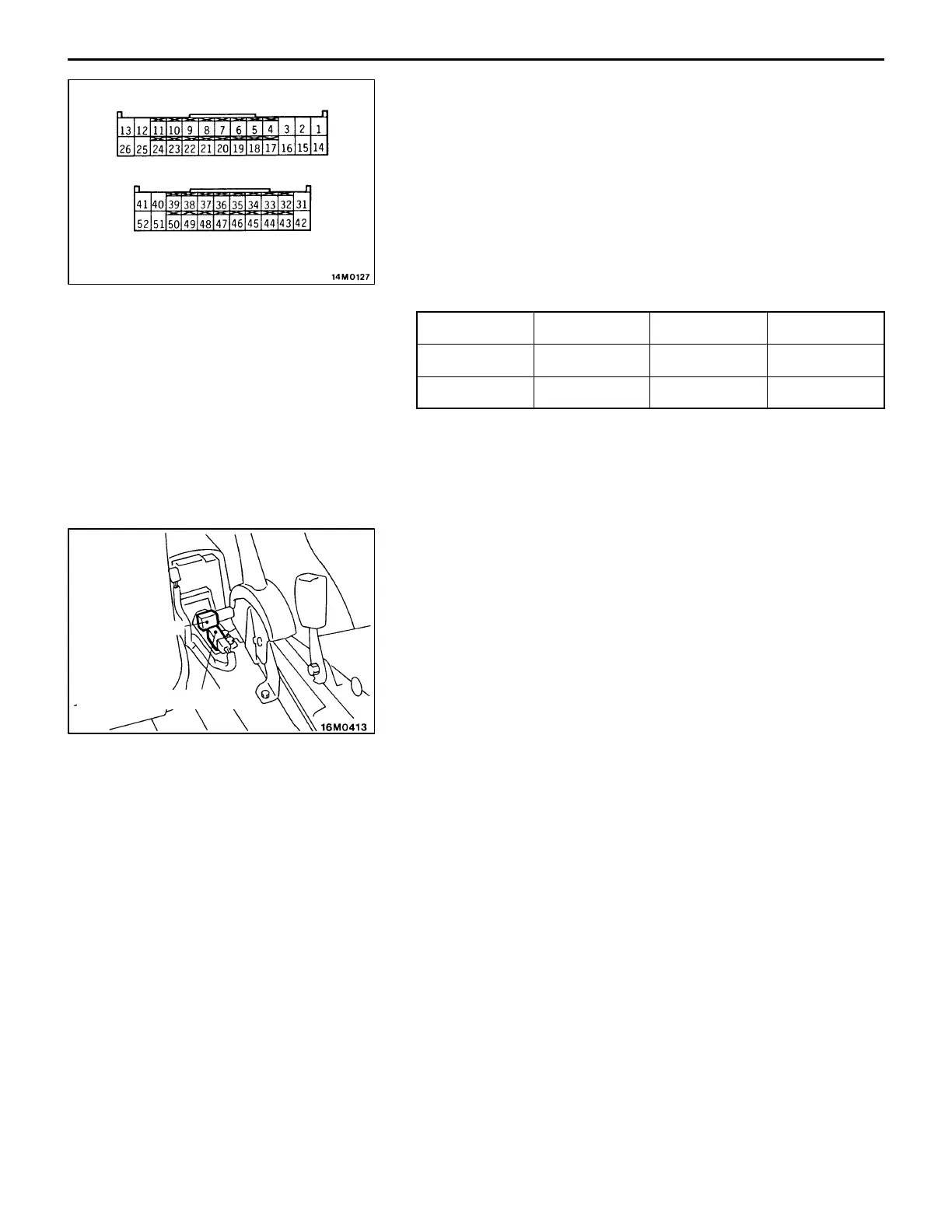

The EVOLUTION-V has the ABS-ECU connector terminal
arranged as shown at left. Accordingly, the terminals to
measure the output voltage of the wheel speed sensors are
different from EVOLUTION-V.
Follow the conventional procedures except these pick-out
terminals.
Measurement terminals:
Front LH Front RH Rear LH Rear RH
7 10 9 8
20 23 22 21
LATERAL ACCELERATION SENSOR
INSPECTION
Use the same procedures as those for the conventional
longitudinal acceleration sensor.
ABS-ECU connector harness side
Longitudinal
acceleration
sensor
Lateral acceleration sensor
