BASIC BRAKE SYSTEM – Rear Brake
35A-8
REAR BRAKE
REMOVAL AND INSTALLATION
Pre-removal Operation
D Brake Fluid Draining
Post-installation Operation
D Brake Fluid Refilling and Bleeding
1
2
3
4
Unit: Nm {kgf@m}
29 {3.0}
49 – 59 {5.0 – 6.0}

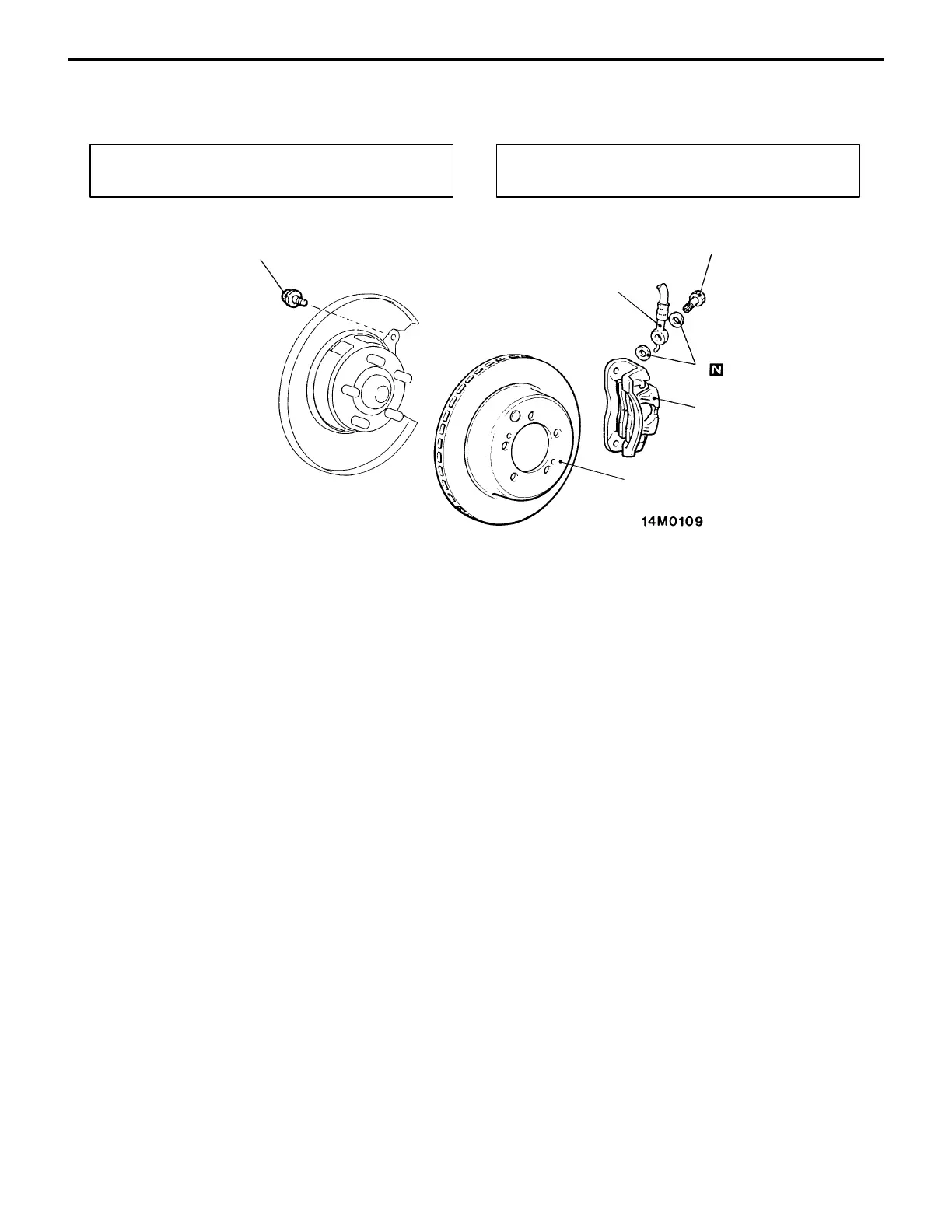

Removal steps
1. Brake hose connection
2. Gasket
"AA 3. Rear brake assembly
4. Brake disc
NOTE
Shown here is the illustration of rear brake for
EVOLUTION-IV.
INSTALLATION SERVICE POINT
"AA DISC BRAKE ASSEMBLY INSTALLATION
Follow the conventional procedures except the standard value
for the disc brake drag force.
Standard value (disc brake drag force): 69 N {7.0 kgf}
