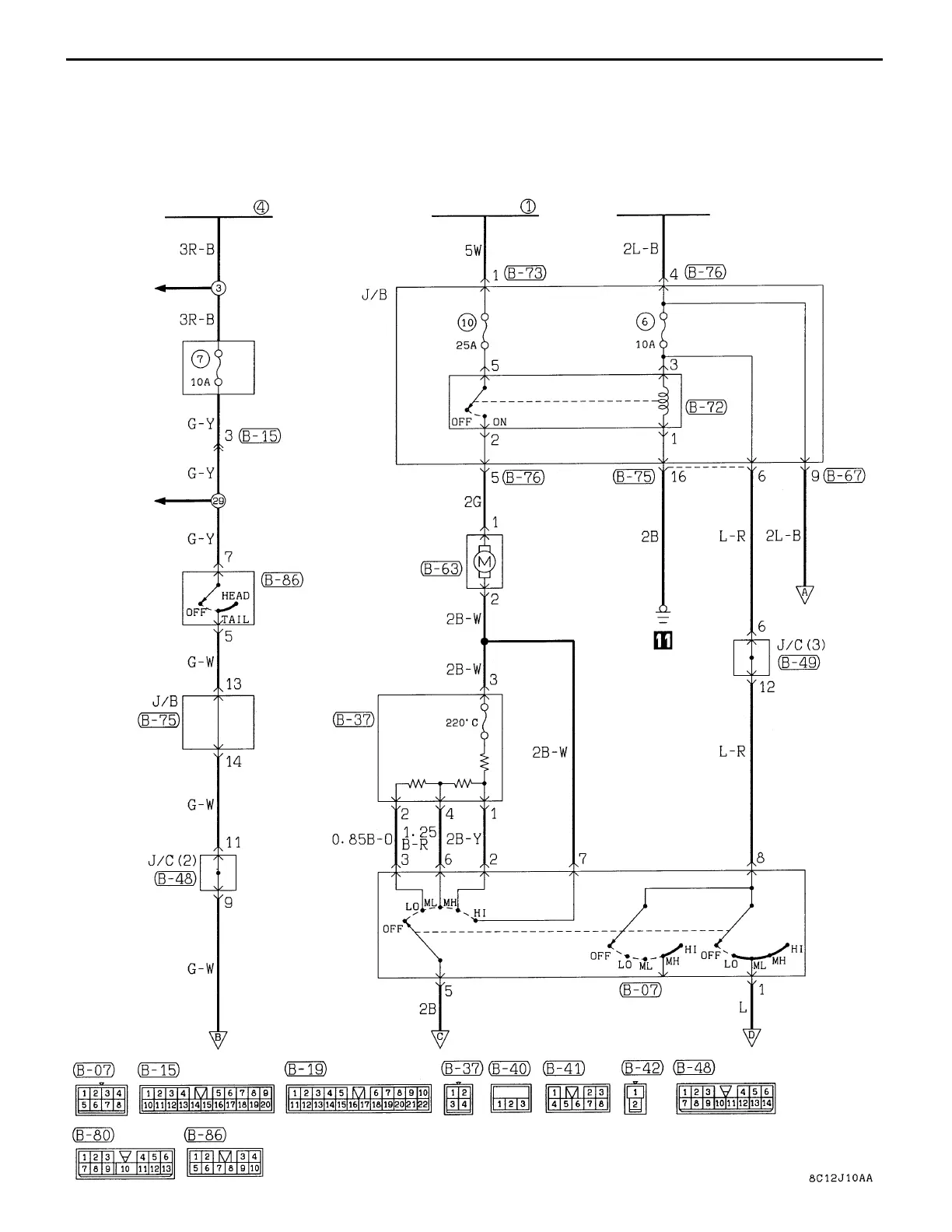

CIRCUIT DIAGRAM – Heater and Manual Air Conditioner
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER
SUPPLY
• HEADLAMP
DEDICATED
FUSE
FOG LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
FUSIBLE LINK
IGNITION
SWITCH (IG2)
BLOWER
MOTOR
RELAY
BLOWER
MOTOR
RESISTOR
BLOWER SWITCH
C-48
HEATER AND MANUAL AIR CONDITIONER
