Mitsubishi LANCER EVOLUTION-V 1998

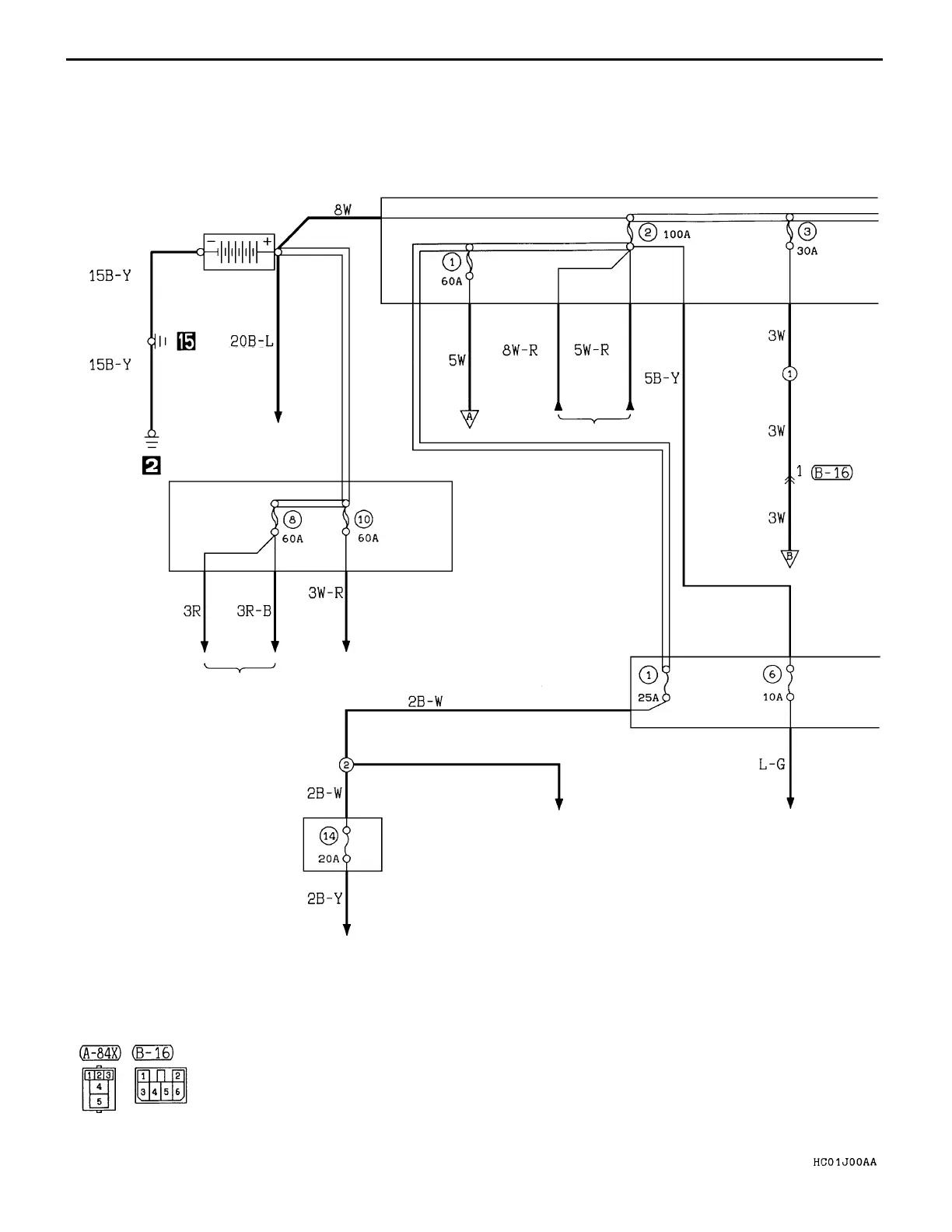

CIRCUIT DIAGRAM – Power Distribution System
BATTERY
FUSIBLE LINK (RELAY BOX IN ENGINE COMPARTMENT)
FUSIBLE LINK
(DIRECTLY
CONNECTED
TO BATTERY)
STARTING
SYSTEM
CHARGING SYSTEM
ANTILOCK
BRAKE
SYSTEM
ACTIVE YAW
CONTROL SYSTEM
DEDICATED FUSE
(RELAY BOX
IN ENGINE
COMPARTMENT)
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC AIR
CONDITIONER
• COOLING SYSTEM
DEDICATED FUSE
(A/C RELAY BOX
IN ENGINE
COMPARTMENT)
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC
AIR CONDITIONER
• COOLING SYSTEM
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC
AIR CONDITIONER
B-26
POWER DISTRIBUTION SYSTEM
