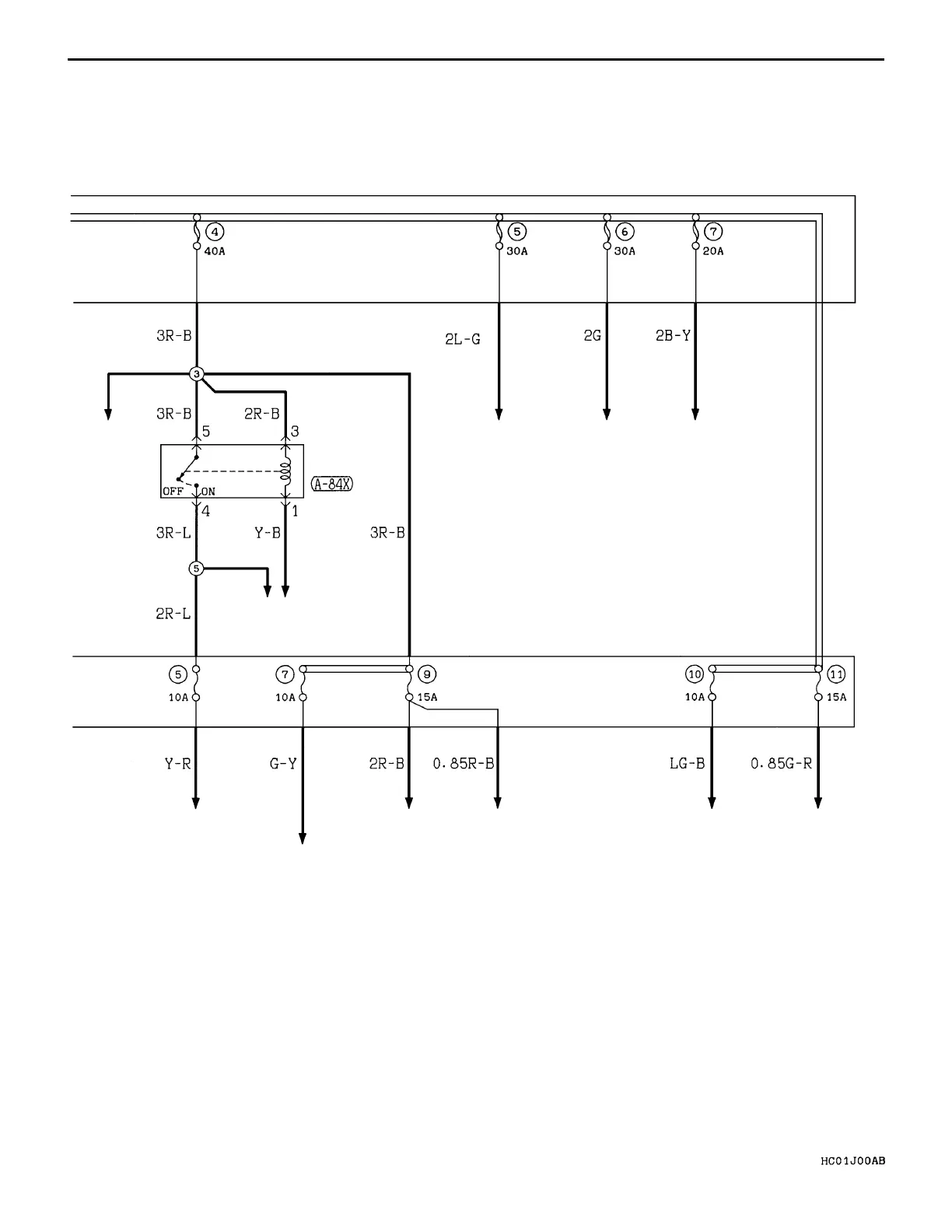

CIRCUIT DIAGRAM – Power Distribution System
• HEATER AND
MANUAL AIR
CONDITIONER
• FULLY AUTO-
MATIC AIR
CONDITIONER
• COOLING
SYSTEM
• POWER
WINDOW
• POWER
SEAT
ENGINE
CONTROL
SYSTEM
HEADLAMP
RELAY
CHARGING
SYSTEM
HEADLAMP
FOG LAMP SPARE
CONNECTOR
FOR FOG LAMP
TURN SIGNAL LAMP
AND HAZARD LAMP
• ACTIVE YAW
CONTROL
SYSTEM
• ANTILOCK
BRAKE
SYSTEM
• STOP LAMP
• CLOCK AND MULTI-DISPLAY
• SUNROOF
• CIGARETTE LIGHTER AND ASHTRAY
ILLUMINATION LAMP
• METER AND GAUGE
• TURN SIGNAL LAMP AND HAZARD LAMP
• TAIL LAMP, POSITION LAMP, LICENCE
PLATE LAMP, AND LIGHTING MONITOR
BUZZER
• DEFOGGER AND DOOR MIRROR HEATER
• ELECTRIC RETRACTABLE REMOTE
CONTROLLED MIRROR
• HEATER
• HEATER AND MANUAL AIR CONDITIONER
• FOG LAMP
• FOOT LAMP
• FULLY AUTOMATIC AIR CONDITIONER
• HEADLAMP
• RADIO
• SPARE CONNECTOR FOR RADIO
HEADLAMP
