INTAKE AND EXHAUST – Intercooler
15-7
INTERCOOLER
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Front Bumper Removal and Installation
(Refer to GROUP 51.)
16
Unit: Nm {kgf@m}
10 – 13
{1.0 – 1.3}
6 {0.6}
10 – 13
{1.0 – 1.3}
10 – 13
{1.0 – 1.3}
10 – 13
{1.0 – 1.3}
11 10
12
13
15
14
5
4
2
3
6
7
9
8
Hose clamp
tightening torque
1

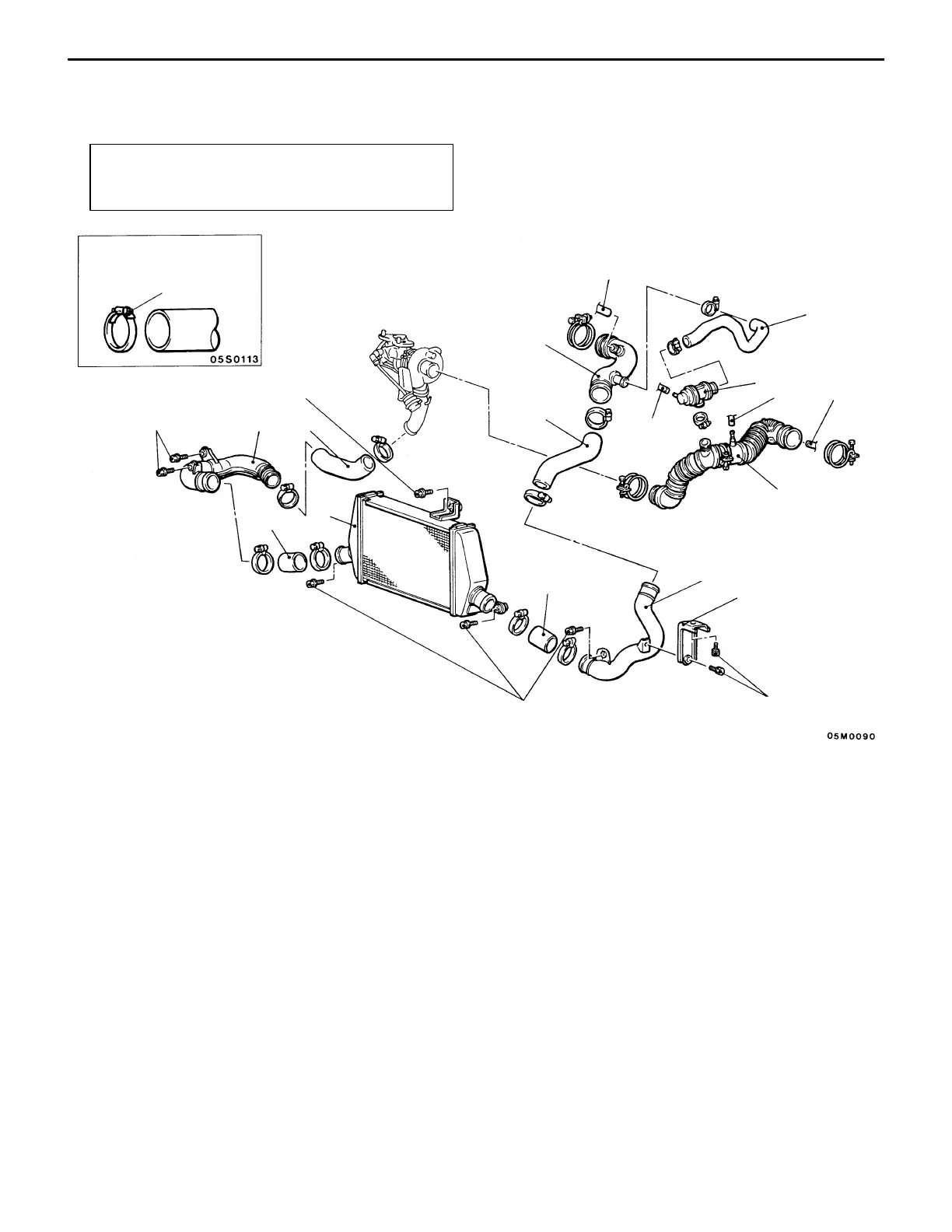

Removal steps
1. Vacuum hose connection
2. Air bypass valve assembly
3. Breather hose connection
4. Vacuum hose connection
5. Air intake hose assembly
"AA 6. Air bypass hose
7. Air hose connection
"AA 8. Air hose D
"AA 9. Air hose C
"AA 10. Air hose A
11. Air pipe A
"AA 12. Air hose B
13. Intercooler assembly
"AA 14. Air hose B
15. Air pipe B
16. Air pipe bracket
INSTALLATION SERVICE POINT
"AA AIR HOSE B / AIR HOSE A / AIR HOSE C / AIR
HOSE D / AIR BYPASS HOSE INSTALLATION
Align the alignment mark (white paint) on each hose with
the protrusion on each pipe.
