BODY – Body Construction (Difference between EVOLUTION-IV and V)
42-5
BODY CONSTRUCTION
(Difference between EVOLUTION-IV and V)
EVOLUTION-V has a different rear suspension configuration from that of EVOLUTION-IV because of
adoption of reinforced suspension elements and wide tread tyres. For this reason, the configuration and
the dimensions of the following body sections are also different.
SIDE BODY
Side Structure

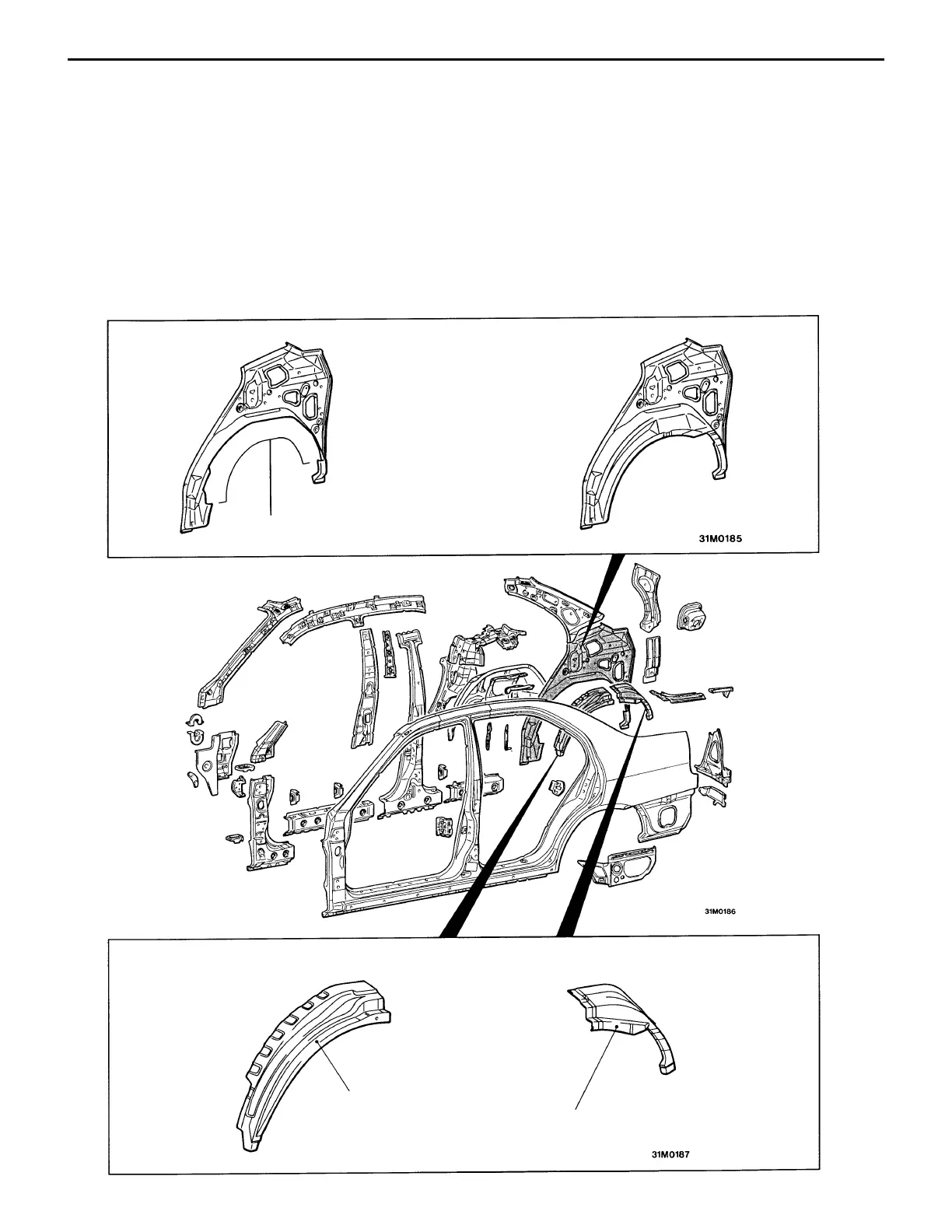

(1) The quarter panel has a cut-out provided at the inner section.
(2) The quarter inner extension front and the quarter inner extension rear is provided in the quarter
panel inner cut-out section.
Cut-out
Quarter panel inner
<EVOLUTION-V> <EVOLUTION-IV>
<EVOLUTION-V>
Quarter inner
extension front
Quarter inner
extension rear
