CLUTCH – On-vehicle Service
21-3

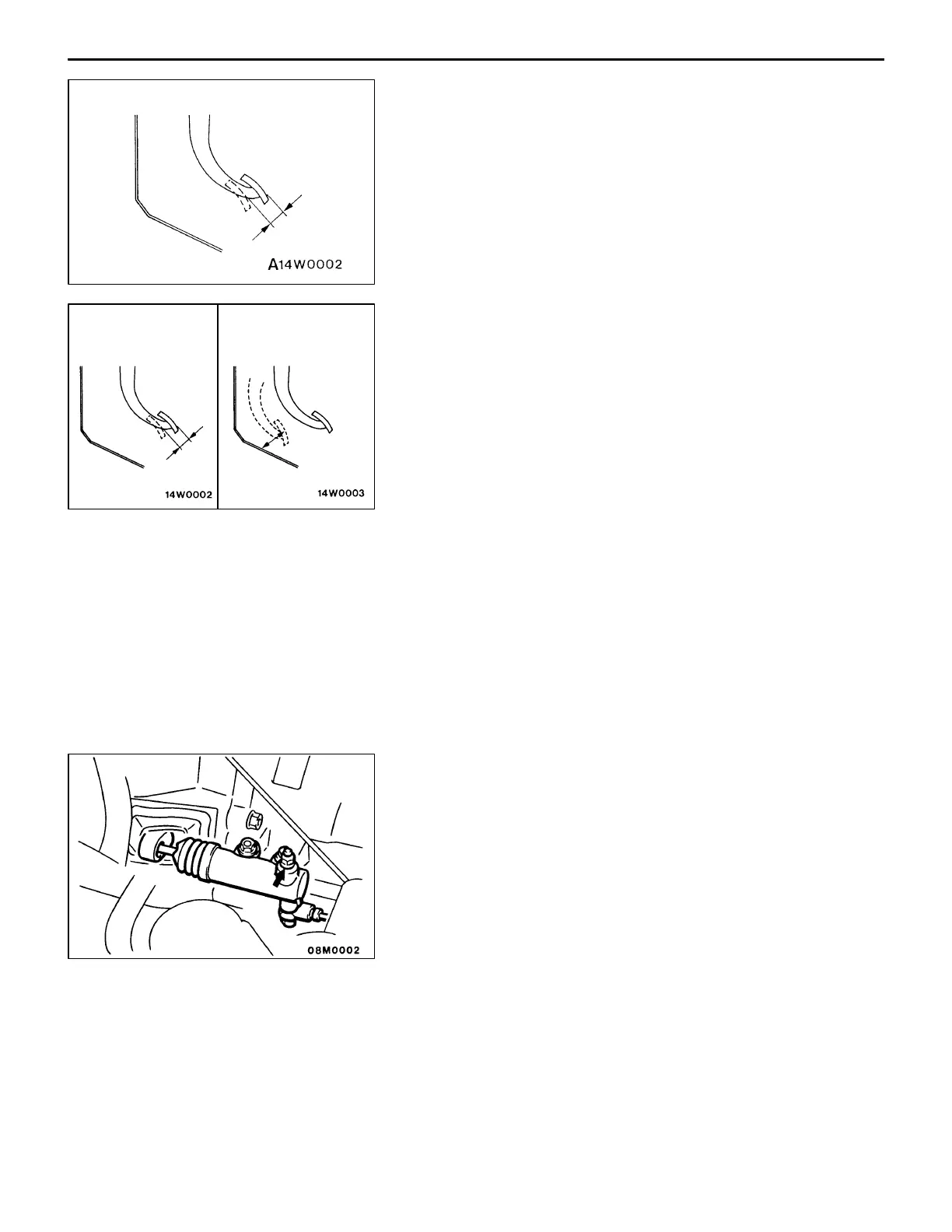

(4) Measure the clutch pedal play.
Standard value (B): 1 – 3 mm
(5) If the clutch pedal play is not within the standard value,
loosen the setting nut and move the push rod to adjust.
Caution
Do not push in the master cylinder push rod at this
time.
(6) After completing the adjustments, confirm that the clutch
pedal free play (measured at the face of the pedal pad)
and the distance between the clutch pedal (the face of
the pedal pad) and the toeboard when the clutch is
disengaged are within the standard value ranges.
Standard value (C): 6 – 13 mm
Standard value (D): 70 mm or more
(7) If the clutch pedal free play and the distance between
the clutch pedal and the toeboard when the clutch is
disengaged do not agree with the standard values, it
is probably the result of either air in the hydraulic system
or a faulty master cylinder or clutch. Bleed the air, or
disassemble and inspect the master cylinder, release
cylinder or clutch.
(8) Turn back the carpet, etc.
2. BLEEDING
Specified fluid:
MITSUBISHI genuine brake fluid “DIA-QUEEN BRAKE
FLUID SUPER 4”
Caution
Use the specified brake fluid. Avoid using a mixture of
the specified fluid and other fluid.
Clutch pedal clevis pin play
B
Clutch pedal free
play
Distance between the
clutch pedal and the
toeboard when the
clutch is disengaged
C
D
