– Dash Panel
WIRING HARNESS

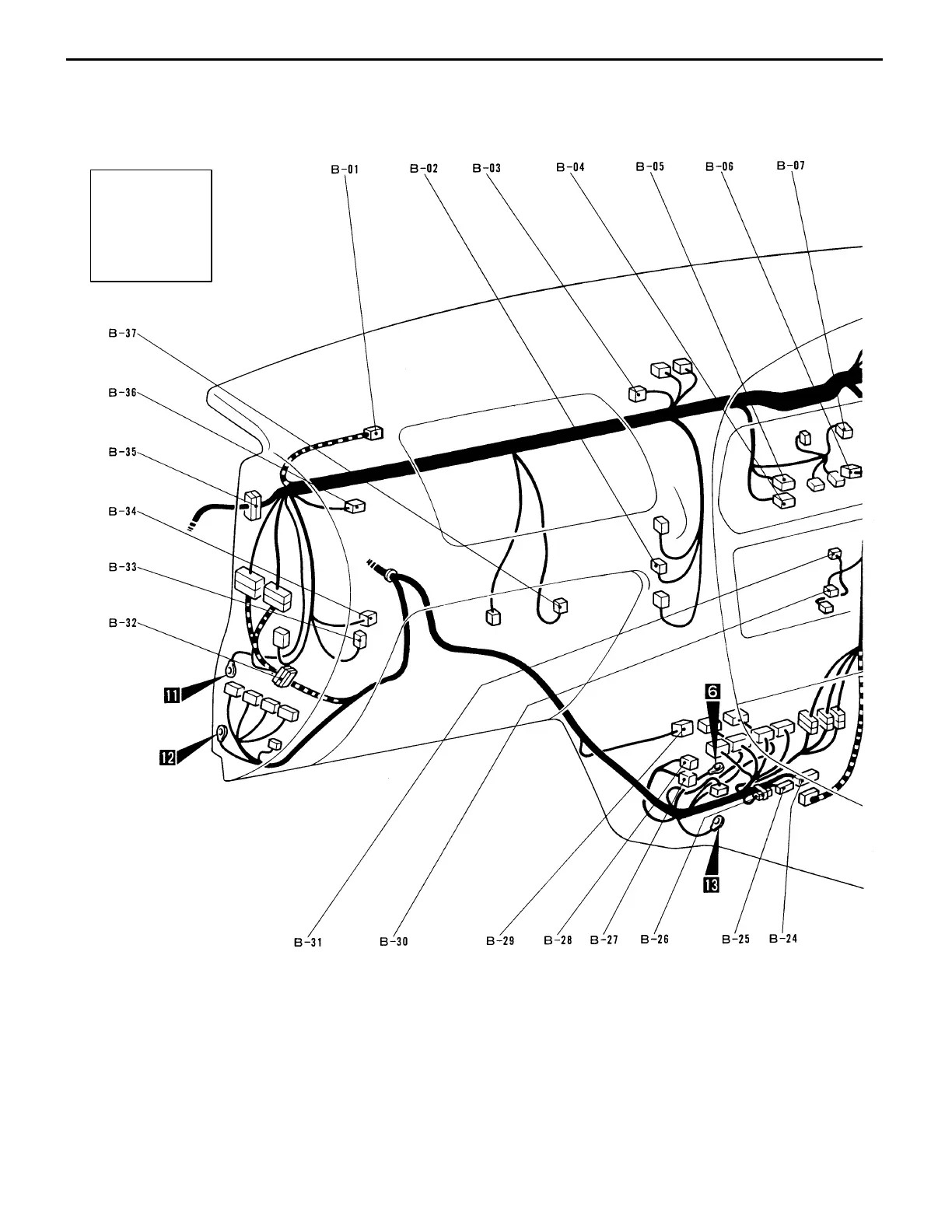

CONFIGURATION DIAGRAMS
Connector
symbol
–01
thru
–37
B
B-6
DASH PANEL
B-01 (2-R) Passenger seat air bag module (squib)
B-02 (2) Heater water temperature sensor
<vehicles with fully automatic air conditioner>
B-03 (2-B) Air thermo sensor <vehicles with fully
automatic air conditioner>
B-04 (20-B) A/C-ECU <vehicles with fully automatic air
conditioner>
B-05 (16-B) A/C-ECU <vehicles with fully automatic air
conditioner>
B-06 (6) Air outlet change-over damper motor and
potentiometer <vehicles with fully automatic
air conditioner>
B-07 (8) Blower switch
<vehicles with manual air conditioner>
B-08 (25) Meter and gauge
B-09 (25) Meter and gauge
B-10 (22) Body harness and front door harness (RH)
combination
B-11X (8) Rear intermittent wiper relay
B-13X (5) Power window relay
B-15 (20) Front harness and body harness combination
B-16 (6) Front harness and body harness combination
B-17 (14) Front harness and body harness combination
<ABS, AYC>
B-18 (19) Jumper connector (1)
To Next Page
