REAR SUSPENSION – Shock Absorber Assembly
34-13
SHOCK ABSORBER ASSEMBLY
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Trunk Room Side Trim Removal and Installation
<GSR>
1
2
3
4
Unit: Nm {kgf@m}
44 {4.5}
88 {9.0}*

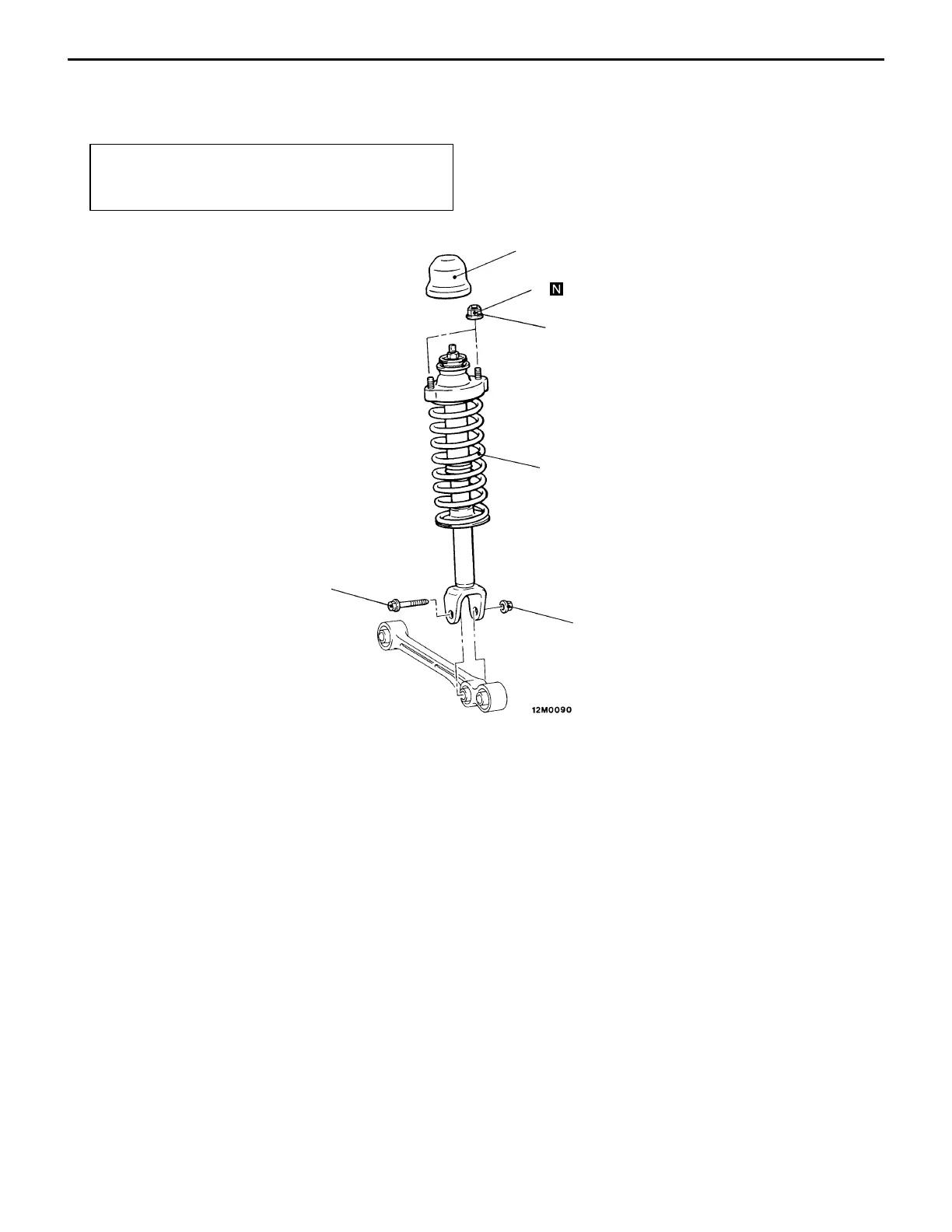

Removal steps
1. Cap
2. Shock absorber mounting nuts
3. Bolt
4. Shock absorber assembly
Caution
The part marked with * should be first temporarily
tightened, then torqued to specification with the
vehicle on the ground in unloaded condition.
