REAR AXLE – Sensor Relay <Vehicles with AYC>
27-52

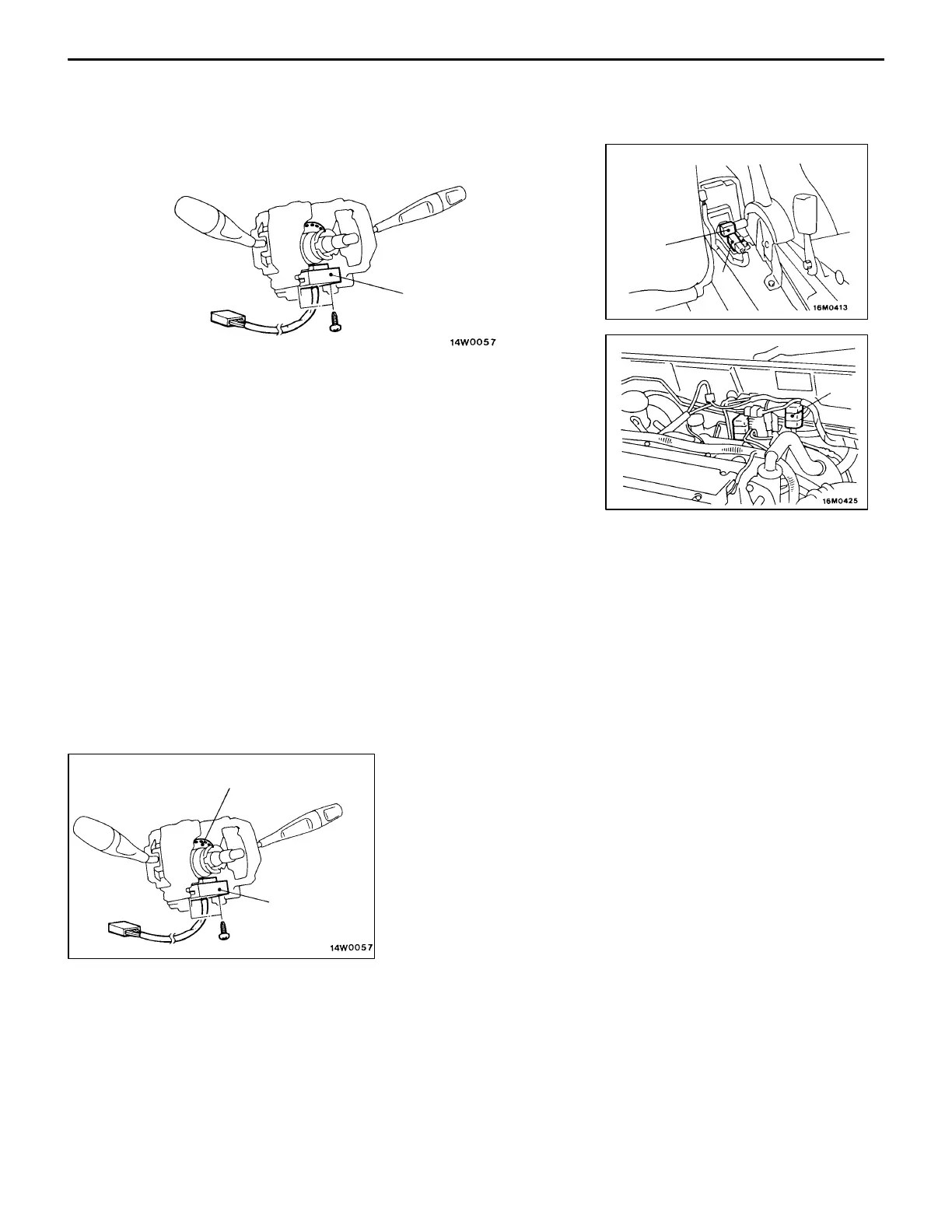

SENSOR RELAY <VEHICLES WITH AYC>
REMOVAL AND INSTALLATION
1
2
3
4
Steer sensor removal steps
D Steering wheel and column cover
(Refer to GROUP 37 – Steering Wheel
and Shaft.)
AA" 1. Steer sensor
Acceleration sensor and AYC relay
removal
2. Longitudinal acceleration sensor
3. Lateral acceleration sensor
4. AYC relay
NOTE
For the wheel speed sensor, refer to GROUP 35B.
REMOVAL SERVICE POINT
AA" STEER SENSOR REMOVAL
Remove the steer sensor from the column switch.
Caution
(1) A photocoupler is used as the steer sensor. Use care
not to allow dust or grease to be on the sensor.
(2) Do not bend or dirty with grease the slit plate on
the column switch side.
Slit plate
Steer sensor
To Next Page
