STEERING –
Steering Wheel <EVOLUTION-IV RS> /
Power Steering Gear & Linkage
37A-3
STEERING WHEEL
<EVOLUTION-IV RS>
REMOVAL SERVICE POINT

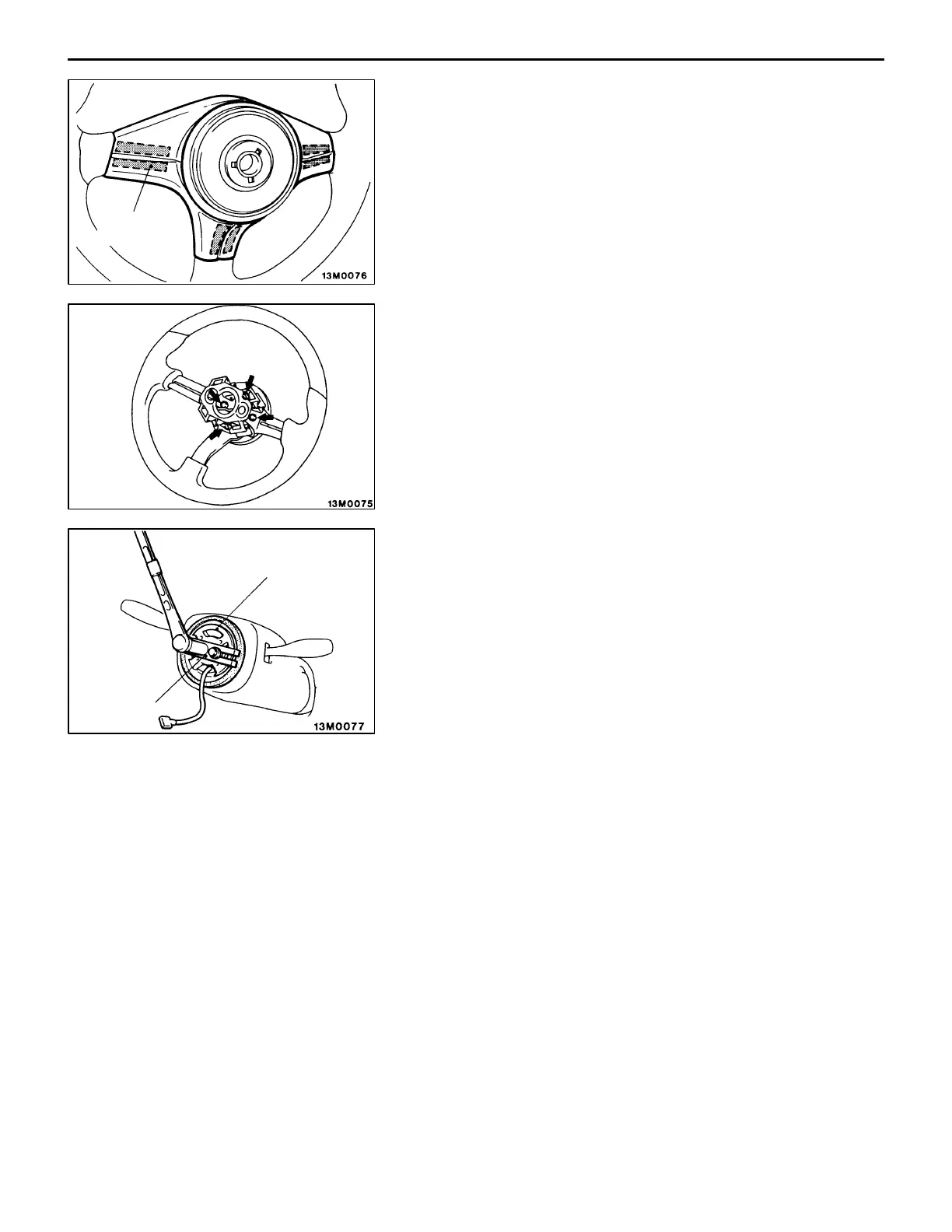

STEERING WHEEL REMOVAL
(1) Peel off the dual lock fasteners from the steering wheel
spokes and remove the horn pad.
(2) Remove the bolts indicated by arrows in the illustration
and remove the steering wheel from the boss plate.
(3) Using the special tool, remove the boss plate from the
steering column.
POWER STEERING GEAR &
LINKAGE
For removal, installation and inspection procedure, follow the
conventional procedures except the following.
INSPECTION
PINION TOTAL TURNING TORQUE
The conventional procedures apply except for the standard
value.
Standard value:
Total turning torque 0.9 to 1.7 Nm {9 to 17 kgf@cm}
Torque fluctuations 0.4 Nm {4 kgf@cm} or less
Dual lock
fastener
Boss plate
MB990803
