Mitsubishi LANCER EVOLUTION-V 1998

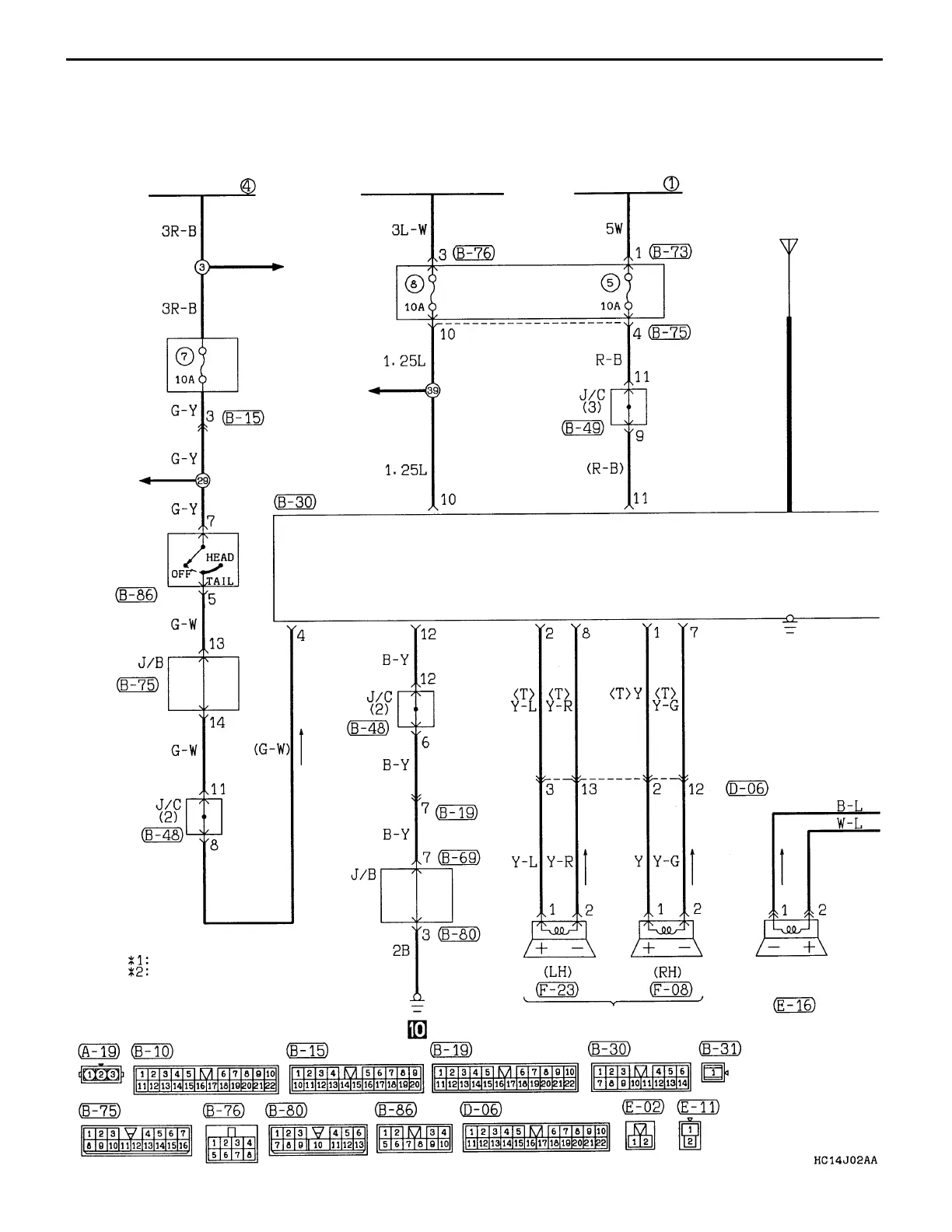

CIRCUIT DIAGRAM – Radio <4-speaker, 6-speaker>
FUSIBLE LINK
IGNITION SWITCH (ACC)
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER
SUPPLY
• HEADLAMP
DEDICATED
FUSE
FOG LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
CENTRAL
DOOR LOCK-
ING SYSTEM
<VEHICLES
WITH KEYLESS
ENTRY SYS-
TEM>
<VEHICLES WITH
POLE ANTENNA>
POLE ANTENNA
ANTENNA
FEEDER
LINE
AM/FM RADIO
REAR SPEAKAER
TWEETER (LH)
<VEHICLES WITH
6 SPEAKERS>
B-80
RADIO <4-SPEAKER, 6-SPEAKER>
