Mitsubishi LANCER EVOLUTION-V 1998 User Manual

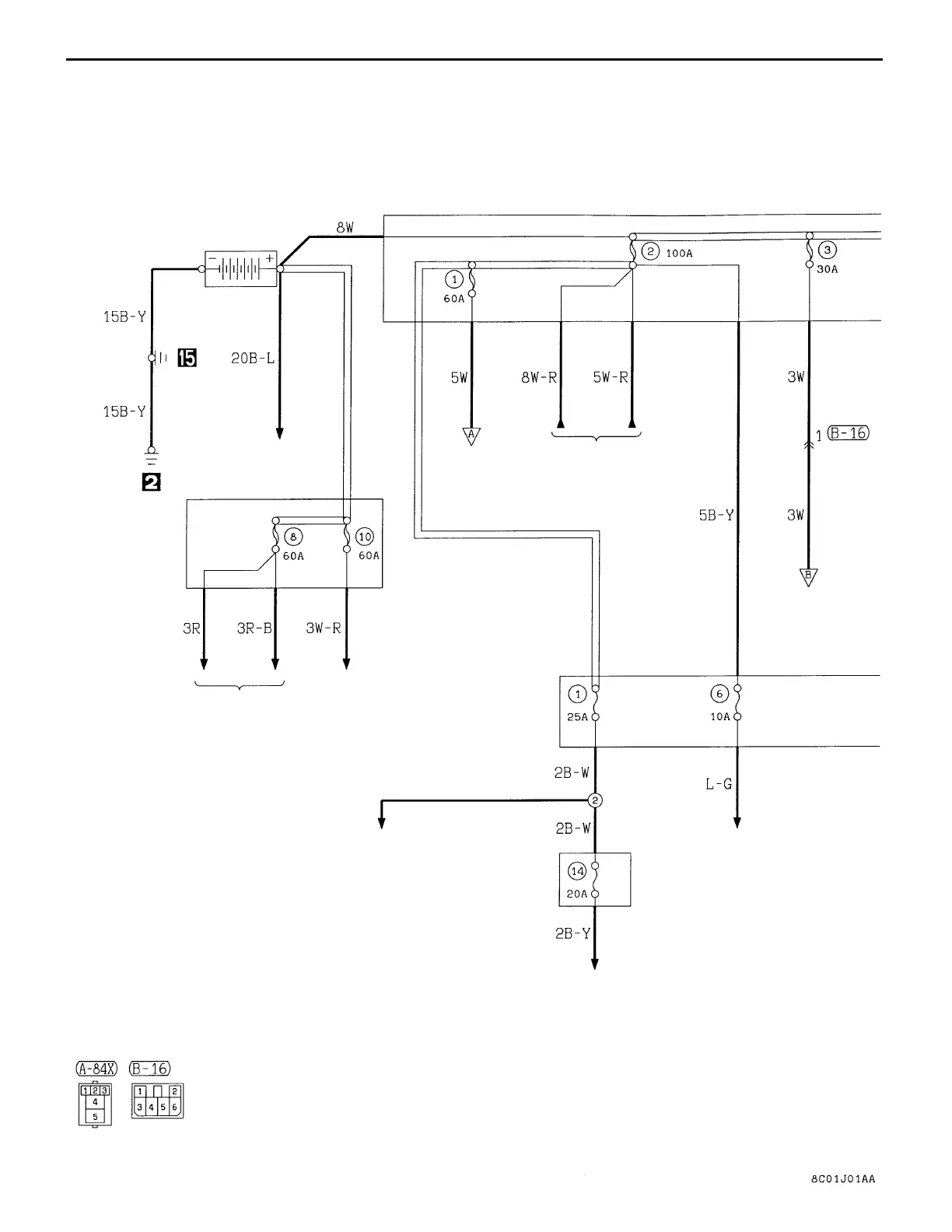

CIRCUIT DIAGRAM – Power Distribution System
BATTERY
FUSIBLE LINK (RELAY BOX IN ENGINE COMPARTMENT)
FUSIBLE LINK
(DIRECTLY
CONNECTED
TO BATTERY)
STARTING SYSTEM
CHARGING
SYSTEM
ANTILOCK
BRAKE SYSTEM
ACTIVE YAW
CONTROL SYSTEM
DEDICATED
FUSE (RELAY
BOX IN ENGINE
COMPARTMENT)
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC AIR
CONDITIONER
• COOLING SYSTEM
DEDICATED
FUSE (A/C RELAY
BOX IN ENGINE
COMPARTMENT)
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC AIR
CONDITIONER
• COOLING SYSTEM
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC AIR
CONDITIONER
C-20
POWER DISTRIBUTION SYSTEM
