Mitsubishi LANCER EVOLUTION-V 1998

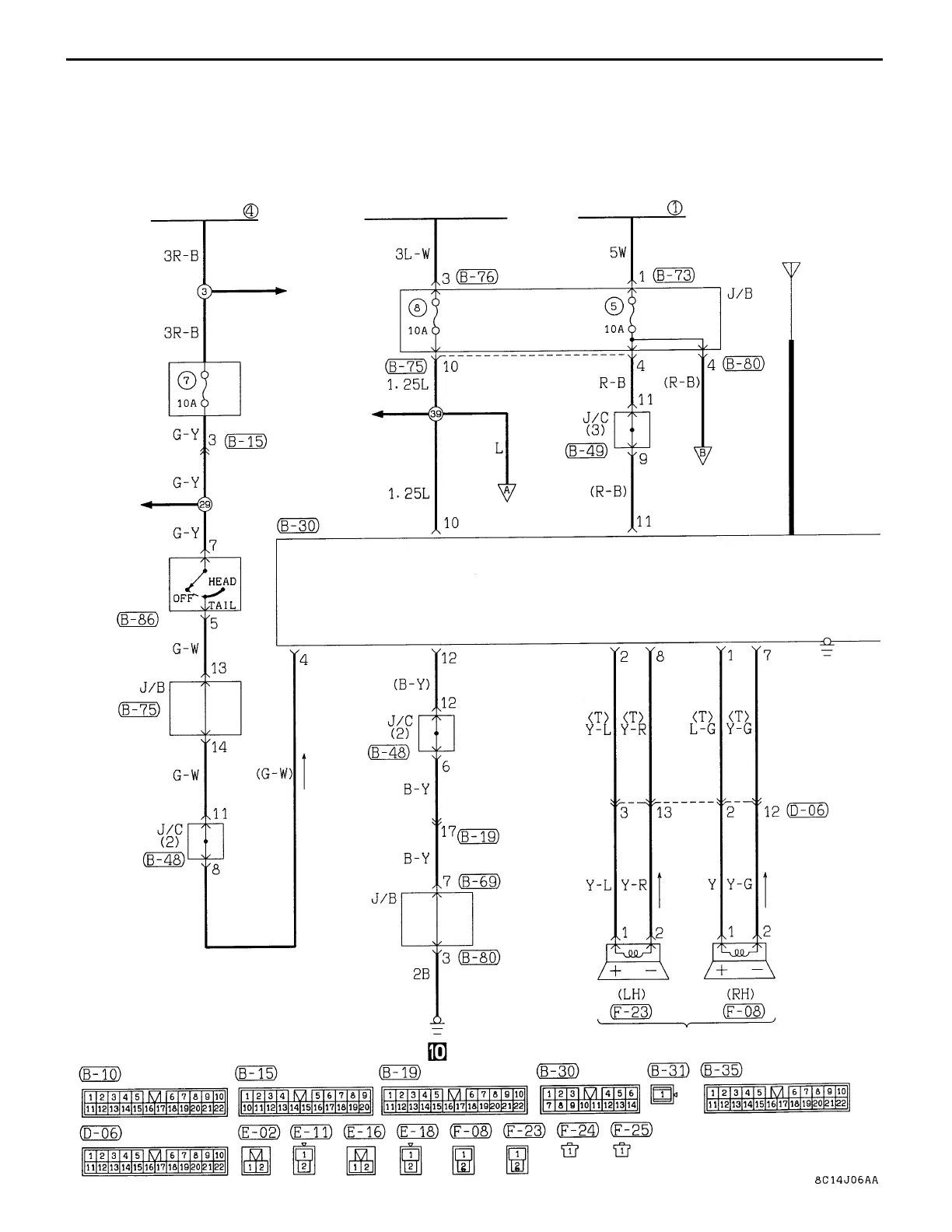

CIRCUIT DIAGRAM – Radio <4-speaker, 6-speaker>
FUSIBLE LINK
IGNITION SWITCH (ACC)
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER
SUPPLY
• HEADLAMP
DEDICATED
FUSE
FOG LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
CENTRAL DOOR
LOCKING SYS-
TEM <VEHICLES
WITH KEYLESS
ENTRY SYSTEM>
<VEHICLES WITH
POLE ANTENNA>
POLE ANTENNA
ANTENNA
FEEDER
LINE
RADIO AND TAPE PLAYER
REAR SPEAKAER
C-70
RADIO <4-SPEAKER, 6-SPEAKER>
