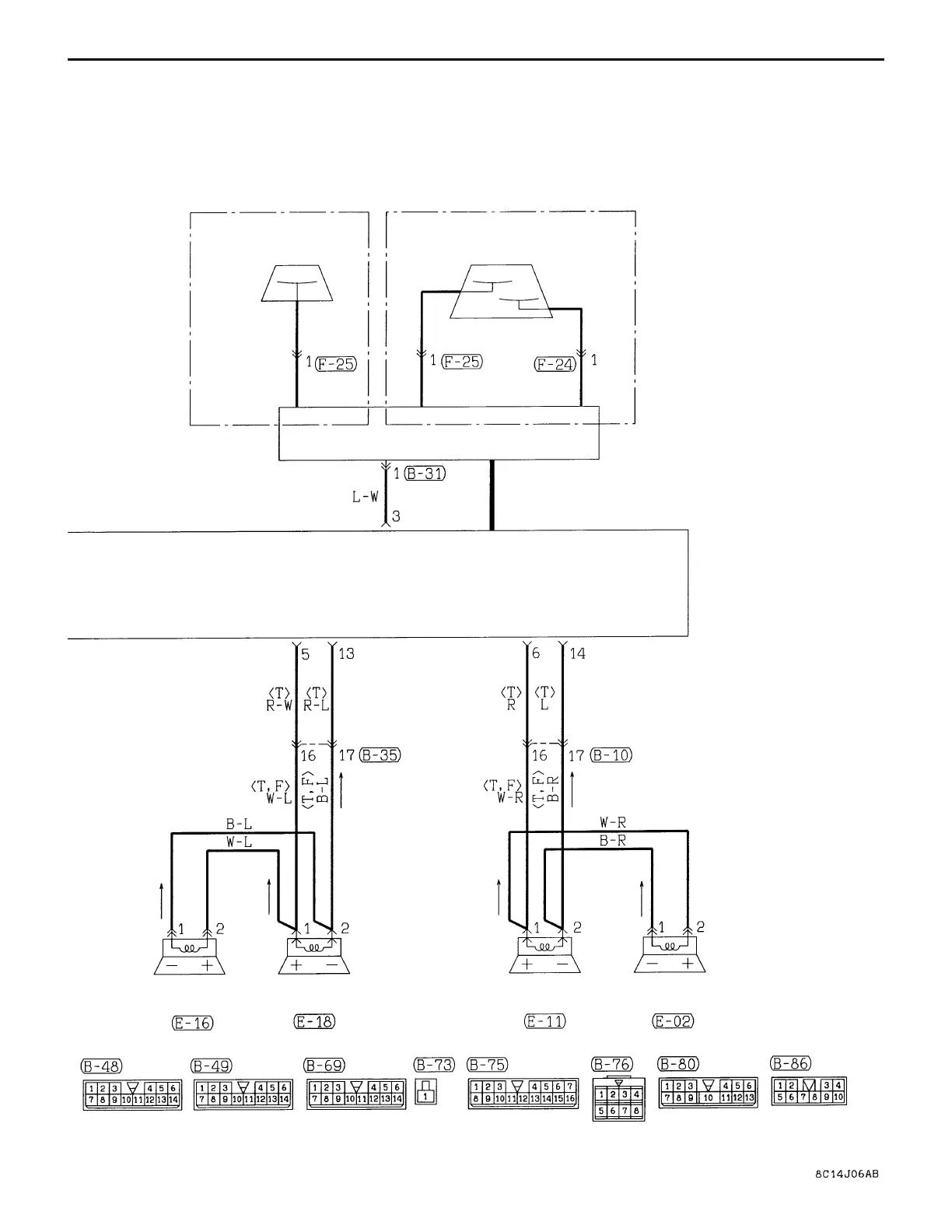

CIRCUIT DIAGRAM – Radio <4-speaker, 6-speaker>
<VEHICLES WITH
GLASS ANTENNA>
REAR
WINDOW
GLASS
ANTENNA
<VEHICLES WITH GLASS
DIVERSITY ANTENNA>
REAR
WINDOW
GLASS
ANTENNA
GLASS ANTENNA AMPLIFIER
ANTENNA
FEEDER LINE
TWEETER (LH)
<VEHICLES WITH 6
SPEAKERS>
DOOR
SPEAKER (LH)
DOOR
SPEAKER (RH)
TWEETER (RH)
<VEHICLES WITH
6 SPEAKERS>
C-71
