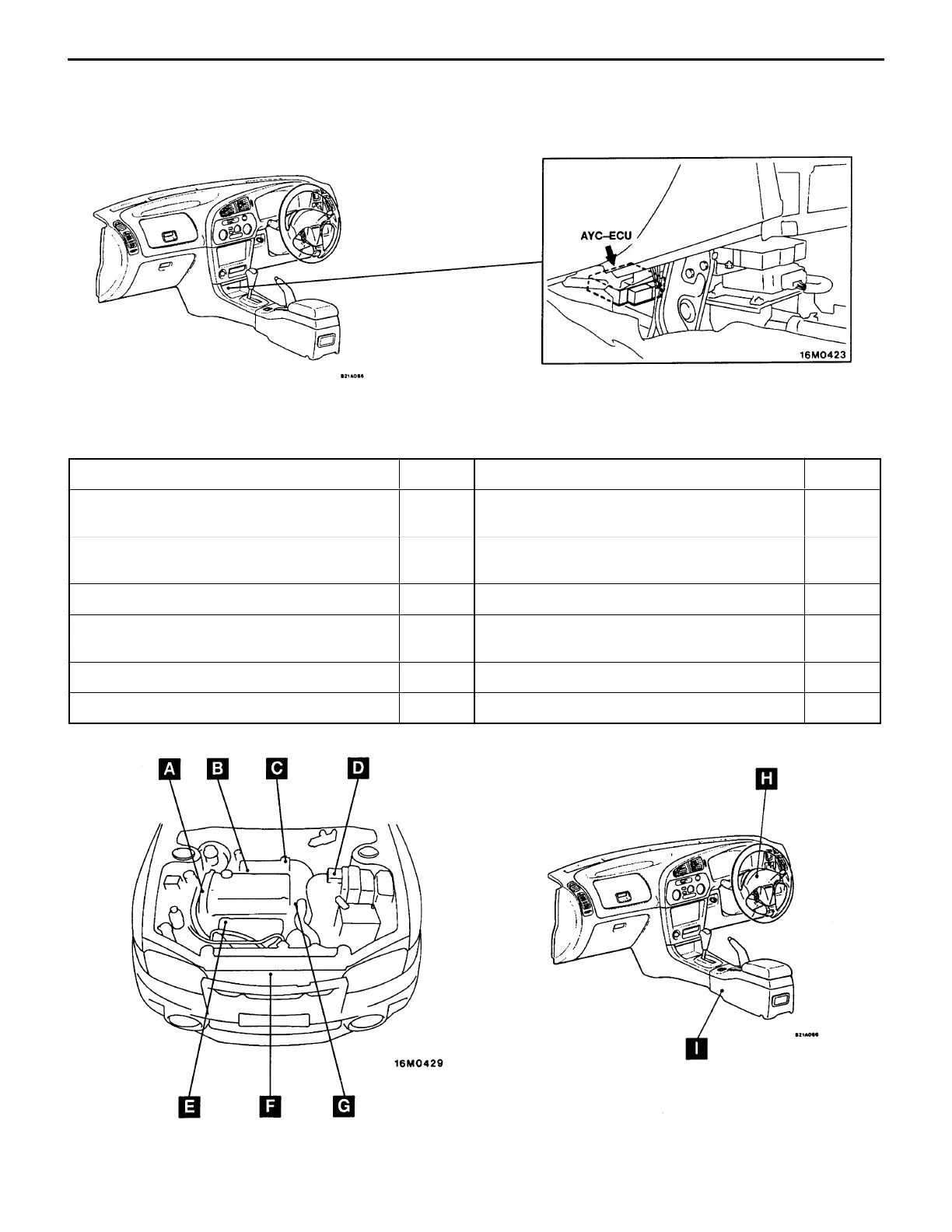

SINGLE PART INSTALLATION POSITION – ECU / Sensor
C-14
ECU
SENSOR
Name Symbol Name Symbol
Acceleration sensor (lateral) <vehicles with
AYC>
I Knock sensor B
Acceleration sensor (longitudinal) <vehicles
with ABS and AYC>
I Outside air temperature sensor <vehicles with
fully automatic air conditioner>
F
Air flow sensor D O
2
sensor E
Camshaft position sensor G Steering angle sensor (lateral) <vehicles with
AYC>
H
Crank angle sensor A Throttle position sensor C
Engine coolant temperature sensor G
To Next Page
