ENGINE COOLING – Radiator
14-7
RADIATOR
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Engine Coolant Draining and Supplying (Refer to
P.14-2.)
2
3
6
11
12
6
8
10
7
9
6
1
5
13
4
Unit: Nm {kgf@m}
12 {1.2}
12 {1.2}
12 {1.2}
9

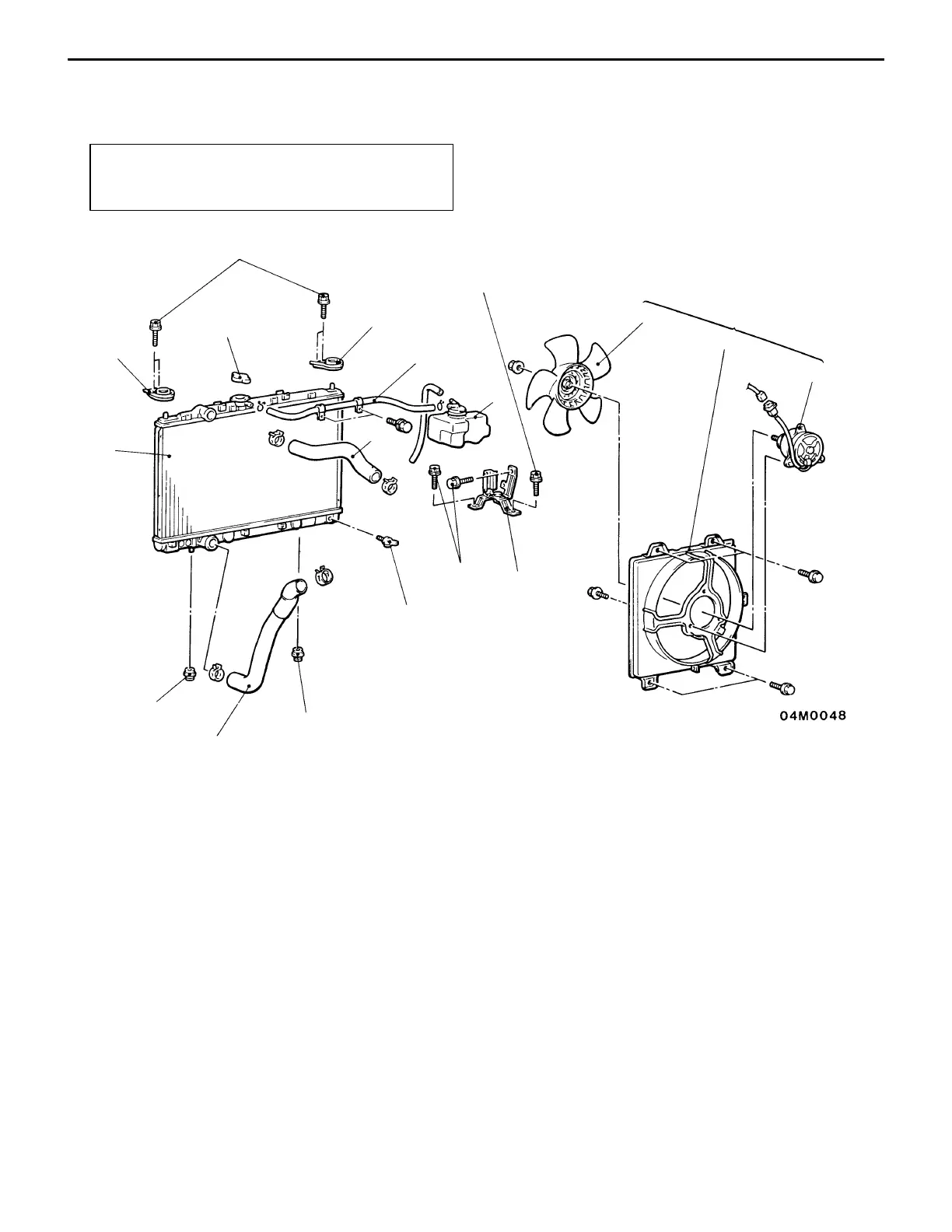

Radiator removal steps
1. Drain plug
2. Radiator cap
3. Overflow hose
4. Reserve tank
5. Reserve tank bracket
AA""AA 6. Radiator upper hose
AA""AA 7. Radiator lower hose
8. Radiator assembly
9. Lower insulator
10. Radiator fan motor assembly
Radiator fan motor removal steps
1. Drain plug
2. Radiator cap
AA""AA 6. Radiator upper hose
D Air intake hose
(Refer to GROUP15 – Intercooler.)
10. Radiator fan motor assembly
11. Fan
12. Radiator fan motor
13. Shroud
To Next Page
