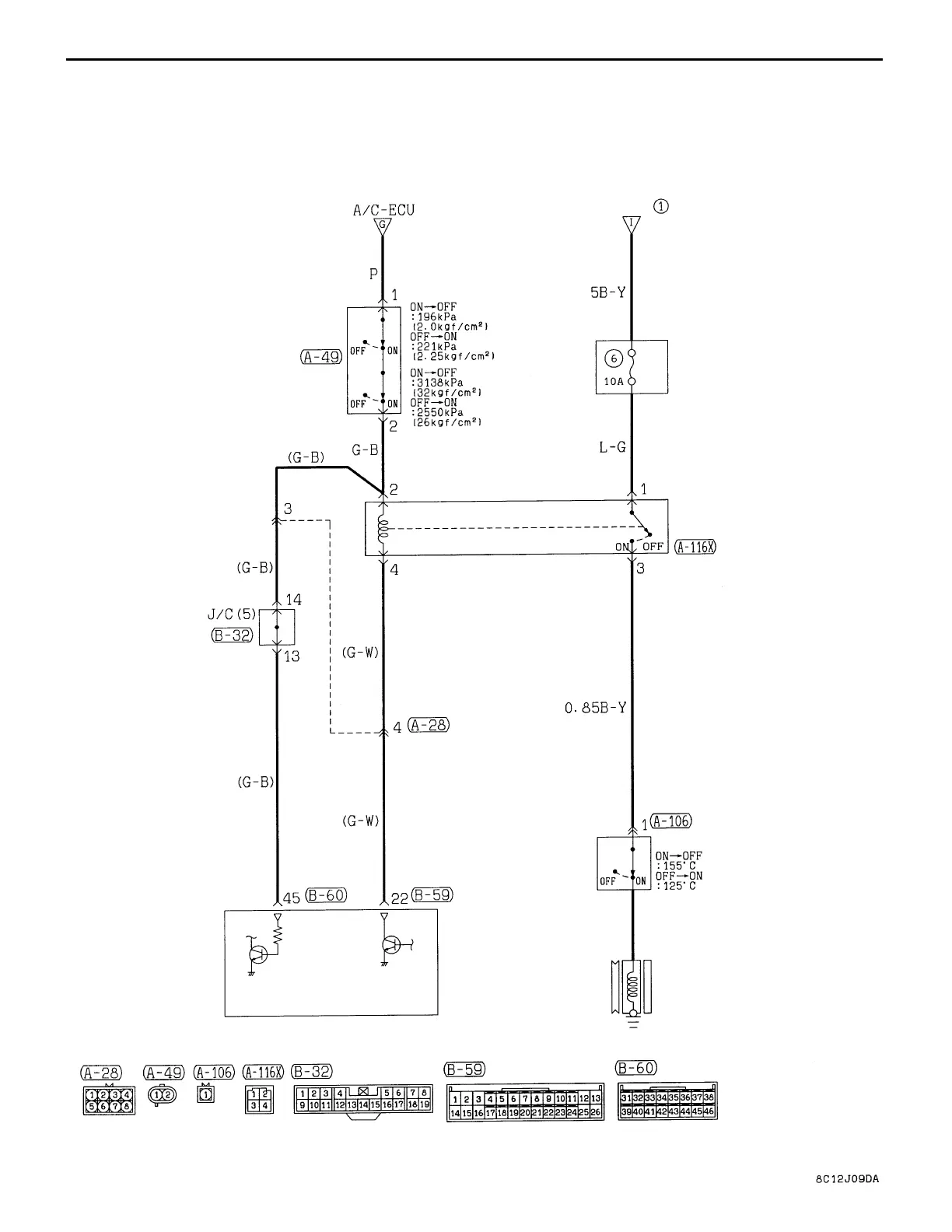

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
DUAL
PRESSURE
SWITCH
DEDICATED
FUSE
DEDICATED
FUSE
A/C COMPRESSOR
RELAY
REFRIGERANT
TEMPERATURE SWITCH
A/C COMPRESSOR AND
MAGNETIC CLUTCH
ENGINE-ECU
C-60
FULLY AUTOMATIC AIR CONDITIONER (CONTINUED)
