ENGINE – Oil Pan
11-14
REMOVAL SERVICE POINT

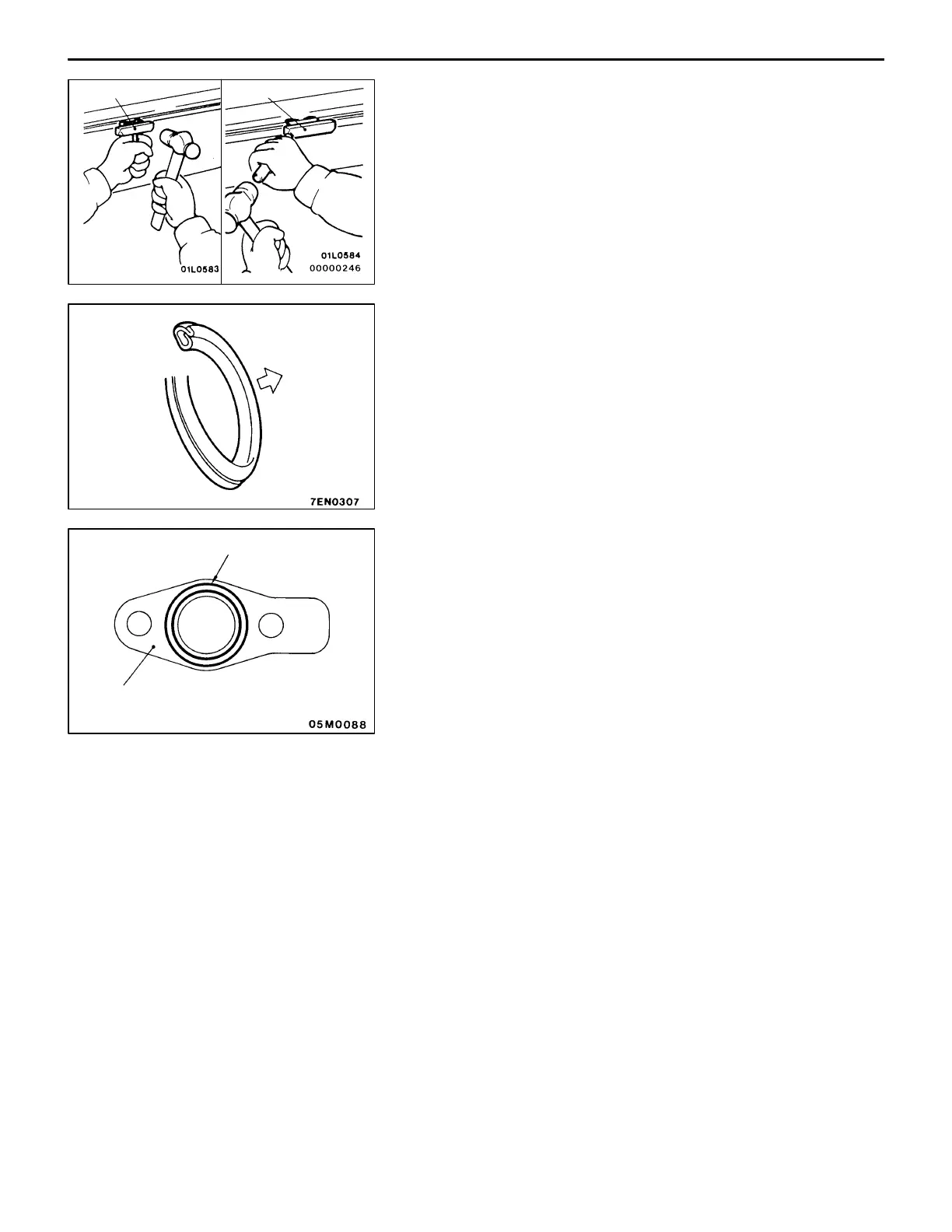

AA" OIL PAN REMOVAL
INSTALLATION SERVICE POINTS
"AA DRAIN PLUG GASKET INSTALLATION
Install the drain plug gasket in the direction so that it faces
as shown in the illustration.
"BA OIL RETURN PIPE GASKET INSTALLATION
Install the gasket with the printed portion toward the oil pan.
MD998727
MD998727
Drain plug gasket
Oil pan side
Gasket
Printed portion
