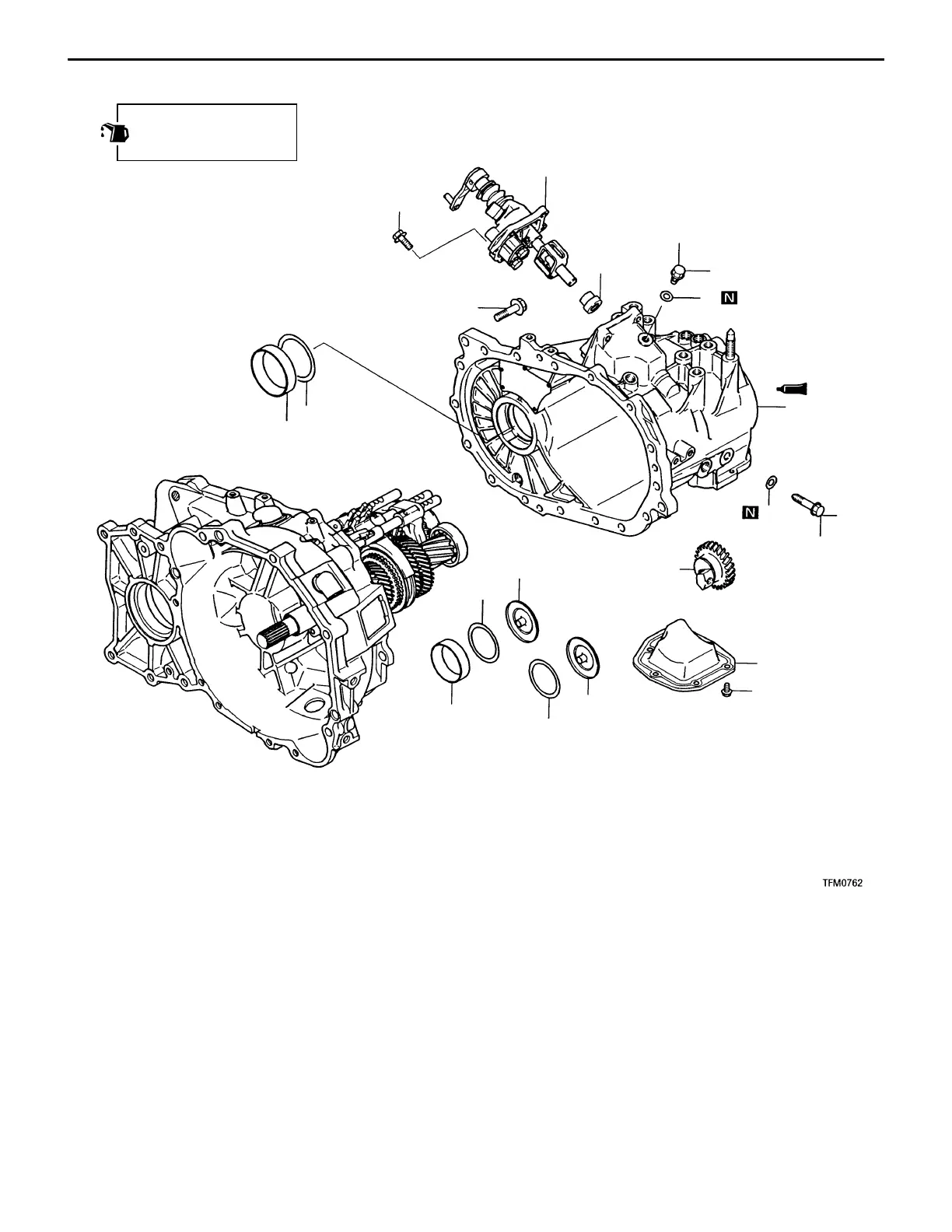

MANUAL TRANSMISSION OVERHAUL – Transmission
22B-14
Apply gear oil to all
moving parts before
installation.
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Unit: Nm {kgf@m}
18 {1.9}
30 {3.1}
48 {4.9}
3.9 {0.7}
44 {4.5}
Disassembly steps
12. Interlock plate bolt
13. Gasket
"GA 14. Control housing
15. Neutral return spring
"FA 16. Under cover
17. Reverse idler gear shaft bolt
18. Gasket
19. Reverse idler gear
"EA 20. Transmission case
21. Outer race
22. Outer race
"DA 23. Spacer
"DA 24. Spacer
"DA 25. Spacer
26. Oil guide
27. Oil guide
