Mitsubishi LANCER EVOLUTION-V 1998 User Manual

MANUAL TRANSMISSION OVERHAUL – Transmission
22B-15
Apply gear oil to all
moving parts before
installation.
28
29
30
31
32
33
34
35
36
37
38
39
40

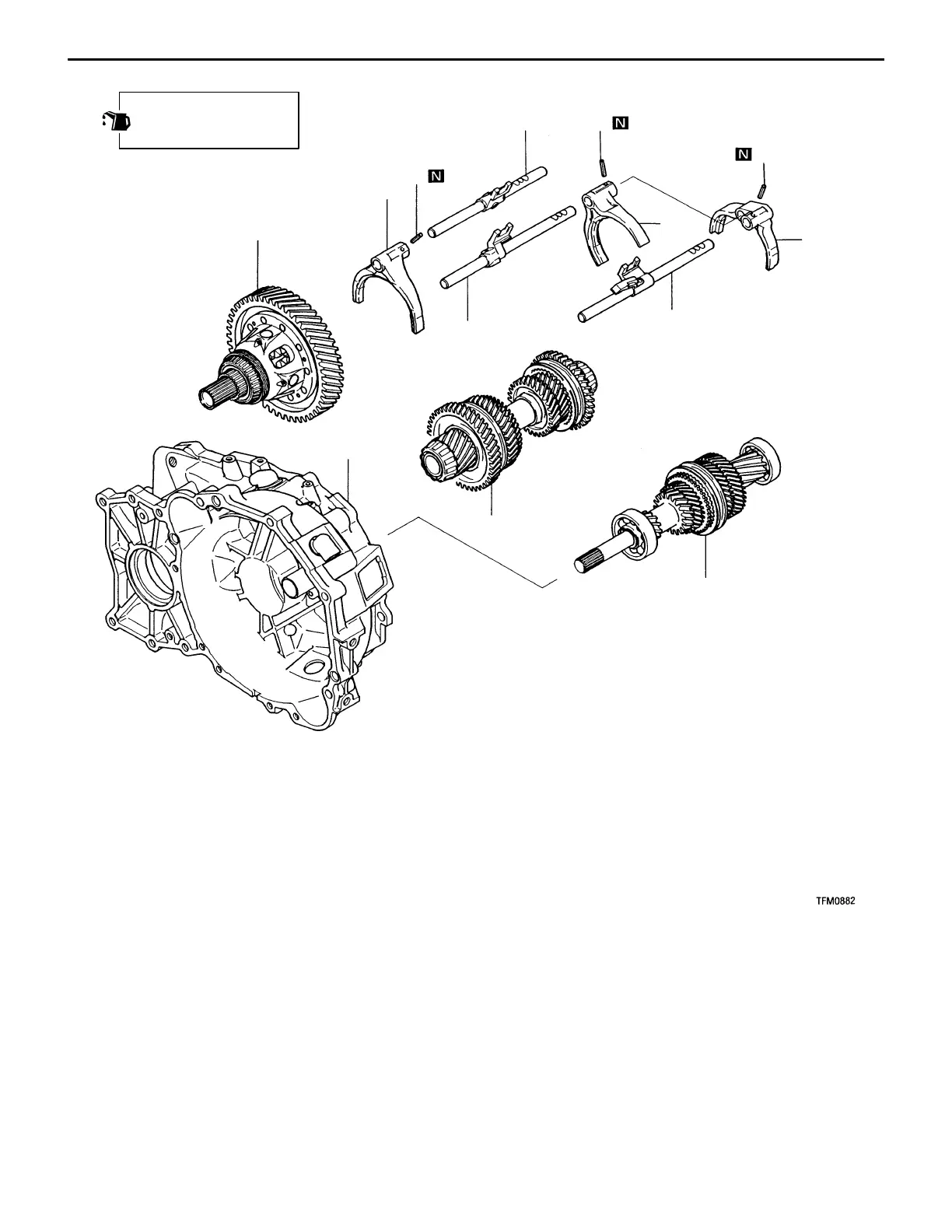

Disassembly steps
"CA 28. Spring pin
29. 1st-2nd speed shift rail
30. 1st-2nd speed shift fork
"CA 31. Spring pin
AA""CA 32. Spring pin
AB""BA 33. 3rd-4th speed shift rail
AB""BA 34. 3rd-4th speed shift fork
AB""BA 35. 5th-reverse speed shift rail
AB""BA 36. 5th-reverse speed shift fork
AC""AA 37. Center differential
AC""AA 38. Output shaft
AC""AA 39. Input shaft
40. Clutch housing
