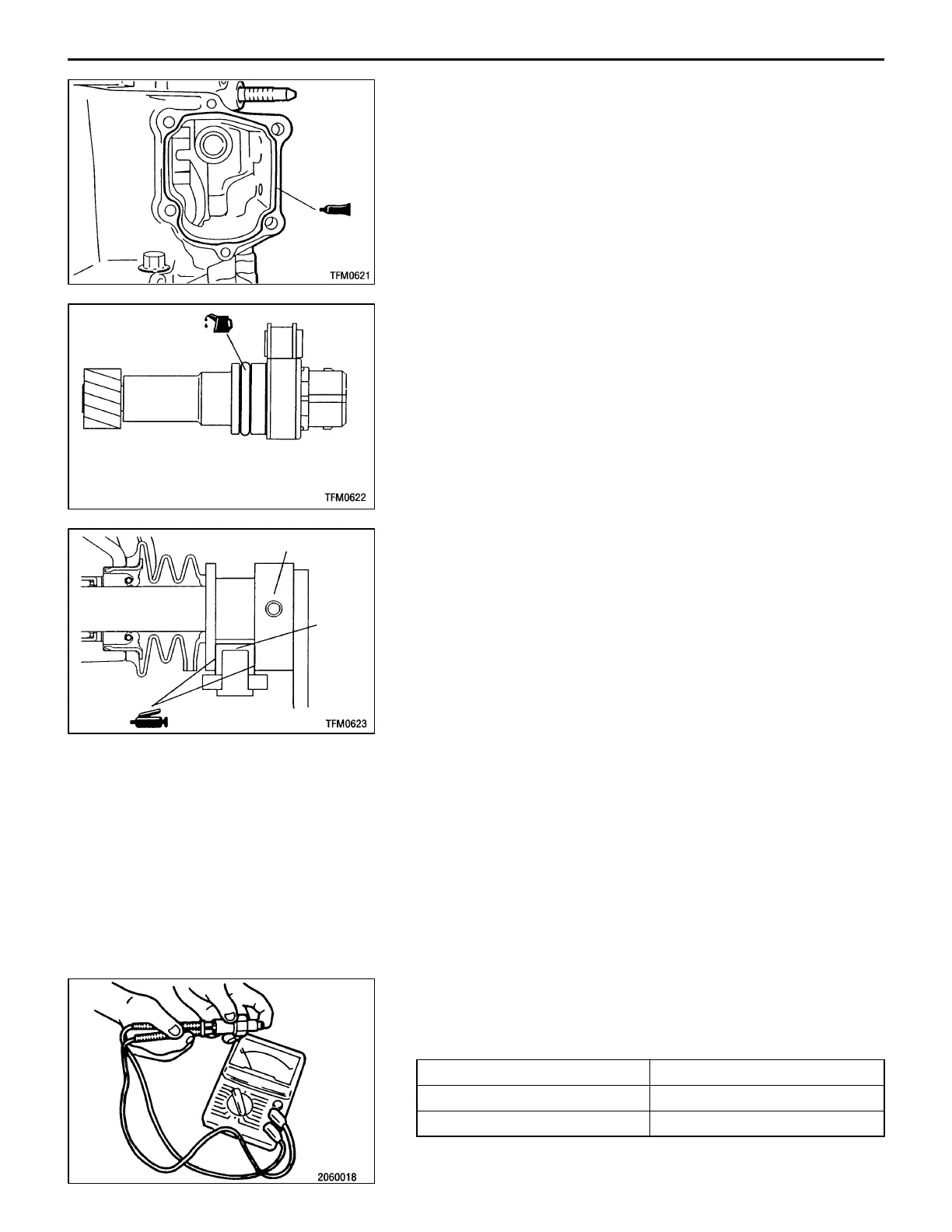

MANUAL TRANSMISSION OVERHAUL – Transmission
22B-19
"GA CONTROL HOUSING INSTALLATION
Apply sealant to the illustrated position of the transmission
case.
Specified sealant: THREEBOND 1216
Caution
Squeeze out the sealant uniformly, while making sure
that it is not broken or excessively applied.
"HA SPEEDOMETER GEAR INSTALLATION
Apply transmission oil to the O-ring of the speedometer gear.
Transmission oil: DIA QUEEN MULTI-GEAR OIL 75W/85W
"IA SELECT LEVER INSTALLATION
Apply grease to the control shaft sliding portion of the select
lever shoe.
Specified grease: MOLYWHITE TA No.1 or No.2
"JA O-RING INSTALLATION
Lubricate O-ring with transmission oil.
Transmission oil: DIA QUEEN MULTI-GEAR OIL 75W/85W
INSPECTION
BACK-UP LAMP SWITCH
Check for continuity between terminals.
Switch condition Continuity
Pressed Not exist
Released Exists
f 2 mm
Control shaft
Select
lever
shoe
To Next Page
