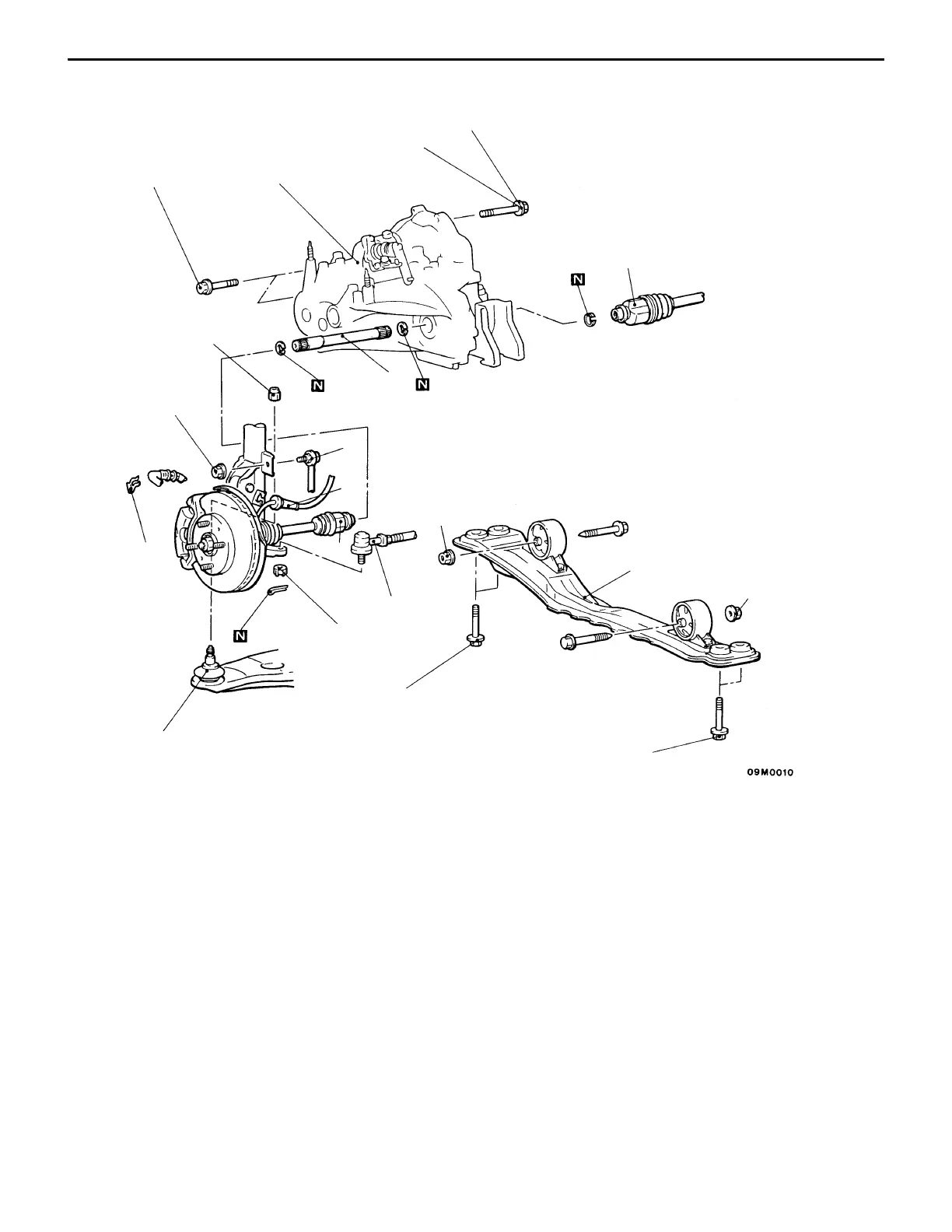

MANUAL TRANSMISSION – Transmission Assembly
22A-8
16
18
Unit: Nm {kgf@m}
52 {5.3}*
19
17
9
10
12
13
15
12
14
69 {7.0}
69 {7.0}
15 – 33
{1.5 – 3.4}
39 {4.0}
59 – 71
{6.0 – 7.2}
26 – 33
{2.7 – 3.4}
48 {4.9}
52 {5.3}*
Lifting up of the vehicle
9. Stabilizer bar connection
10. Wheel speed sensor cable connec-
tion <Vehicles with ABS>
11. Brake hose clamp
12. Tie rod end connection
13. Lower arm ball joint connection
AA"DClutch release bearing connection
14. Centermember assembly
AB" 15. Drive shaft <LH> connection
AB" 16. Drive shaft <RH> connection
D Strut assembly <LH>
(Refer to GROUP 33A.)
AC" 17. Output shaft
D Air hose A
(Refer to GROUP 15 – Intercooler.)
18. Transmission assembly lower part
coupling bolts
19. Transmission assembly
Caution
Mounting locations marked by * should be
provisionally tightened, and then fully tightened
when the body is supporting the full weight of the
engine.
