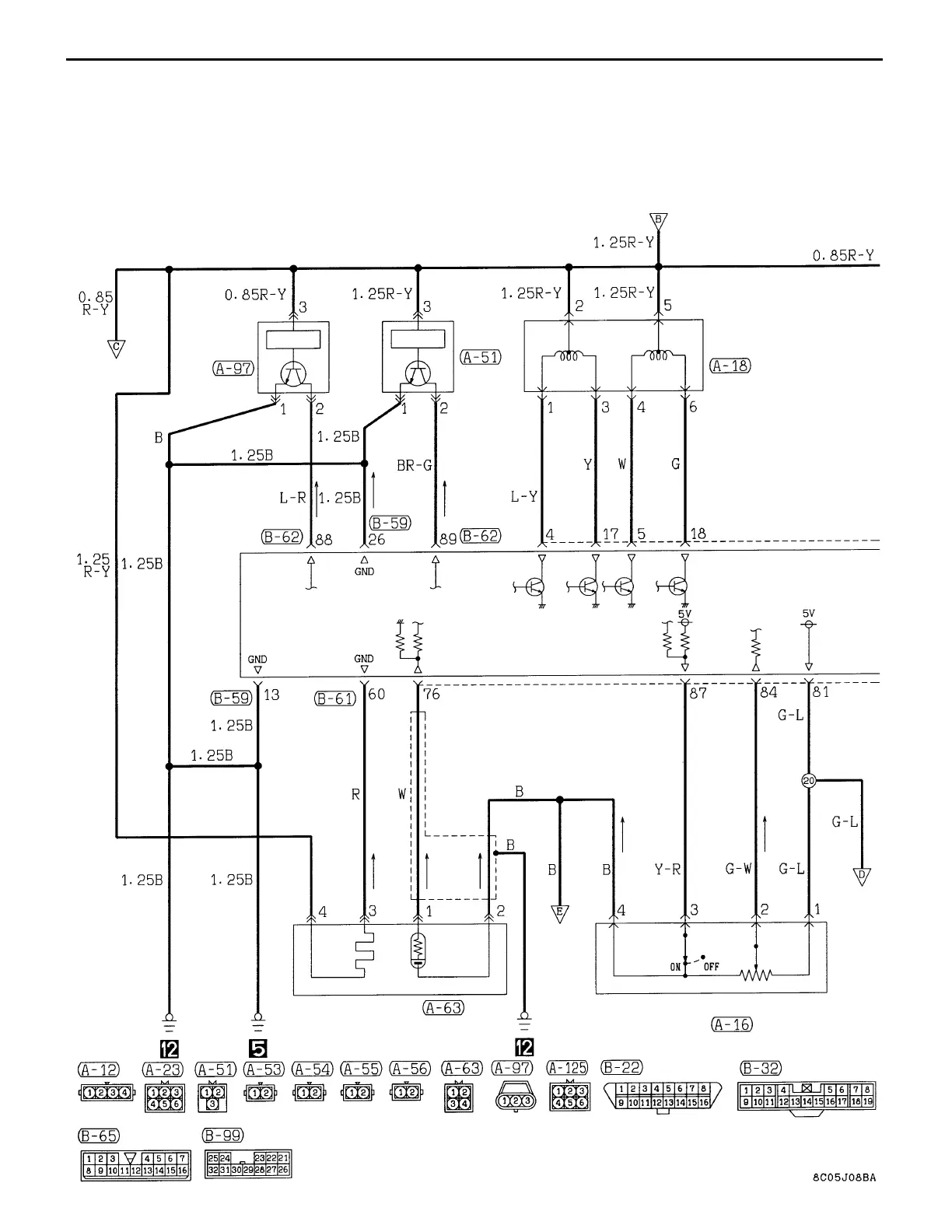

CIRCUIT DIAGRAM – Engine Control System
ENGINE
CONTROL
RELAY
CAMSHAFT
POSITION
SENSOR
CRANK
ANGLE
SENSOR
IDLE SPEED
CONTROL
SERVO
ENGINE-
ECU
O
2
SENSOR
IDLE
SWITCH
THROTTLE POSITION SENSOR
FRONT VIEW
FRONT VIEW
C-30
ENGINE CONTROL SYSTEM (CONTINUED)
